| US$10,000.00-30,000.00 | 1 Piece (MOQ) |

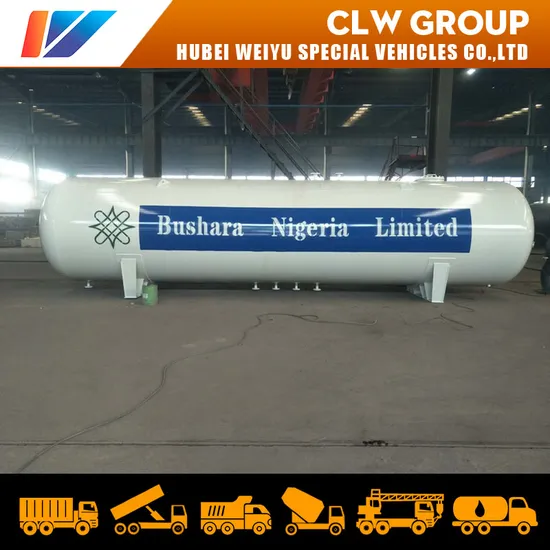

| Specification of 40CBM LPG Tank | ||||
| Volume of Tank | 40CBM/40,000Liters | |||
| Filling Weight | 15960kg | |||
| Tank Weight | 9020kg | |||
| Thickness of Shell (mm) | 12 mm | |||
| Thickness ofHead (mm) | 14 mm | |||
| Tank Diameter (mm) | 2150 mm | |||
| External Dimensions (mm) (length x width x height) | 11408 x 2174 x 2534mm | |||
| Material of Tank and Main Pressure Parts | Carbon Steel Q345R | |||
| Filling Medium | Liquefied Petroleum Gas ( Propane) | |||
| Design Pressure | 17.7Bar | |||
| Corrosion Allowance | 1 mm | |||
| Medium Density | 420~590 kg/ cbm | |||
| Color & Logo | Customised for you requests | |||
| Main accessories:Cut-off Valve, Needle Valve, Safety Valve, Liquid level meter, Pressure gauge, Temperature Gauge. | ||||
| List Of Safety Accessories | ||||
| Model | Item | Qty | Junction surface | |
| J41N-2.5-50 | Stop Valve DN50 | 6 | RF | |
| J41N-2.5-25 | Stop Valve DN25 | 2 | RF | |
| J41N-2.5-80 | Stop Valve DN80 | 1 | RF | |
| J24W-320-DN6 | J24W Needle Valve M20*1.5 | 1 | ||
| HG21584-95 | Magnetic plate level Gauge UZFAL-2.5RF-3040-0.5 | 1 | RF | |
| A42F-25-100 | Safety Valve DN80 | 1 | RF | |
| Y-100T | Pressure Gauge M20*1.5 1.5degree 0~4Mpa | 1 | ||
| WTQ-280 | Thermometer M33*2 2.5 degree | 1 | 40ºC~60ºC | |
| Nozzle data | |||||
| Characters | Size | Pressure(MPa) | Connect | Junction surface | Purpose |
| a | DN50 | 25 | HG20592-WN | RF | Drain outlet |
| b | DN50 | 25 | HG20592-WN | RF | Liquid phase outlet |
| c1-2 | DN50 | 25 | HG20592-WN | RF | Gaseous phase balanced outlet |
| d | DN50 | 25 | HG20592-WN | RF | Liquid inlet |
| e | M33*2 | Screw-thread | Thermometer connection | ||
| f1-2 | DN25 | 25 | HG20592-WN | RF | Lever gauge connection |
| g | M20*1.5 | Screw-thread | Pressure Gage | ||
| h | DN100 | 25 | HG20592-WN | RF | Safety valve connection |
| i | DN50 | 25 | HG20592-WN | RF | Emptying mouth |
| j | DN450 | 25 | HG20592-WN | FM | Manhole |
