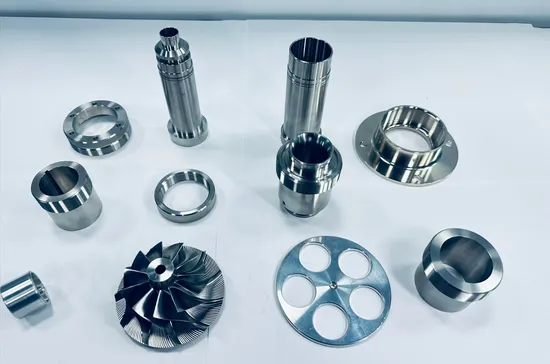

| Custom CNC Machining Parts | |
| Quotation | according to customer drawing |
| Material Standard | JIS, ASTM, GB, ATS, DIN or other customer required |
| Material | Brass, Aluminimum, PBT GF30, ABS, POM, PEEK, Ceramic, SST, Steel, Ti Alloy |
| Processing | Material Saving: Hot Forging Investment Casting Die Casting Extrusion Process: CNC Turning/Lathing, CNC Milling, CNC 5 Axis, NC Swiss Machining/ automatic Lathing( OD <=32mm) Measuring: Calipers, Screw Gauges, Height Gauges, Other Gauges, 2.5D Profile, CMM from Zesis |
| Surface Treatment | Following ISO Standard thickness measuring, salt spray testing, cross hatching testing etc ROHS. REACH report and declaration for surface treatment and related material Process: Electrical Nickel Plating, Chemical Nickel Plating Zinc Plating, Tin Plating, Chrome Plating Glass Bead Blasting, Ultrosonic Cleaning Anodizing Electrical / Chemical Polishing Powder Coating |
| Tolerance | +/-0.005mm |
| Quality Committment | "0' Deviation comparing to Drawing, 100% Visual Inspection & Critical Dimention, No Scratches, No Burrs, No Oils Fully Dimension Check according to AQL rate Repetable and long time stable supplying with PPAP for each PN Repeatable and Same as Approved Golden sample |
| Production Capacity | Consignment stock Arrangement with Customer Stable delivery from hundreds to hundred thousands Samping 10-30 days, Batch production 20-45 days |
| Packaging | Molded Foam Plastic to separate the parts Sealed Plastic with Desiccant to ensure no corrision Crate box, Pallets or wooden box |
| Documentation | PPAP Level 3, ROHS REACH, Inspection Report, Surface treatment report, material certification report |
| Delivery | EXW, FOB, Golable delivery with DAP,DDP,CIF, |
