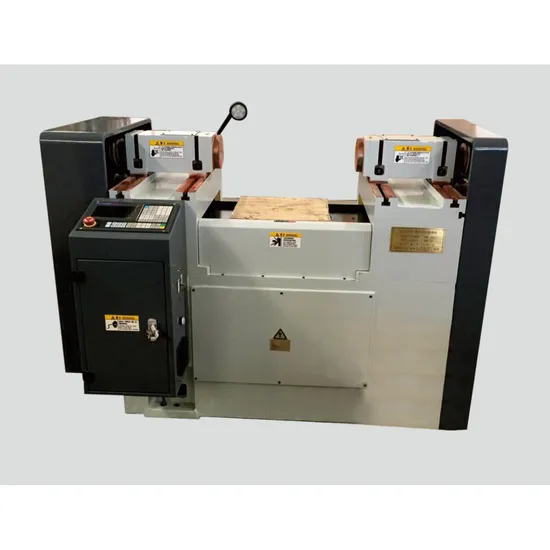

CNC Horizntal Fine Boring Machine, Used for Boring The Single Hole.

Product Description

Product Description
Application of machine:
This machine is used for boring the single hole,stepped hole,muKihole,hole group, the circular hole and the slot.lt also can be used for turning the face,counter bore the hole and chamfer the comer,The bored parts are provided with the higher precision in the size,position and shape,also the repuired surface roughness.lt is available for the line machining of hole in the large production batch.
Features:
1.The machine can move longitudinally with the higher precision for positioning.lt is specially suitable for boring the deep holes with high precision.
2.The machine is controlled by CNC system,with high reliability, convenient programming and flexible operation Product Parameters

MainspecificationsTKJ7140/GTKJ7040/G
	Table size(LxW)	500x400mm	500x400mm
	Supplied boring head	2xKXT65	1xKXT65
	Boring diameter	φ8- φ80	φ8- φ80
	standard speed of boring head	1120rpm	1120rpm
	Distance between two axis of the boring heads	240mm	240mm
	Min.distance between two axes of the boring heads	155mm	155mm
	Distance between two spindle seats	670mm
	Max.travel of the table in longitudinal direction	400mm	400mm
	Rapid feed speed of the table	3m/min	3m/min
	Mainmotorpower/speed	2.2kw/1430rpm	2.2kw/1430rpm
	Driven motor of longitudinal motion(keeping torque)	7.84Nm	7.84Nm
	Total power	5.2kw	5.2kw
	The positioning accuracy for the axial of linear movement	0.04mm	0.04mm
	The repositioning accuracy for the axial of linear movemen	0.02mm	0.02mm
	The opposite deviation for the axial of linear movemen	0.015mm	0.015mm
	Roundness of fine boring	0.005mm	0.005mm
	Overall dimensions	170x124x96cm/1460kg	170x124x96cm/1660kg
	Packing dimensions/gross weight	170x145x155cm/1800kg	170x145x155cm/2000kg
