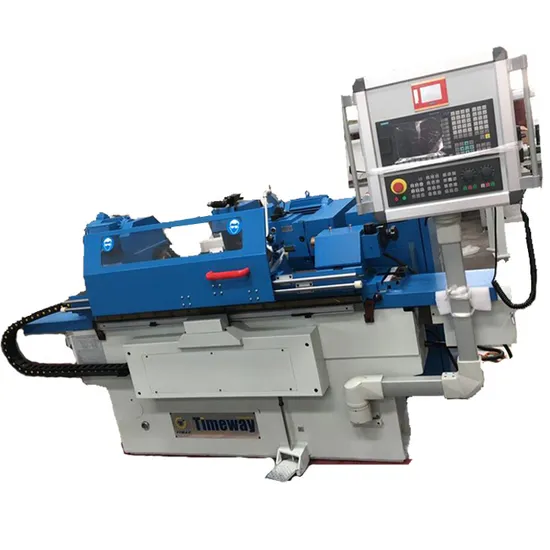

Mke1432 High Precision CNC Cylindrical Grinding Machine

Product Description

	MKE1420x500	MKE1420x800	MKE1432x1000	MKE1432x1500	MKE1432x2000
Height of center mm	135	135	180	180	180
Max grinding diameter(without steady rest) mm	200	200	320	320	320
Max grinding diameter(with steady rest) mm	60	60	60	60	150
Min grinding diameter mm	8	8	8	8	15
Max grinding length mm	500	800	1000	1500	2000
internal grinding diameter range(with steady diameter) mm	10-90	10-90	35-100	35-100	35-100
internal grinding diameter range (without steady rest) mm	13-100	13-100	30-100	30-100	30-100
Max grinding depth mm	125	125	125	125	125
Headstock taper	MT4	MT4	MT4	MT4	MT4
Max. workpiece weight kg	50	50	150	150	150
tailstock taper	MT4	MT4	MT4	MT4	MT4
Tailstock spindle stroke	28	28	28	28	28
Min grinding wheel feed mm	0.001	0.001	0.001	0.001	0.001
Headstock swivel range	±30°	±30°	±30°	±30°	±30°
Grinding spindle speeds rpm	1670	1670	1670	1670	1670
Chuck diameter mm	200	200	200	200	200
Worktable swivel range	-5°~+9°	-3°~+7°	-3°~+7°	-3°~+6°	-2°~+5°
Table feed m/min	0.05-5	0.05-5	0.05-5	0.05-5	0.05-5
out disc diameter mm	400x50x203 280x50x203(min)	400x50x203 280x50x203(min)	400x50x203 280x50x203(min)	400x50x203 280x50x203(min)	400x50x203 280x50x203(min)
Circumferential speeds m/sec	35	35	35	35	34.2
Work spindle speeds rpm	25-380	25-380	25-380	25-380	25-380
Grinding head trvel mm	200	200	246	246	246
Feed per hand-wheel rotation on wheelhead mm	0.1mm	0.1mm	0.1mm	0.1mm	0.1mm
Travers per graduation on wheelhead mm	0.001mm	0.001mm	0.001mm	0.001mm	0.001mm
Max. angle of table swivel	-5°~+9°	-3°~+7°	-3°~+7°	-3°~+6°	-2°~+5°
Max. inner disc diameter mm	50*40*16	50*40*16	50*40*16	50*40*16	50*40*16
Min. inner disc diameter mm	45*35*10	45*35*10	45*35*10	45*35*10	45*35*10
total drive capacity KW	12.6	12.6	17	17	18
Motor rating-grinding spindle/hydraulic pump KW	4/0.75	4/0.75	5.5/0.75	5.5/0.75	7.5/0.75
Motor rating of headstock /coolant pump KW	0.75/0.13	0.75/0.13	1.5/0.13	1.5/0.13	1.5/0.13
Motor rating of grinding head moving KW	10Nm	10Nm	15Nm	15Nm	15Nm
Motor rating of worktable moving KW	10Nm	10Nm	15Nm	15Nm	22Nm
diamensions (LxWxH) mm	2500x1600x1700	3100x1600x1700	3400x2000x2000	4300x2000x2000	5400x2000x2000
weight kg	2300	2700	3700	4300	6200

STANDAD ACCESSORIES:
(complete set of electrical equipment),
(Coolant tank),
()(wheel periphery dresser base with diamond pen),
(wheel flange and wheel exactor),
(standard grinding wheel),
(wheel balancing arbor),
(leveling wedge),
(working lamp),
(open steady rest),
SIMENS 808D SYSTEM
OPTIONAL ACCESSORIES
(wheel balance stand):
(magnetic separator):
(Coolant tank with paper filter):
(Coolant with magnetic separator and paper filter):
(close steady rest) :
(Radius wheel dresser):
(End wheel dresser):
