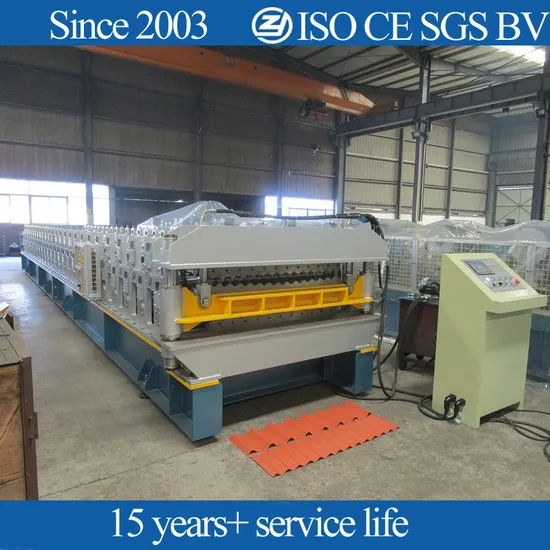

Factory Price Aluminum Galvanized Coils Color Steel Metal Trapezoidal Glazed Roof/Wall Panel Double Layer/Deck Cold Roll Forming Machine

Product Description

Factory Lifetime Service! Factory price aluminum galvanized coils color steel metal trapezoidal glazed roof/wall panel double layer/deck cold roll forming machine
Our Advantages
1. Lifetime seivices
2. Introduced Mitsubishi PLC with touch screen to machine controll system.
3. One worker operation (minimum)
4. Lifetime>10years: roller cover with 0.05mm chrome
72mm diameter solid steel shaft
Cutting blade with heat treatment.
5. Cr12 mould steel cutter with quenched treatment.
6. Product cut-to-length.
8.Technician overseas installing and training available

Product Parameters

Item		Specification
Material	Type	Pre-painted steel coil & galvanized coils
	Thickness(mm)	0.2-0.7
	Yield strength(mpa)	235-345
Roller material		45#Chrome steel
Forming speed(m/min)		About 30-35
Speed adjusting mode		AC Frequency
Roller drive		Decelerating motor + Chain drive
Cutting mode		Hydraulic cutting
Cutter material		Cr12 mov. mould steel
Length measurement		Encoder
Control mode		Mitsubishi PLC
Operating mode		Button + Mitsubishi Touch screen
Main motor power(kw)		7.5 KW
Total power(kw)		9.7 KW
Components of double layer forming machine
Decoiler		1set
Feeding & guiding device		1set
Main roll forming machine		1set
Hydraulic cutting system		1set
Controlling system		1set
Output Table		1set
Process flow
Decoiler -- Feeding & Guiding -- Roll forming---Hydraulic Cutting - Output Table

Hot Product
Company Profile
22+ years history in Metal roll forming machine industry
25+ years experienced engineers
Focus on machine quality with reasonable price
59 sets processing equipment, including in 12 sets CNC tooling machines.
Experienced technician can be sent to install machines abroad
100+ sets of machines exported each year
70+ countries using Zhongyuan Machines
Zhongyuan Machinery Factory is much experienced manufacturer of metal forming machinery with ISO quality system. " All-in-house source" - from raw material to the final high-precision roll forming machine,all done in Zhongyuan machinery factory. So that we can control our made roll forming machines quality and delivery time of roll forming machines. Our R&D department is staffed with senior engineers who have 25 years experience in metal forming machine industry.
Zhongyuan company has built a competitive cost advantage through the model of trying large-scale manufacturing and centralized procurement. In the past, present and future, as a well-known metal forming equipment manufacturer in China, Zhongyuan has always been customer-centric, strives for survival by quality, insists on the selection of high-standard raw materials and high-quality accessories, and implements strict process standards and quality standards. To ensure the safety and reliability of product performance, and continue to provide our customers and friends with highly cost-effective products and services.
