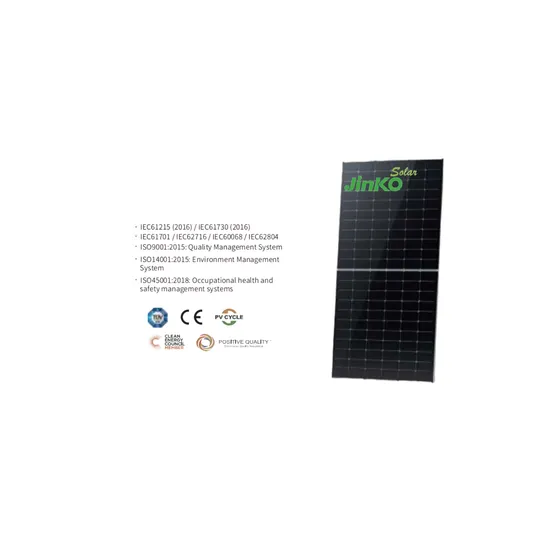

610W 585W 600W Jinko Solar Panel N Type Monocrystalline Solar Panels
| Cell Type | N-type Mono-crystalline |
| No.of cells | 144(72×2) |
| Dimensions | 2383×1134×30 mm |
| Weight | 32.4kg |
| FrontGlass | 3.2mm,Anti-Reflection Coating, HighTransmission, Low lron, Tempered Glass |
| Junction Box | IP68 Rated |
| Protection Class | Class II |
| IEC Fire Type | Class C |
| Pallet Dimensions | 2308×1120×1249 mm |
| Packing Detail | 36 pcs/pallets,72 pcs/stack |
| Maximum Power-Pmax | 600w |
| Maximum PowerVoltage | 40.16v |
| Maximum PowerCurrent | 14.94A |
| Open-circuit Voltage | 48.28v |
| Short-circuit Current | 15.84A |
| Module Efficiency STC | 22.21 |
| PowerTolerance | 0~+3% |
| Temperature Coefficients of Pmax | -0.29 %/ºC |
| Temperature Coefficients ofVoc | -0.25 %/ºC |
| Maximum Power - Pmax | 453W |
| Maximum Power Voltage | 37.6V |
| Maximum Power Current- | 12.05A |
| Open-circuitvoltage | 45.86V |
| Short-circuit Current | 12.79A |
| Operating Temperature | -40ºC~+85ºC |
| Maximum System Voltage | 1000/1500VDC(IEC) |
| Maximum Series Fuse Rating | 35A |
| Nominal Operating Cell Temperature-NOCT | 45±2ºC |
| Certificate | IEC61215 (2016) / IEC61730 (2016) · IEC61701 / IEC62716 / IEC60068 / IEC62804 · ISO9001:2015: Quality Management System · ISO14001:2015: Environment Management System · ISO45001:2018: Occupational health and safety management systems |
