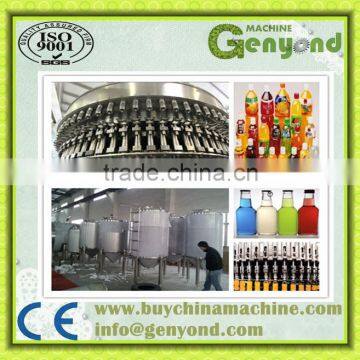

Fruit juice production line
1.Whole solution for fruit juice production line
2.High degree automatization
3.Save worker
Juice Drinks Introduction
Use fruit power or jam and other raw materials,production processes through the deployment of reduced juice drinks. By comparison with fresh fruit peeled, Juice production processes raw fruit production line. With the feature of less investment, small footprint, easy to manage, quick etc.
Juice Beverages
1.Apple juice 2.Strawberry pulp juice 3. Rosa roxburghii tratt juice drinks 4.Pear fruit drinks 5.Red grape juice 6.Hawthorn juice 7.Seabuckthorn beverage 8.Kiwi fruit drinks 9.Shaddock juice drinks 10.Watermelon juice drinks 11.mango juice drinks 12.Carrot juice drinks 13.Bamboo shoot juice drinks 14.Peach juice drinks 15.Winter melon juice drinks
Working Process
Material - Deployment of constant volume - Filter - Homogeneous-UHT-Filling - Capping - Light inspection - Cold bottle - Dry - Coding - Packing palletizing - Storage
Preparation of juice process is as follows:
Pulp type (cloudy juice)
Raw material → washing → (peeled) → crushing → softening → multi- effect concentration beating → high temperature instant sterilization-Aseptic filling
Juice Type
Raw material → washing → (peeled) → crushing → Enzymatic clarification → Filter → high temperature instant sterilization-Aseptic filling
Drink fruit juice process is as follows:
Juice concentrate → Miniaturization → Mix → Degassing → Homogeneous → UHT → Filling&Sealing
Production Technical Patameters
| Name | Machine |
| Washer | Spraying/brush washer |
| Selector | Rolls Selector |
| Sorter | Automatic Sorter |
| Juice extractor | Bowl juice extractor |
| Separator | Horizontal/disc centrifuge |
| Evaporator | Fall film multi-effect evaporator |
| Sterilization machine | Pipe sterilization machine |
| Filling machine | Aspetic filling machine |
More pictures
Company Profile
Shanghai Genyond Technology Co., Ltd.
Shanghai Genyond Technology Co., Ltd. is a manufacturer of extracting unit and fruit & vegetable processing line with well-equipped testing facilities and strong technical force.With a wide range, good quality, reasonable prices and stylish designs, our products are extensively used in food and beverage and other industries.Our products are widely recognized and trusted by users and can meet continuously changing economic and social needs.We welcome new and old customers from all walks of life to contact us for future business relationships and mutual success!
