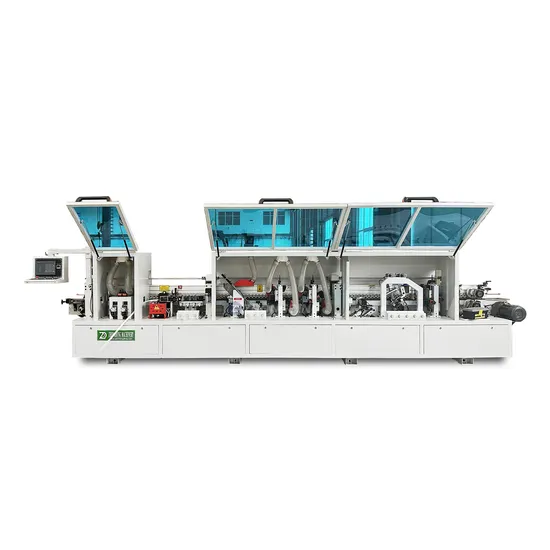

Automatic Woodworking Trimming PVC MDF Edge Bander Straight Edge Banding Machine for Furniture Making with CE Hot Sale

US$5,900.00-10,200.00 1 Set (MOQ)

Basic Info.

Model NO.
ZD800/700/600/500
Type
Straight Line
Edging thickness
0.4-3mm
Automatic Grade
Automatic
Panel Feeding Speed
13m/min
Certification
CE, ISO
Panel Thinkness
10-60mm
Min.length panel
120mm
Min.width panel
50mm
Manufacturing Principles
Glue Tank Underneath
Customized
Customized
After-sales Service
1 Year
Product Name
Straight Edge Banding Machine
Width of Banding
10-60mm
Overall Dimension
6440*950*1500mm
Net Weight
1900kgs
Feeding Speed
13m/Min
Thickness of Workpiece
10-60mm
Thickness of Banding
0.4-3mm
Transport Package
Exported Standard
Specification
6440*950*1500 mm
Trademark
QDZD
Origin
China
HS Code
84659900
Production Capacity
500 Set/Year

Product Description

Product Description
ZD800:
ZD700:
zd600:
ZD500:
The wood working straight edge banding machine is suitable for straight edge banding and trimming of medium density fiberboard, blockboard, solid wood board, particle board, polymer door panel, plywood, etc. It can cut the double-sided glued edge banding, glue the edge banding, pre-milling , gluing , end trimming , rough trimming , fine trimming , corner rounding , scraping , buffing , etc. The edge banding is delicate, smooth, feels good, and the sealing line is straight and smooth. The equipment is stable, reliable, durable, and moderately priced, and is particularly suitable for manufacturers of large and medium-sized furniture, cabinets and other panel furniture.
Detailed Photos
Basic function: pre-milling → gluing → end trimming → rough trimming → fine trimming → corner rounding → scraping → buffing
Customized option: pre-milling, corner rounding, seperation device , cleaning, length , slotting , rapid sol-gel , six wheel pressure sticker , double glue pot , double polishing , narrow edge auxiliary feeding.Customize features according to your needs
Pre-milling:
The pre-milling system corrects the plate-type workpiece before pressing the film . The pre-milling device uses double milling cutters to modify the ripple marks caused by the cutting board saw processing to achieve a better edge banding effect.
Gluing:
The glue pot adopts imported special ball bearing and high hardness and super wear-resistant material glue box, the glue lifting shaft is patented design, CNC processing, to ensure the glue output, uniform daub, the glue surface hit 99.999% , the glue thickness can be controlled at will.

End trimming:
The end trimming system is used to cut off the cutting components of the front and rear edge tape . The end trimming device moves through precise linear guides , adopts automatic profiling and high-frequency electrode rapid cutting mechanisms to ensure that the cut surface is flat and smooth.
Rough/fine trimming:
Rough and fine trimming devices are used for trimming and processing the excess edge banding material on the upper and lower parts of the sheet edge banding. It adopts the structure of automatic profiling and high-frequency high-speed motor, etc. To ensure the smoothness of the upper and lower parts of the trimmed board edge.

Corner rounding: Corner rounding mechanism with two high precision tracking motors to ensure high tracking speed and high trimming speed. The profile tracking system component is used to match the sun coated film to the jade star on the workpiece during the transportation process and cut (outline) the edges and corners.It can make the end surface of the table more smooth and beautiful.
Scraping:
The scrapping is used to eliminate the ripple marks caused by the cutting process of the non-linear motion of the trimming, so that the upper and lower parts of the sapwood are smoother and cleaner, and the edges are scraped. Updated scraping mechanism with bigger unit and big copy wheel and V shape blade to get better effect.
Buffing:
The buffing component polishes the edge and removes the sol residue on the workpiece. The polishing device uses a cotton polishing wheel to clean the processed plate. The edge-sealing end surface is smoother through polishing. The polishing component used for the upper surface of the workpiece is fixed on the workpiece.

Our Advantages

Screen Control Panel:
Touch screen is made from Delta(Taiwan) brand PLC control system and operation panel.
AUTONICS(Korea) brand temperature controller,high flexiable shielded cable,output stability.
Electrical Components:
Homag(Germany) brand original driver,double protection and never hurt board.
Delta(Taiwan) brand inverter,power-off protecton.
Product Parameters
Name Edge banding machine
Model ZD800
Thickness of banding 0.4-3mm
Width of banding 10-60mm
Thickness of workpiece 10-60mm
Heating power 1.5kw
Feeding motor power 2.2kw
Overall dimension 6440*950*1500mm

Company Profile
Qingdao Zhongding Machinery Co., Ltd. is a company specializing in the production and export of woodworking machinery. It can provide customers with professional woodworking machinery products. The company has professional technology, a full set of testing lines and 4 professional woodworking machinery production lines.
The company has established a complete sales system and the products have been sold to many countries and regions in the world, such as Europe, Russia, Southeast Asia, the Middle East, North America, and Australia. The company adheres to the tenet of "quality first, customer first", strictly implements quality management, actively develops and manufactures new products, and provides comprehensive pre-sales and after-sales services.
Certifications

Our Customers
FAQ
1. Do you offer installation?
Our machines are almost assembled before loading in container. It is very easy for installation in your workshop. Video guidance and English manual can be provided freely. Engineers can be sent to service in site if the buyer request.
2. Where can we get replacement parts?Most of the spare parts are ready in stock. They will be sent to the buyer directly from our warehouse with original prices.
3. How long can we get replacement parts?
Common spare parts can be delivered by express within one week. Some parts can be purchased locally.
4. What technical support do you offer?
1. Technical support by phone, email or WhatsApp around the clock.
2. Friendly English version manual and operation video.
3. Engineer available to service machinery overseas.
5. Do you have any machines in our country?Our machines have been exported to lots of countries and regions, such as Europe, Russia, Southeast Asia, Middle East and so on. Bring our products and services for more than 66 countries people and customers.6. Can you customized the machine?
Our machines can be customized made according to buyers' request.
7. What other machine do you offer?
We provide one-stop shop service of woodworking machines for the buyers. Other kinds of woodworking machines, like sliding table saw,CNC beam saw machine, wood drilling machine, CNC router ,vacuum laminating machine, sanding machine, hot press machine and so on can be provided as well.
8. Can you set the system to our language?
Our system supports common languages like Chinese , English , Español , Português , Français , Русский язык , Italiano , Deutsch , Nederlands and so on .
