Water Area Monitoring Multi-Sensor System/Radar/Upgraded Version/Radar Detector

Product Description

Water Area Monitoring Multi-sensor System
The multi-dimensional joint perception system for water monitoring is a comprehensive water monitoring system that uses monitoring radar, automatic identification of ships (AIS), optical video, and unmanned aerial vehicles as the main perception methods. It has the functions of detecting, identifying, and tracking small targets in complex water environments, as well as radar guided optical equipment tracking, photography and evidence collection, and alarm. Using multi-dimensional data fusion, image recognition, and AI intelligent algorithms to identify illegal fishing, illegal fishing, illegal sand mining, maritime smuggling, and illegal immigration, the system realizes automatic machine search and discovery, automatic alarm, and automatic evidence collection. This system can be applied in fields such as smart fishery administration, smart fishing ports, smart sand control, smart coastal defense, offshore oil and gas fields, offshore wind power plants, bridge collision prevention, etc.
Centers Mobile Platform
performance

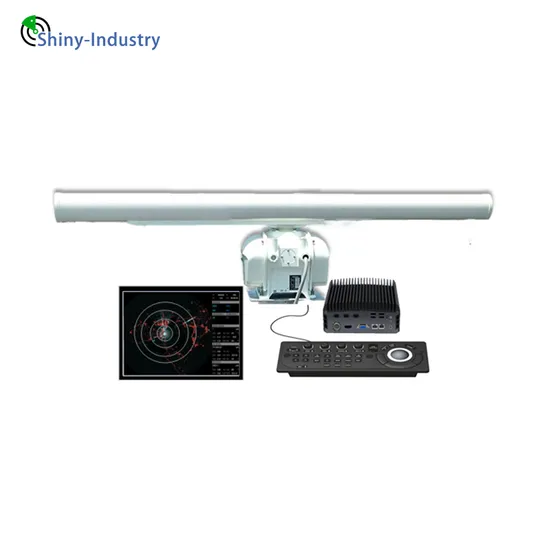

LW-R25-SG solid-state pulse compression water monitoring radar. This radar is a technological upgrade based on the LW-R25-SC model, with main technical indicators superior to the original model. This radar adopts advanced technologies such as solid-state transmitter, digital signal processing, multi waveform pulse compression, and STC, and has the characteristics of long detection range, small blind spot in close range detection, high tracking accuracy, and accurate target tracking. It can be applied in fields such as smart fishery administration, smart fishing ports, smart ports, and smart border defense.
Technical Parameter

project	index
Operating Frequency	9370±160MHz
peak power	≥150w
power	12.0km (RCS>1 m², height 2m, Pd=0.8, Pf=10-6) 20.0km (RCS>10m, height 2m, Pd=0.8, Pf=10-6) 60km (RCS 21000 m², height 10m, Pd=0.8, Pf=10-6)
resolution ratio	≤200m
positioning accuracy	Distance resolution: ≤ 15m Speed resolution: ≤ 1m/s
power	Distance accuracy (root mean square): ≤ 8m Azimuth accuracy (root mean square): ≤ 0.3
reliability	300W

---
