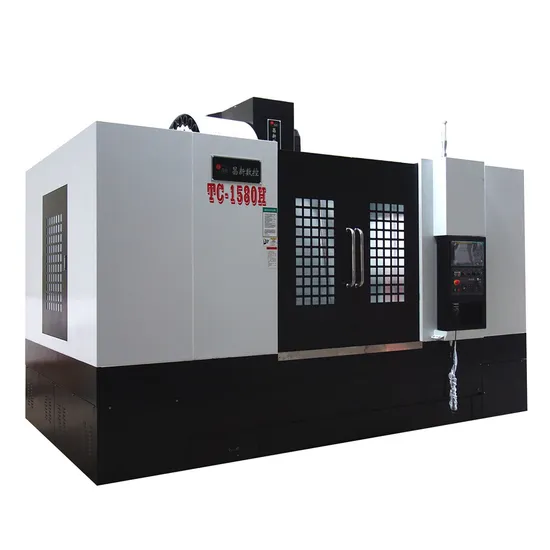

Vmc1580 CNC Machining Center/Good Quality Vmc CNC Milling Machine (TC-1580)
| Machine Body | Chansin Casting three linear guide ways high-strength body |
| Spindle | original import Taiwan WLT / TD, 8000 rpm ,belt connection |
| System | Original Japan imported control system the latest version Mitsubishi M80A |
| Spindle motor | Imported Japan Mitsubishi servo motor 20KW |
| Three-axis motor | Imported Japan Mitsubishi servo motor |
| Automatic lubrication system | pressurized volumetric automatic oiler, automatic balance distribution of lubricants
(joint venture Baoteng brand oiler) |
| Head balance system | The body comes with a counterweight balancing system |
| High pressure chip system | high pressure motor, high pressure flushing (joint venture Sinaer brand water pump) |
| Screw | original Taiwan imported Hiwin screw |
| Spindle cooling | plus independent oil cooling system (joint venture Ruike brand oil cooler) |
| Tool Magazine | Taiwan Sanjie arm type with 24 BT40 tools capacity |
| Controller | standard Mitsubishi M80A color display |
| X, Y, Z bearings | standard German FAG or Japan NSK |
| Triaxial roller screw | standard Taiwan Taiwan Hiwin / PMI |
| Spindle Knife cylinder | Standard Taiwan North Kui / Hao Cheng |
| Couplings | Standard Germany BK3 SW*J |
| Wind system combined with solenoid valve (triple) | standard joint venture Ogreut |
| The main electrical accessories | standard Germany Schneider, Merlin Gerin |
| Other air pressure components | standard joint venture Ogreut |
| Circuit breakers, relays | standard Germany Schneider, Merlin Gerin |
| Electric box air fan | standard joint venture FuRuize |
| Transformer | standard joint venture AoHengda |
| Work LED lamp | standard Taiwan Ou Si |
| Hand control electronic hand wheel | standard Taiwan NEMICON |
| Three-axis telescopic shield | standard joint venture Zhenfei |
| Full cover | standard joint venture Jiancheng |
Payment:40% deposit,the balance will be paid before shipping.
20-30 days after received the deposit payment.
1.Warranty:One year free warranty and life time maintenance.
3.Engineers are available to serve overseas, you are responsible for the air tickets and accommodations expenses. The price above is not including this expenses.
