US$750.00-3,000.00
|
1 Piece
(MOQ)
|
Basic Info.
Carrying Capacity
Weight Level
Certification
CE, ISO 9001
Dimension(L*W*H)
3295*3011*3700mm
Max.Hook Load
2250-4500kn
Od of Guidinig Sheave
1270-1524mm
Transport Package
Wooden Box
Production Capacity
500sets Per Year
Product Description

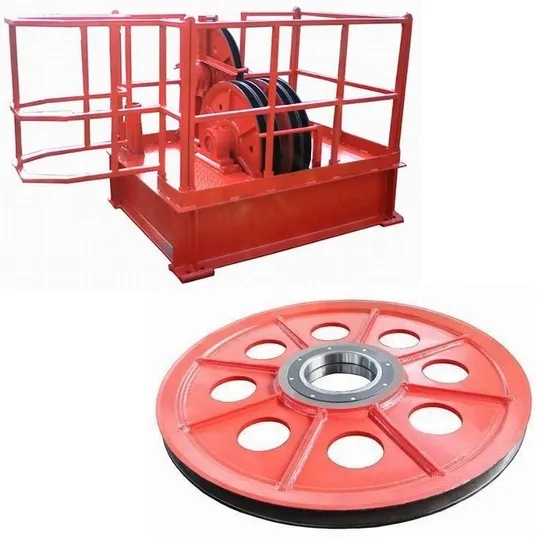

Our company produces forged welding Sheaves for petroleum machinery, strictly following the requirements of API Spec 8C. The components adopt forging technology, and the welding process uses industrial automatic welding machines to ensure welding performance. The rope groove area uses medium frequency quenching technology to improve hardness and improve service life.
API8C Sheave Selection Table |
Items | Size | Rope Dia.(mm) | Bearing Model | Sheave Inner HoleDia. (mm) | Weight(kg)
|
1 | ф 1524 | ф35(R18.7) | 37941K | ф276.225 | 425 |
2 | ф 1524 | ф35(R18.7) | 37951K | ф347.662 | 398 |
3 | ф 1524 | ф38(R20.4) | 37961K | ф393.7 | 390 |
4 | ф 1524 | ф38(R20.4) | 37951K | ф347.662 | 410 |
5 | ф 1524 | ф38(R20.4) | 37971K | ф444.5 | 425 |
6 | ф 1524 | ф45(R24) | 37971K | ф444.5 | 375 |
7 | ф 1270 | ф32(R16.9) | 37941K | ф276.225 | 330 |
8 | ф 1270 | ф35(R18.7) | 37951K | ф347.662 | 315 |
9 | ф 1270 | ф35(R18.7) | 2097952K | ф360 | 298 |
10 | ф 1120 | ф32(R16.9) | 2097938E | ф260 | 245 |
11 | ф 1120 | ф29(R15.5) | 2097938E | ф260 | 245 |
12 | ф 1120 | ф32(R16.9) | 37941K | ф276.225 | 230 |
13 | ф 1120 | ф32(R16.9) | 2097952K | ф360 | 215 |
14 | ф 915 | ф26(R13.5) | * | ф210 | 190 |
15 | ф 915 | ф29(R15.5) | * | ф210 | 185 |
16 | ф 915 | ф32(R16.9) | * | ф260 | 185 |
17 | ф 915 | ф29(R15.5) | * | ф260 | 190 |
18 | ф 915 | ф29(R15.5) | * | ф250 | 195 |
19 | ф 760 | ф26(R13.5) | * | ф250 | 165 |
20 | ф 760 | ф29(R15.5) | * | ф250 | 160 |
21 | ф 760 | ф26(R13.5) | * | ф210 | 150 |
22 | ф 760 | ф29(R15.5) | * | ф210 | 150 |
23 | ф 760 | ф32(R16.9) | * | ф250 | 135 |
24 | ф 760 | ф22(R12) | * | ф210 | 140 |
25 | ф 610 | ф14.5(R7.5) | * | ф180 | 60 |
26 | ф 610 | ф26(R13.5) | * | ф210 | 60 |
27 | ф 610 | ф22(R12) | * | ф210 | 60 |
28 | ф 610 | ф22(R12) | * | ф180 | 62 |
29 | ф 610 | ф16(R8.5) | * | ф210 | 65 |
30 | ф 500 | ф16(R8.5) | * | ф125 | 48 |
31 | ф 500 | ф22(R12) | * | ф180 | 50 |
32 | ф 500 | ф16(R8.5) | * | ф180 | 48 |
33 | ф 500 | ф19(R10) | * | ф125 | 50 |
34 | ф 500 | ф14.5(R7.5) | * | ф125 | 50 |
35 | ф 500 | ф14.5(R7.5) | * | ф180 | 48 |
36 | ф 400 | ф19(R10) | * | ф125 | 36 |
Q:How can I place order?
A: You can contact us by email or social media like WhatsApp on the order detail or place order on line.
Q:How about the payment?
A: For new clients, advance payment(30%-100% of total amount) is required, the balance need to be paid before the delivery after your inspection.
Q:How can I pay you?
A: By T/T (Telegraphic Transfer) or L/C (Letter of Credit). After you receive the PI, you can make the payment through your bank as per the terms mentioned in PI.
Q: What's the order procedure?
A: First we discuss order details, production details by email ,TM or other social media; then we issue you an PI for your confirmation. You will be requested to make full payment or deposit before we go into production.After we get the deposit, we start to process the order. Depending on the products you order, we usually a couple of days or even moths to complete production if we don't have the items in stock. Before production has been finished, we will contact you for shipment details, and the balance payment. After payment has been settled, we shall arrange the shipment for you.
Q: How do you deal with defective products received by the clients?
A: If there are some defective items, we usually credit to our customer or replace them in next shipment.
>>
