US$900.00-3,000.00
|
1 Piece
(MOQ)
|
Basic Info.
Product Name
Lifting Electromagnet
Conductor/Coil
Aluminum or Copper
Magnet Application
for Handling Scraps, Irons, Ingots, Steel Material
Machine Weight
490~9000 Kgs
Cable Reel Type
Spring Drive, Motor Drive, etc.
Transport Package
Wooden Cases or According to Customer Request
Specification
Can be customized
Production Capacity
100 Sets/Month
Packaging & Delivery
Package Size
90.00cm * 90.00cm * 80.00cm
Package Gross Weight
760.000kg
Product Description
Product Description

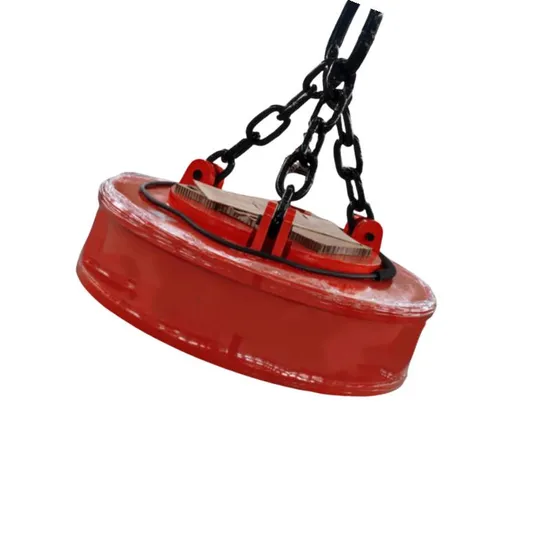

Heavy-Duty Lifting & Excavator Magnet Attachments
Product Description
1, Installation flatness of electromagnetic suction cup: 0.01 measured on 300 mm length, 0.005 allowed for every 300 mm increase.
2, The parallelism of the electromagnetic suction cup workbench to the mounting surface: measured on the 300 mm length, it is 0.02, and 0.01 will be increased every 300.
3, The common rectangular electromagnetic chuck mainly uses the magnetic worktable of the plain grinder, which is mainly used to hold the magnetic conductive workpiece for medium strength grinding. It can also be used for EDM machine tools, tool grinders, etc.
4, The electromagnetic chuck has good positioning function for some workpieces that are not easy to be clamped. The upper plane of the electromagnetic chuck and the joint surface of the workpiece should be smooth, so that the workpiece can be firmly absorbed to ensure the safety of the grinding process
5, It is connected with the grinder through the charging and demagnetizing controller, and the charging and demagnetizing are carried out through the button operation, which is very convenient to use.
6, improve the grinding efficiency by more than 80%.
Product Parameters
Lifting electromagnetic chuck, also known as lifting electromagnet, electromagnetic jack, is mainly used for lifting and
transporting magnetic conductive materials such as steel in metallurgy, mining, machinery, transportation and other industries. It is also used as an electromagnetic manipulator to hold magnetic materials such as steel, and is suitable for handling cast iron ingots, steel balls and various scrap steels. The excitation mode can be adopted: constant voltage mode, strong excitation mode and over-excitation mode.
1. Strong power, strong suction, can carry 1-5 tons of weight.
2. The operation is simple, the mobility is good, and the transfer site does not need to be disassembled.
3. It is not limited by the site and can be directly installed on the excavator for use.
4. It can be matched with the excavator and will not damage the original pipeline.
Model | Diameter(MM)
| Current(A) | Power(KW) | Lifting capacity (cold/hot) (KG) | Weight(KG) | Excavator (T) |
Steel ball | Steel block | Iron filings |
XS-70L | 700 | 15 | 3.3 | 2500 | 380/200 | 120/100 | 500 | 3-5 |
XS-80L | 800 | 18 | 3.96 | 3000 | 480/250 | 150/130 | 600 | 5-8 |
XS-90L | 900 | 26.6 | 5.85 | 4500 | 600/400 | 250/200 | 760 | 10-12 |
XS-110L | 1100 | 35 | 7.7 | 6500 | 1000/800 | 450/400 | 900 | 12-15 |
XS-120L | 1200 | 45.5 | 10 | 7500 | 1300/1000 | 600/500 | 1300 | 18-20 |
XS-130L | 1300 | 54 | 11.9 | 8500 | 1400/1100 | 700/600 | 1700 | 20-25 |
XS-150L | 1500 | 71.2 | 15.6 | 11000 | 1900/1500 | 1100/900 | 2400 | 25-35 |
XS-165L | 1650 | 75 | 16.5 | 12500 | 2300/1800 | 1300/1100 | 2700 | 30-35 |
XS-180L | 1800 | 102.4 | 22.5 | 14500 | 2750/2100 | 1600/1350 | 3500 | |
XS-210L | 2100 | 129 | 28.4 | 21000 | 3500/2800 | 2200/1850 | 4800 | |
XS-240L | 2400 | 154 | 33.69 | 26000 | 4800/3800 | 2850/2250 | 9000 | |
Company Profile
Yang zhou Xinshi Machinery Co., Ltd. is a professional excavator attachments manufacturer in China which was found in 2016 has a lot of experience in construction machinery attachments producing
Our products include hydraulic breaker hammer, hydraulic grabs, hydraulic shear, quick hitch, pile hammer, Hydraulic pulverizer, Hydraulic cylinders, mini excavator, various types of excavator buckets, etc
We sincerely look forward to establishing stable, long-term and strategic partnerships with new and existing customers around the world, with an eye on our bright future and mutual cooperation.
Main Products
Product Applications
Packaging & Shipping
FAQ
Q: Are you a manufacturer?
A: Yes, our factory was established in 2016.
Q: Are you sure your product will fit my excavator?
A: Our equipments are suitable for most excavators. Show us your excavator model, we'll confirm the solution.
Q: How about your products warranty?
A: 12 months warranty for our products
Q: Can you produce according to customer's design?
A: Sure, OEM service available. We are a professional excavator attachments manufacturer in China.
Q: What's the MOQ ?
A: MOQ of excavator attachments is 1set.
Q: How about delivery time?
A: 7-25 work days after the payment
Q: How about the package?
A: Our equipments wrapped by stretch film packed by pallet or poly wood case or as requested.
Q: Which country have you exported?
A:United States Canada, Australia, Saudi Arabia, Korea, Peru, Egypt, Brazil, Mexico, South Africa etc.
>>
