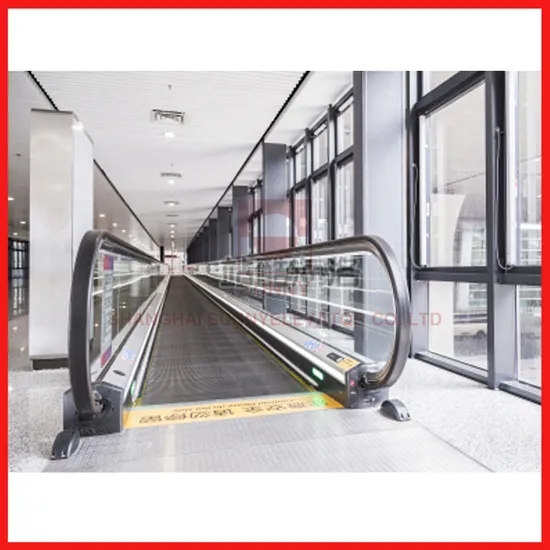

0° Moving Walk for Large Passenger Elevator

US$7,000.00-12,000.00 1 Set (MOQ)

Basic Info.

Model NO.
MOVING WALK
Type
Heavy
Load Capacity
6750 Persons/H
Use of Occasions
Public Traffic
Speed
0.5M/S
Slope Angle
0-6°
Width of Stair
800mm
Cascade Level
Two
Driving Type
Screw Type Elevator
Railing Form
EX-P
Step Road Linetype
Spiral
Motor Capacity
8kw
Rated Current
18A
Pedal Width
1000mm
Product Name
Moving Walk
Transport Package
Container
Trademark
Sunny
Origin
China
Production Capacity
500set/Year

Product Description

0° Moving Walk for Large Passenger Elevator
Pedal width 1000 800
Quantity of cender support bearm L4 6000 10000 6000 10000
Support opposite force(KN) R1 40 38 35 34
R2 34.5 34 32 31
R3 62.5 78.5 52 64.5
R4 63.5 79.4 54 66.6
R5 48 79.4 40 66.6
Motor capacity/rated current conveyor length conveyor length
10000-70000 8KW/18A 10000-80000 8KW/18A
70001-110000 11KW/25A 80001-110000 11KW/25A
Technical notes
Dip angle 0-6°
Speed V 0.5m/s
Pedal type aluminum alloy(indoor/half outdoor/complete outdoor)
Pedal width A 1000 800
Handrail center distance B 1238 1038
Moving walk outside width C 1600 1400
Machine supporting beam length D ≥1660 ≥1460
Installation place/drive mode Length L1
Indoor/star delta 4000 4000
Indoor/frequency
Semi-outdoor/star detal 4600
Semi-outdoor/frequency 4600
Outdoor/star delta 4000
Outdoor/frequency 4600
Power supply
User needs to supply 380V 50Hz three-phase five-wire power supply. Voltage should≤10 when moving walk at the start and the voltage should be ≤5 in normal operation. Maximum starting current should less than 3.5 times of rated current.

0° Moving walk construction layout drawing
Features
1. Safe and reliable
Our passenger elevator puts safety the first place, to ensure each passenger's safe delivery to destination.
2. Space configurability
From the view of space saving, Our passenger elevator make new layout of machiine room, improved the space availability.
3. Energy saving and environment friendly
Our passenger elevator adopts gearless permanent magnet synchronous machine to save energy and protect environment.
4. High performance
Our passenger elevator is euipped with stable control system. Intelligent lift dispatching system provides the best solution for customer riding.
5. Free custom-made
Customers can choose their favorite and customized apperance for their own elevators.
Our factory
Delivery
About us
Why choose us?
Shanghai Sunny Elevator Co., Ltd, founded in 1992, is a 32-year professional manufacturer specializing in designing and producting Opto-Electro-Mechanical products.
Sunny Elevator has started import and export since 2012.
We have experience in exporting all kinds of elevator parts and complete elevator to 80 countries all over the world.
FAQ
1. Are the elevator wire ropes durable?
The elevator wire rope has special provisions and requirements. Configuration is not only for wire rope and rated load, but also considered the size of the traction, as a result, the tensile strength of wire rope is greater than the weight of the lift. The safety factor is equipped with more than four wire rope. So it won't break at the same time.
2. Is it dangerous for power failure suddenly during the elevator running?
If it occurs, the elevator will automatically stop due to the electrical and mechanical safety device. In case of power failure,elevator brakes will automatically taken. In addition, the power supply departments such as planned outage, prior notice are also operating.
3. Will us be hurt when it closed suddenly?
In the closing process, if people touch the hall door, the door of elevator will automatically restart without any danger. With anti clamping switch, once the gate touched, this switching action make the elevator unable to be closed and even reopened. In addition, closing force is also available here.
4. How the elevator running?
Elevators are operated with a counterweight wire rope through the (tractor) traction drive, making ups and downs on the guide rail.
5. Is the escalator installation complicated?
We believe the functions of an escalator are not necessarily proportional to the operation complexity. Therefore, escalators designed by us apply an integrated structure, so that the equipment is more precise and more efficient and allows easier and more convenient commissioning.
6. Do you have any cerifications?
Yes, we do with ISO9001 / CCC / CE Certificates for u.
