US$2,500.00-4,000.00
|
1 Set
(MOQ)
|
Basic Info.
Model NO.
rci-701p underground pipeline locator
Usage
Network Cable Tester, Audio Cable Tester, Coaxial Cable Tester, Digital Cable Tester
Customized
Non-Customized
Function
GPS,Blooth,Cable Indentification
Output Frequency
640Hz, 1280Hz, 8kHz, 33kHz, 82kHz,197kHz
Power Frequency
50Hz/60Hz,250Hz/300Hz
Power Supply
4 X Built-in 18650 Li-on Batteries
Volume
Transmitter 270X220X85mm
Weight
Transmitter 2.2kgs
Cable Indentification
Test Depth
Transport Package
Export Standard Cartons with Strong Pallets
Production Capacity
100PCS /Week
Packaging & Delivery
Package Size
55.00cm * 30.00cm * 90.00cm
Package Gross Weight
30.000kg
Product Description

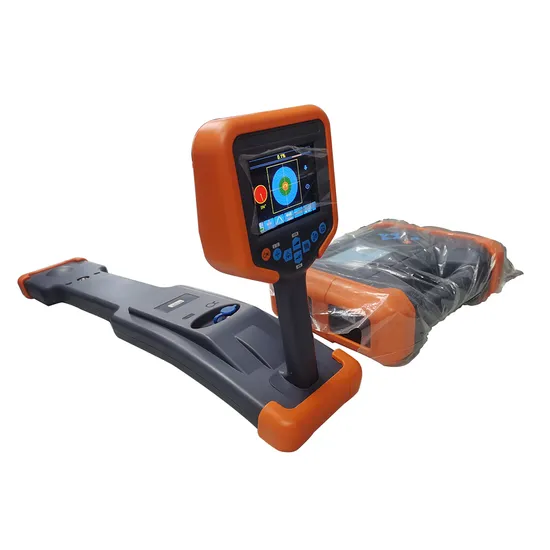

1.TIANJIN GREWIN GPS Bluetooth Underground Cable Fault Locator Pipeline underground metal detector underground cable fault locator detector for testing underground cable faults
1.1Transmitter Output mode:
direct connection mode, clamp coupling mode, radiation mode, booster mode. Output frequency:640Hz,1280Hz,8kHz,33kHz,82kHz,197kHz. Output power: 15W Max, 10 levels adjustable.
Impedance matching: full automatic.
Over voltage and over current protection: full automatic.
Human-machine interface: 320×240
matrix color LCD.
Power: Built-in Lithium battery group, nominal 7.4V, > 6AH Charger
input: AC100-240V, 50/60Hz.
Charger output: DC8.4V, 2A.
1.2 Receiver mode:
direct connection mode, clamp coupling mode, radiation mode, booster mode. Detection mode: wide peak, narrow peak, valley value, historical curve, frequency spectrum.
Active frequency:640Hz,1280Hz,8kHz,33kHz,82kHz,197kHz.If the qty is bigger, then we can customize the frequency base on customers' needs.
1.3 Passive frequency:
Power frequency and harmonics, radio frequency Human-machine
interface: 320×240 dot matrix color LCD,
sunlight visible. Built-in lithium ion battery pack,
nominal 7.4V, > 3Ah.
Charger input: AC100-240V, 50/60Hz.
Usage: | Application: |
Route tracing Depth measurement Construction pipeline survey | Cable (live and dead cable) Metallic pipeline Nonmetallic pipeline |
01)Metal Detector pictures:
NON METALLIC PIPE DETECTION SONDE (OPTIONAL FUNCTION)
02)Function features:
02.1)Color compass display:Underground pipelines penetration,infra-field multiple underground pipelines display Real-time tracing correct/error indication to suppress interference from the nearby pipelines Enhanced precision depth measurement: real-time depth measurement Depth measurement auxiliary sensor: interference indication Enhanced passive detection: Multiple pipelines can be displayed simultaneously High performance transmitting clamp: running cable coupling signal transmitting Flexible clamp unique identification: convenient and highly reliable High power digital amplifier transmission, automatic impedance matching, automatic protection High sensitivity, 2Hz ultra-low bandwidth receiving, high anti-interference Transmitting and receiving all digital process,stable and reliable
IP65 02.2)Optional extension function modules: L1/L5 high-precision GPS module: positioning, distance measurement
Internal storage module: 256 pieces of detection data can be stored Bluetooth communication module: upload detection data to the host station. Magnetic filed detection mode:PCM method erosion resistant coating broken detection Optional accessories: Depth measurement auxiliary sensor: interference indication during depth measurement Output booster and A frame: pinpoint the pipeline broken points Output sonde:signal transmitting used for nonmetallic pipeline route tracing
03).PIPE LOCATOR SPECIFICATION: 2. TDR DISTANCE PRELOCATOR PCLC-906D The PCLC-906D Power Cable Fault locator is an easy operation device used for distance locating . It's easy to operate,support both touch screen/button operation and with friendly interface. Low voltage pulse mode (TDR ) can be used independently; In impulse current mode (ICM), it needs to be used with HVSG-500GN series high voltage signal generator; In the multiple impulse mode(MIM) must also be tested with PCLC-900C cable multiple impulse filter coordination; After the distance measurement is completed, the PCLD-904P series digital multifunctional cable fault pin-pointer shall be used for accurate point pinpointing. Together, they form a high-performance cable fault finding system that offers a variety of innovative features. SPECIFICATION:
No | Cable Fault | Representation | Testing method |
1 | Low resistance /short circuit fault | Tramegger value :0 Multimeter value:< 200Ω | Low Voltage Impulse method |
2 | Break fault | Conductor disconnection | Low Voltage Impulse method |
3 | High resistance fault | Tramegger :0 Or: Tramegger :0 Multimeter:≥200Ω | Impulse current method or Multiple impulse method |
4 | Flashover fault | Megohm meter measurement: normal insulation level Voltage withstand test: failed |
Main menu | Sub-menu |
Mode | The working mode is automatically identified by the access cable. There is no sub- menu in the mode. |
Range | 25m,50m,100m,200m,400m,800m,1.5km,3km,6km,12km,25km,50km,100km |
VOP | Cross-linked cable, oil-immersed paper, plastic cable, rubber cable, wave speed increase, wave speed reduction |
Scale | Full extent, zoom in, zoom in, Max |
Copy /both | Zone 1 temporary storage, ZONE 2 temporary storage, zone 3 temporary storage, Zone 1 both, ZONE 2 both, zone 3 both |
Docu. | Docu., internal ,USB, I ->U disk, recall |
Operate | Location,Auto test, Screen setting, Screen correction |
Below is old type:PCLC-901D and also can produce if you're interesting in this model.
3.CABLE FAULT PINPOINTER:PCLD-904P
4. HIGH VOLTAGE SIGNAL GENERATOR :HVSG-500GN-4 2000J 4UF
5. PCLC-900C PICTURE: 6. GWOL-668N 6-35kV overhead line fault detection and location 6-35kV GWOL-668N overhead line fault detection and location
It integrates five functions: fault diagnosis, AC location, DC location, AC voltage withstand test, and DC voltage withstand test.
Protection
| Overheat protection,over-current protection, under-voltage shutdown, automatic discharge; Automatically power off without operation for 2 hours.
|
Work mode
| Fault diagnosis, AC location, DC location, AC voltage withstand test, and DC voltage withstand test
|
Company introduction:
1.certification
We have passed ISO9001:2015,CE,SGS approval and IEC report
2.Company profile
Tianjin Grewin is concentrating on transformers for 20 Years and complianted by ISO9001:2015,CB,IEC CB,CE etc.We're always pay great attention to its business philosophy "Quality and Honesty First".Grewin is specialized in the design and manufacture of wound components such as transformer,current sensors, chokes etc .windely used in communications,electronics,meters,industrial control,medical equipments and other fields.We are also a provider of power meters and instruments locators. 85% of its products exported to America, Europe, and Asia etc.We sincerely invite you to join us to create a bright future. 3.Terms of Shipment:
Within 10 working days after received related prepayment or L/C.
4.Payment terms:
(1)T/T 100% or 50% deposit by T/T in advance, balance amount to be paid 7 days before
delivery.
(2) By irrevocable L/C at sight, to be issued immediately against confirmed order.
(3)Payment by T/T, if order amount is less than USD 20,000.
5.Warranty:
(1)We provide 1 year warranty.
(2)If the product is defective, please notify us within 3 days of delivery.
(3)All products must be returned on their original condition, in order to qualify for a refund or exchange of goods
6.Why choose us?
Quality and honest first!
A. Flexible service for diffierent transformers with high efficiency performance.
B. Over 40 years experience of transformer designing and producing.
C.100% test of every single product we produce from incoming material checking.
D. UL, CE, ISO9001:2008
E. We offer custom-made transformers, OEM and ODM are welcome
F. We deliver the quality you expect at consistently competitive prices
G.Transformer quality lifetime:10 Years.
H.Specialty Sales service:5 -10 Years
7.Flow chart of trading activities:
NO | Step | Days need |
1 | Request for quotation | 1 day |
2 | Making quotations | 1 day |
3 | Offer and counter offer | 3 days |
4 | Sending and receiving samples | 3-10 days |
5 | Sample confirmation | 3 days |
6 | Placing a firm order | 1 day |
7 | Paying and receiving the down payment | 1-4 day |
8 | Factory production & Quality inspection | 15-20 days |
9 | Paying and receiving the balance | 4 days |
10 | Delivery of goods | 1 days |
