US$1.00-2.00
|
1 Piece
(MOQ)
|
Basic Info.
Temperature Range
-20degree Celsius~135degree Celsius
Spray Angle
360-Degree Pattern,180-Degree
Surface Treatment
Mirror Polished and Dull Polishe
Construction
Rotary, Fixed,Double Rotary
Fluxation (M3/H)
12~38m3/H
Transport Package
Bubble Bag
Specification
1′′-2.5′′, ISO, 3A, SGS, CE, 1"~2.5", 19-63mm
Product Description

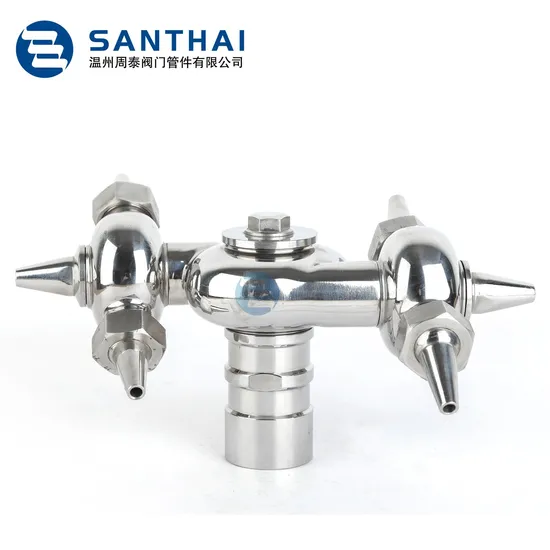

Product Name:stainless steel 316ss cip self-cleaning spray nozzles Product Description 316ss cip self-cleaning spray nozzles
stainless steel cip self-cleaning spray nozzles Detailed Photos
Application:Spray balls are mainly used to spray strongly and clean inside of tank,generally, in field of food-processing, beverage, beer, pharmaceutical industries.
Design feature
1.Double bearing design with excellent rotation effects,and better stability and long life bearing
2.Self-cleaning self-luvricating design
3.Cleaning without dead angle
4.Low consumption of liquid,operating under low pressure
5.Compliance with industry standard
Technical Data:
Availably standard | DIN, SMS, 3A, RJT, ISO/IDF |
Material Quality | AISI304(1.4301)/316L(1.4404) |
Specification | 1"~2.5",19-63MM |
Availabe Connection | Butt-weld,threaded,tri clamped,bolt |
Construction | Rotary, Fixed,Double Rotary |
Surface Treatment | Mirror Polished and Dull Polished |
Pressure | 1.5~3bar |
Cleaning Radius | 1.25mm~2mm |
Fluxation | 12~38m3/h |
Spray angle | 360-degree pattern,180-degree |
Wenzhou Santhai Valve Pipe Fittings Co., Ltd (Since 2006)
is a leading enterprise integrating design, production, sales and service projects. Santhai company is specialized in sanitary
stainless steel butterfly valve, ball valve, check valve, clamp&union sets, pipe fittings, fluid equipment, non- standard accessories
and other stainless steel products. The products are widely used in food, pharmaceutical, cosmetics, water treatment, beer and
beverage equipment and other complete equipment.
Santhai Valve Pipe Fitting keys to research and develop new technology to guarantee quality and offer good service. Hence, we gaina good reputation in sanitary stainless steel industry. Warmly welcome new and old customer to contact us, mutual benefit and mutual cooperation. Company Profile
We persist in the principle of "Quality First, Customer Satisfaction" and will create more excellent liquid fittings to meet customers' requirement by full passion and first-class service. Moreover, we can also design according to your drawing and samples.
Sanitary Valves | Sanitary Butterfly Valves |
Sanitary Check Valves |
Sanitary Ball Valves |
Sanitary Divert Valves |
Sanitary Diaphragm Valves |
Sanitary Sample Valves |
Sanitary Mixproof Valves |
Sanitary Pipe Fittings | Sanitary Elbow |
Sanitary Tee |
Sanitary Reducer |
Sanitary Cross |
Sanitary Triclamp Ferrule |
Sanitary Cap |
Sanitary Pipe Hanger |
Sanitary Tank Cleaning Ball |
Sanitary Hose Joint |
Sanitary Unions |
Sanitary Sight Glass |
Sanitary Strainer |
Sanitary Manways | Sanitary Round Manway without Pressure |
Sanitary Round Manway with Pressure |
Sanitary Square Manway |
Sanitary Oval Manway |
Sanitary Pumps | Sanitary Centrifugal Pump |
Sanitary Lobe Pump |
Sanitary Self Priming Pump |
Sanitary Tanks | Storage Tank |
Fermentation Tank |
Mixing Tank |
Warm-keeping Tank |
Sanitary Tube | Seamless Tube |
Weldless Tube |
Sanitary Gasket | Silicone/EPDM Gasket for Triclamp |
Silicone/EPDM Gasket for Union |
Silicone/EPDM Gasket for Butterfly Valve |
Silicone/EPDM Gasket for Manhole Cover |
FAQ Q1. Are you a trading company or factory?
We are a manufacturing factory.
Q2. Do you have FDA certificate for the materials?
FDA is very important for the food processing machines.
Q3. May I have free sample before ordering?
Yes,our company is very pleased to send to you free sample for quality test as long as freight cost being paid by buyers themselves.
Q4. What's the payment terms?
For small testing orders,we accept Paypal,Western Union,T/T and credit Card.
For mass orders,we accept T/T and L/C.
Q5.How do you control the quality?
Quality control is very important to avoid material mixing and poor quality.We control the quality from beginning to the end.We only have 304 and 316L two different materials.100% inspection on raw material.During production,different materials in different place.After materials are finished,we choose 10% for inspection.If there is 0.1% problem in 10%,then no excuse to go ahead for inspecting 100% of the materials.
Q6.If there is any quality problem,how do you solve it?
We are proud that we never let one customer leave us.We are not 100% perfect,there is some quality problem.We try our best to provide the correct materials in the beginning,so we need less time for quality problem.If there is any quality problem,we take the responsibility.We believe what we are doing together,it will get back tomorrow.If we leave our responsibility,customer will leave us.If we always take our responsibility,we keep our customers with us.
Q7.How long is your delivery time?
For normal production in 7-10days.For bulk order in 15-25days.
Q8.Warranty
One year warranty for all of our stainless steel products.Gaskets are not included due to the different application for customers.
Q9.More questions are appreciated.
>>
