US$40,000.00-60,000.00
|
1 Set
(MOQ)
|
Basic Info.
Number of Shaft
Single Axis
Automatic Grade
Semiautomatic
Max. Drilling Dia. (mm)
50
Key Selling Points
Automatic
Type

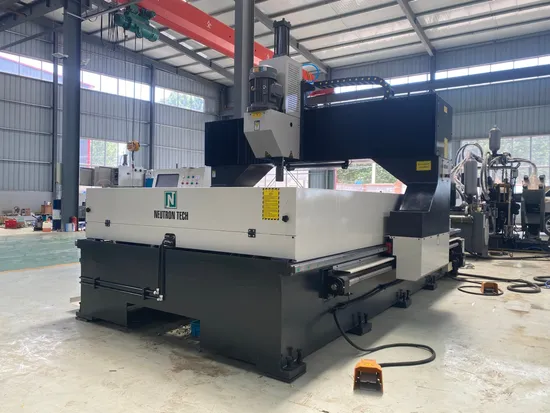

Gantry Drilling Machine
Transport Package
Hardcover Wooden Cases
Production Capacity
50set/Sets Per Month
Product Description
Product parameters
Item | Details | value |
Size of work piece | Thickness | Max.80mm |
Width ×length | 1000mm×1650mm one piece |
825mm×1000mm two pieces |
500mm×825mm four pieces |
Axis | Quick change chuck | Morse Taper 3#,,4# |
Diameter of Drilling head | Φ12mm-Φ50mm |
Variable speed mode | Stepless speed adjustment |
rotation speed | 120-560r/min |
max. feeding stoke | 180mm |
Feeding | Hydraulic Stepless speed adjustment |
Clamping | Clamping thickness | 15-80mm |
Number of clamps | 12 pieces |
Clamping force | 7.5KN |
Clamping start | Foot switch |
Cooling water | Type | Forced circulation |
Hydraulic | clamping | 6MPa(60kgf/cm2) |
Volume | 100L |
Air force | Air supply | 0.4MPa(4kgf/cm2) |
Servo Motor | Axis | 5.5KW |
Hydraulic pump | 2.2KW |
Cooling pump | 0.25KW |
Servo motor of chip removal device | 0.4KW |
Servo motor of X axis | 1.5KW |
Servo motor of Y axis | 1.0KW |
Size | L×W×H | About 3160×3900×2780mm |
Weight | Machine | 4000kg |
Chip removal system | 400kg |
Control axis | X,Y ,Z |
Distance | X | 1650mm |
Y | 1000mm |
Max speed | 10000mm/min |
Working temperature: 0ºC ~ 40ºC
Working humidity: ≤75%
Power: Three phase four wire system
AC Voltage: 380V
Fluctuation of voltage: ±10%
Frequency: 50 Hz±1HZ
Product display
Other products
Certifications
Company information
Our company is specialized in different kinds of products. We stick to the principle of quality first, service first, continuous improvement and innovation to meet the customers for the management and zero defect, zero complaints as the quality objective. To perfect our service, we make our products with good quality at the reasonable price. The main products are high-speed railing molding equipment, U-shaped column forming equipment, iron tower processing equipment, steel structure processing equipment, sheet processing equipment, flange forming equipment, flame cutting machine, plasma cutting machine, laser cutting machine, hollow glass aluminum spacer Production line, hollow glass warm edge strip production line, furniture production line, CNC engraving machine, hollow aluminum strip, hollow sealant, etc. Its products are widely used in road and bridge construction, construction steel structure, electric power tower, automobile manufacturing, furniture manufacturing, decoration and decoration industries.
Packing & Shipment
FAQ: Q: How can I get a quotation?
A: Leave us massage with your purchase requements and we will reply you ASAP. And you may contact us directly by Trade Manager or Telephon
Q: When can you arrange shippment?
A: We usually arrange shippment in 10-30days
Q: Can you provide training for operation CNC machines?
A: Yes, free training in our factory is available.
Q: What you can do if my machines have problems?
A: a.We can send you free components to you if your machines are in guarantee time.
b.We can send our engineers to repair your machines
Q: How about your price?
A: Send me details about what you need, you will get the best price in China. The price is competitive over the world.
Q: What's your warranty terms?
A: We will supply a replacement for parts that prove to be defective for a period of 18 months, starting on the machine's bill of lading date. Extended warranty is available at the time of purchase. Please contact your Z-MaT sales representative for details .
Q: What's the delivery time, and what's the package?
A: Normally the delivery time is about 30-45 days. All our CNC machines are packed with sea worthy package.
>>
