Power Hose Crimping Machines up to 2 1/2 Inch 380V 3pH

Product Description

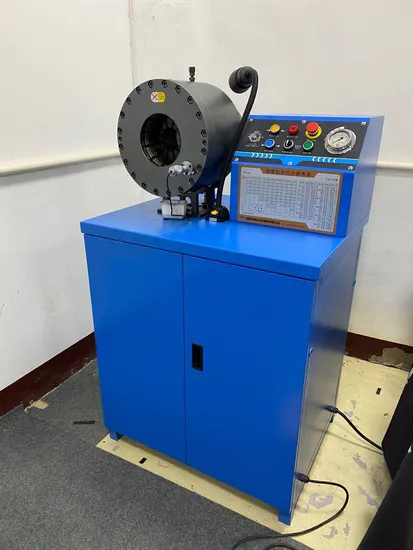

Button type hose crimping machine KM-91L has two function manual and semi-auntomatic. It is a traditional and hot sale hose crimping machine based on high quality and good price.
Button type hose crimping machine KM-91L techincal data:

Crimp range	4mm-91mm
For hydraulic hose	2 1/2inch 4SP
Max opening without dies	135mm
Opening	28mm
Force	760T
Cycle time	9s
Voltage & Power	380V-50HZ-3PH
Optional voltage	220V,440V
Pump	Piston pump 14.5min/L
Dies sets	11sets
System pressure	31.5Mpa
Machine size	800*630*1376
Weight without oil	245KG
Shelf+quick change	Optional
Electric limit switch	has
Electric control with touch screen	Optional

Hose crimping machine KM-91L dies

Die No.	Crimp Range(mm)	D(mm)	L(mm)
6	15-25	15	65
8	18-28	18	65
10	20-30	20	65
13	23-33	23	65
16	26-36	26	65
19	29-39	29	65
25	37-47	37	65
32	46-56	46	78
38	51-61	51	78
51	63-73	63	78
64	71-81	71	100
Die can be customized according to your needs.

Hose crimping machine KM-91L Special:
NEW foam inserts introduced to protect your machine from debris dropping into
the bottom of the head. With there you will minimize the risk of debris getting
into the cylinder which could cause damage to seals and other moving parts of
the head. This will significantly extend the life of hydraulic hose crimping machine.
Hose crimping machine KM-91L applition:
1. Suitable for high precision pressing of low and high pressure hose diameter ,starting from 1/4" to 2 1/2" internal hose pipe.
2.Used rubber hose to transmit hydraulic pressure as there working power.
3. used in Building Construction, Petroleum Industry, Chemical Industry, Car and Motor Industry.
