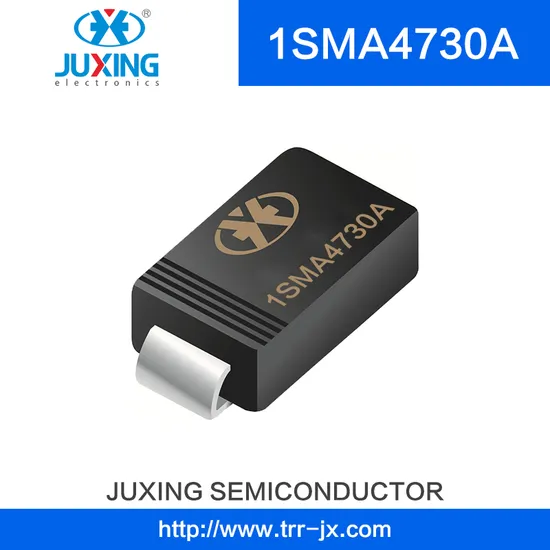

Juxing 1SMA4730A 1W 3.9V Zener Diode Suitable for Surface Mounted Design with SMA Package

Product Description

Product Description Zener diode is a specialized type of diode that is designed to work in the reverse breakdown region of its voltage-current characteristic curve. Unlike regular diodes, which are designed to allow current to flow in one direction and block it in the reverse direction, Zener diodes are specifically engineered to have a controlled breakdown voltage in the reverse direction.
When a Zener diode is operated in reverse bias beyond its breakdown voltage (also known as the Zener voltage), it starts to conduct in the reverse direction. This characteristic makes Zener diodes valuable in a variety of applications, primarily related to voltage regulation and voltage reference.
It's important to choose a Zener diode with the appropriate breakdown voltage for your specific application. Zener diodes are available in a wide range of breakdown voltages and power ratings to suit different requirements.
Product Parameters

Type	Marking	Zener Voltage Range				Maximum Zener Impedance			Reverse Current			Package
		VZT(at IZT)			IZT	ZZT@IZT	ZZK@IZK	IZK	IR	@VR	Pd
		Min(V)	Nom(V)	Max(V)	(mA)	(Ω)	(Ω)	(mA)	μA	V	mW
1SMAF4728A	728A	3	3.3	3.5	75	10	-	-	100	1	1000	SMAF
1SMAF4729A	729A	3	3.6	3.8	69	10			100	1	1000	SMAF
1SMAF4730A	730A	4	3.9	4.1	64	9			50	1	1000	SMAF
1SMAF4731A	731A	4	4.3	4.56	58	9			25	1	1000	SMAF
1SMAF4732A	732A	5	4.7	4.93	53	8			10	1	1000	SMAF
1SMAF4733A	733A	5	5.1	5.36	49	7			10	1	1000	SMAF
1SMAF4734A	734A	5	5.6	5.92	45	5			10	2	1000	SMAF
1SMAF4735A	735A	6	6.2	6.51	41	2			10	3	1000	SMAF
1SMAF4736A	736A	6	6.8	7.18	37	3.5			10	4	1000	SMAF
1SMAF4737A	737A	7	7.5	7.88	34	4			10	5	1000	SMAF
1SMAF4738A	738A	8	8.2	8.67	31	4.5			10	6	1000	SMAF
1SMAF4739A	739A	9	9.1	9.59	28	5			10	7	1000	SMAF
1SMAF4740A	740A	10	10	10.5	25	7			10	7	1000	SMAF
1SMAF4741A	741A	10	11	11.6	23	8			5	8	1000	SMAF
1SMAF4742A	742A	11	12	12.6	21	9			5	9	1000	SMAF
1SMAF4743A	743A	12	13	14.1	19	10			5	10	1000	SMAF
1SMAF4744A	744A	14	15	15.8	17	14			5	11	1000	SMAF
1SMAF4745A	745A	15	16	17.1	16	16			5	12	1000	SMAF
1SMAF4746A	746A	17	18	19.2	14	20			5	13	1000	SMAF
1SMAF4747A	747A	19	20	21.2	13	22			5	15	1000	SMAF
1SMAF4748A	748A	21	22	23.3	12	23			5	17	1000	SMAF
1SMAF4749A	749A	23	24	26	11	25			5	18	1000	SMAF
1SMAF4750A	750A	25	27	28.9	9.5	35			5	21	1000	SMAF
1SMAF4751A	751A	28	30	32	8.5	40			5	23	1000	SMAF
1SMAF4752A	752A	31	33	34.9	7.5	45			5	25	1000	SMAF
1SMAF4753A	753A	34	36	37.9	7	50			5	27	1000	SMAF
1SMAF4754A	754A	37	39	41.5	6.5	60			5	30	1000	SMAF
1SMAF4755A	755A	41	43	45.6	6	70			1	32	1000	SMAF
1SMAF4756A	756A	45	47	49.8	5.5	80			1	35	1000	SMAF
1SMAF4757A	757A	49	51	54	5	95			1	38	1000	SMAF
1SMAF4758A	758A	54	56	58.8	4.5	110			1	42	1000	SMAF
1SMAF4759A	759A	59	62	65.6	4	125			1	47	1000	SMAF
1SMAF4760A	760A	65	68	71.7	3.7	150			1	52	1000	SMAF
1SMAF4761A	761A	71	75	78.8	3.3	175			1	56	1000	SMAF
1SMAF4762A	762A	78	82	87	3	200			1	62	1000	SMAF
1SMAF4763A	763A	86	91	96	2.8	250			1	69	1000	SMAF
1SMAF4764A	764A	95	100	105	2.5	350			1	76	1000	SMAF
1SMAF4765A	765A	104	110	116	2.3	450			1	84	1000	SMAF
1SMAF4766A	766A	114	120	127	2	550			1	91	1000	SMAF
1SMAF4767A	767A	125	135	142	1.9	700			1	100	1000	SMAF
1SMAF4768A	768A	140	150	157	1.7	900			1	110	1000	SMAF
1SMAF4769A	769A	155	165	172	1.6	1100			1	120	1000	SMAF
1SMAF4770A	770A	170	180	191	1.4	1200			1	135	1000	SMAF
1SMAF4771A	771A	189	200	211	1.2	1400			1	150	1000	SMAF
1SMAF4772A	772A	209	220	231	1	1600			1	165	1000	SMAF
1SMAF4773A	773A	229	240	251	1	1800			1	180	1000	SMAF
1SMAF4774A	774A	249	260	271	1	2000			1	190	1000	SMAF
1SMAF4775A	775A	269	280	291	1	2100			1	205	1000	SMAF
1SMAF4776A	776A	289	300	315	1	2300			1	230	1000	SMAF
1SMAF4777A	777A	313	330	346	1	2500			1	250	1000	SMAF
1SMA4728A	728A	3.10	3.3	3.50	75	10			100	1	1000	SMA
1SMA4729A	729A	3.40	3.6	3.80	69	10			100	1	1000	SMA
1SMA4730A	730A	3.70	3.9	4.10	64	9.0			50	1	1000	SMA
1SMA4731A	731A	4.06	4.3	4.56	58	9.0			25	1	1000	SMA
1SMA4732A	732A	4.50	4.7	4.93	53	8.0			10	1	1000	SMA
1SMA4733A	733A	4.84	5.1	5.36	49	7.0			10	1	1000	SMA
1SMA4734A	734A	5.32	5.6	5.92	45	5.0			10	2	1000	SMA
1SMA4735A	735A	5.86	6.2	6.51	41	2.0			10	3	1000	SMA
1SMA4736A	736A	6.46	6.8	7.18	37	3.5			10	4	1000	SMA
1SMA4737A	737A	7.12	7.5	7.88	34	4.0			10	5	1000	SMA
1SMA4738A	738A	7.79	8.2	8.67	31	4.5			10	6	1000	SMA
1SMA4739A	739A	8.60	9.1	9.59	28	5.0			10	7	1000	SMA
1SMA4740A	740A	9.50	10	10.5	25	7.0			10	7	1000	SMA
1SMA4741A	741A	10.4	11	11.6	23	8.0			5	8	1000	SMA
1SMA4742A	742A	11.4	12	12.6	21	9.0			5	9	1000	SMA
1SMA4743A	743A	12.4	13	14.1	19	10			5	10	1000	SMA
1SMA4744A	744A	13.8	15	15.8	17	14			5	11	1000	SMA
1SMA4745A	745A	15.2	16	17.1	16	16			5	12	1000	SMA
1SMA4746A	746A	16.8	18	19.2	14	20			5	13	1000	SMA
1SMA4747A	747A	19.0	20	21.2	13	22			5	15	1000	SMA
1SMA4748A	748A	20.8	22	23.3	12	23			5	17	1000	SMA
1SMA4749A	749A	22.8	24	26.0	11	25			5	18	1000	SMA
1SMA4750A	750A	25.3	27	28.9	9.5	35			5	21	1000	SMA
1SMA4751A	751A	28.2	30	32.0	8.5	40			5	23	1000	SMA
1SMA4752A	752A	31.3	33	34.9	7.5	45			5	25	1000	SMA
1SMA4753A	753A	34.2	36	37.9	7	50			5	27	1000	SMA
1SMA4754A	754A	37.2	39	41.5	6.5	60			5	30	1000	SMA
1SMA4755A	755A	40.9	43	45.6	6	70			1	32	1000	SMA
1SMA4756A	756A	44.9	47	49.8	5.5	80			1	35	1000	SMA
1SMA4757A	757A	48.6	51	54.0	5	95			1	38	1000	SMA
1SMA4758A	758A	53.6	56	58.8	4.5	110			1	42	1000	SMA
1SMA4759A	759A	58.9	62	65.6	4	125			1	47	1000	SMA
1SMA4760A	760A	64.6	68	71.7	3.7	150			1	52	1000	SMA
1SMA4761A	761A	71.2	75	78.8	3.3	175			1	56	1000	SMA
1SMA4762A	762A	77.9	82	87.0	3	200			1	62	1000	SMA
1SMA4763A	763A	86.0	91	96.0	2.8	250			1	69	1000	SMA
1SMA4764A	764A	95.0	100	105	2.5	350			1	76	1000	SMA
1SMA4765A	765A	104	110	116	2.3	450			1	84	1000	SMA
1SMA4766A	766A	114	120	127	2	550			1	91	1000	SMA
1SMA4767A	767A	125	135	142	1.9	700			1	100	1000	SMA
1SMA4768A	768A	140	150	157	1.7	900			1	110	1000	SMA
1SMA4769A	769A	155	165	172	1.6	1100			1	120	1000	SMA
1SMA4770A	770A	170	180	191	1.4	1200			1	135	1000	SMA
1SMA4771A	771A	189	200	211	1.2	1400			1	150	1000	SMA
1SMA4772A	772A	209	220	231	1	1600			1	165	1000	SMA
1SMA4773A	773A	229	240	251	1	1800			1	180	1000	SMA
1SMA4774A	774A	249	260	271	1	2000			1	190	1000	SMA
1SMA4775A	775A	269	280	291	1	2100			1	205	1000	SMA
1SMA4776A	776A	289	300	315	1	2300			1	230	1000	SMA
1SMA4777A	777A	313	330	346	1	2500			1	250	1000	SMA
1SMA5913A	913A	2.97	3.3	3.63	113.6	10			100	1	1500	SMA
1SMA5914A	914A	3.24	3.6	3.96	104.2	9.0			75	1	1500	SMA
1SMA5915A	915A	3.51	3.9	4.29	96.1	7.5			25	1	1500	SMA
1SMA5916A	916A	3.87	4.3	4.73	87.2	6.0			5	1	1500	SMA
1SMA5917A	917A	4.23	4.7	5.17	79.8	5.0			5	1.5	1500	SMA
1SMA5918A	918A	4.59	5.1	5.61	73.5	4.0			5	2	1500	SMA
1SMA5919A	919A	5.04	5.6	6.16	66.9	2.0			5	3	1500	SMA
1SMA5920A	920A	5.58	6.2	6.82	60.5	2.0			5	4	1500	SMA
1SMA5921A	921A	6.12	6.8	7.48	55	2.5			5	5.2	1500	SMA
1SMA5922A	922A	6.75	7.5	8.25	50	3.0			5	6	1500	SMA
1SMA5923A	923A	7.38	8.2	9.02	45.7	3.5			5	6.5	1500	SMA
1SMA5924A	924A	8.19	9.1	10.01	41.2	4.0			5	7	1500	SMA
1SMA5925A	925A	9	10	11	37.5	4.5			5	8	1500	SMA
1SMA5926A	926A	9.9	11	12.1	34	5.5			1	8.4	1500	SMA
1SMA5927A	927A	10.8	12	13.2	31.2	6.5			1	9	1500	SMA
1SMA5928A	928A	11.7	13	14.3	28.8	7.0			1	9.9	1500	SMA
1SMA5929A	929A	13.5	15	16.5	25	9.0			1	11.4	1500	SMA
1SMA5930A	930A	14.4	16	17.6	23.4	10			1	12.2	1500	SMA
1SMA5931A	931A	16.2	18	19.8	21	12			1	13.7	1500	SMA
1SMA5932A	932A	18	20	22	19	14			1	15.2	1500	SMA
1SMA5933A	933A	19.8	22	24.2	17	18			1	16.7	1500	SMA
1SMA5934A	934A	21.6	24	26.4	16	19			1	18.2	1500	SMA
1SMA5935A	935A	24.3	27	29.7	14	23			1	20.6	1500	SMA
1SMA5936A	936A	27	30	33	12.5	26			1	23	1500	SMA
1SMA5937A	937A	29.7	33	36.3	11.4	33			1	25	1500	SMA
1SMA5938A	938A	32.4	36	39.6	10.4	38			1	27	1500	SMA
1SMA5939A	939A	35.1	39	42.9	9.6	45			1	30	1500	SMA
1SMA5940A	940A	38.7	43	47.3	8.7	53			1	33	1500	SMA
1SMA5941A	941A	42.3	47	51.7	8	67			1	36	1500	SMA
1SMA5942A	942A	45.9	51	56.1	7.3	70			1	39	1500	SMA
1SMA5943A	943A	50.4	56	61.6	6.7	86			1	42	1500	SMA
1SMA5944A	944A	55.8	62	68.2	6	100			1	47	1500	SMA
1SMA5945A	945A	61.2	68	74.8	5.5	120			1	52	1500	SMA
1SMA5946A	946A	67.5	75	82.5	5	140			1	57	1500	SMA
1SMA5947A	947A	73.8	82	90.2	4.6	160			1	62	1500	SMA
1SMA5948A	948A	81.9	91	100.1	4.1	200			1	69	1500	SMA
1SMA5949A	949A	90	100	110	3.7	250			1	76	1500	SMA
1SMA5950A	950A	99	110	121	3.4	300			1	84	1500	SMA
1SMA5951A	951A	108	120	132	3.1	380			1	91	1500	SMA
1SMA5952A	952A	117	130	143	2.9	450			1	100	1500	SMA
1SMA5953A	953A	135	150	165	2.5	600			1	114	1500	SMA
1SMA5954A	954A	144	160	176	2.3	700			1	121.6	1500	SMA
1SMA5955A	955A	162	180	198	2.1	900			1	136.8	1500	SMA
1SMA5956A	956A	180	200	220	1.9	1200			1	152	1500	SMA
1SMA5957A	957A	216	240	264	1.5	1600			1	182.4	1500	SMA
1SMB5913B	913B	3.13	3.3	3.47	113.6	10	500	1	100	1	3000	SMB
1SMB5914B	914B	3.42	3.6	3.78	104.2	9	500	1	75	1	3000	SMB
1SMB5915B	915B	3.70	3.9	4.10	96.1	7.5	500	1	25	1	3000	SMB
1SMB5916B	916B	4.08	4.3	4.52	87.2	6	500	1	5	1	3000	SMB
1SMB5917B	917B	4.46	4.7	4.94	79.8	5	500	1	5	1.5	3000	SMB
1SMB5918B	918B	4.84	5.1	5.36	73.5	4	350	1	5	2	3000	SMB
1SMB5919B	919B	5.32	5.6	5.88	66.9	2	250	1	5	3	3000	SMB
1SMB5920B	920B	5.89	6.2	6.51	60.5	2	200	1	5	4	3000	SMB
1SMB5921B	921B	6.46	6.8	7.14	55.1	2.5	200	1	5	5.2	3000	SMB
1SMB5922B	922B	7.12	7.5	7.88	50	3	400	0.5	5	6	3000	SMB
1SMB5923B	923B	7.79	8.2	8.61	45.7	3.5	400	0.5	5	6.5	3000	SMB
1SMB5924B	924B	8.64	9.1	9.56	41.2	4	500	0.5	5	7	3000	SMB
1SMB5925B	925B	9.5	10	10.5	37.5	4.5	500	0.25	5	8	3000	SMB
1SMB5926B	926B	10.45	11	11.55	34.1	5.5	550	0.25	1	8.4	3000	SMB
1SMB5927B	927B	11.4	12	12.6	31.2	6.5	550	0.25	1	9.1	3000	SMB
1SMB5928B	928B	12.35	13	13.65	28.8	7	550	0.25	1	9.9	3000	SMB
1SMB5929B	929B	14.25	15	15.75	25	9	600	0.25	1	11.4	3000	SMB
1SMB5930B	930B	15.2	16	16.8	23.4	10	600	0.25	1	12.2	3000	SMB
1SMB5931B	931B	17.1	18	18.9	20.8	12	650	0.25	1	13.7	3000	SMB
1SMB5932B	932B	19	20	21	18.7	14	650	0.25	1	15.2	3000	SMB
1SMB5933B	933B	20.9	22	23.1	17	17.5	650	0.25	1	16.7	3000	SMB
1SMB5934B	934B	22.8	24	25.2	15.6	19	700	0.25	1	18.2	3000	SMB
1SMB5935B	935B	25.65	27	28.35	13.9	23	700	0.25	1	20.6	3000	SMB
1SMB5936B	936B	28.5	30	31.5	12.5	28	750	0.25	1	22.8	3000	SMB
1SMB5937B	937B	31.35	33	34.65	11.4	33	800	0.25	1	25.1	3000	SMB
1SMB5938B	938B	34.2	36	37.8	10.4	38	850	0.25	1	27.4	3000	SMB
1SMB5939B	939B	37.05	39	40.95	9.6	45	900	0.25	1	29.7	3000	SMB
1SMB5940B	940B	40.85	43	45.15	8.7	53	950	0.25	1	32.7	3000	SMB
1SMB5941B	941B	44.65	47	49.35	8	67	1000	0.25	1	35.8	3000	SMB
1SMB5942B	942B	48.45	51	53.55	7.3	70	1100	0.25	1	38.8	3000	SMB
1SMB5943B	943B	53.2	56	58.8	6.7	86	1300	0.25	1	42.6	3000	SMB
1SMB5944B	944B	58.9	62	65.1	6	100	1500	0.25	1	47.1	3000	SMB
1SMB5945B	945B	64.6	68	71.4	5.5	120	1700	0.25	1	51.7	3000	SMB
1SMB5946B	946B	71.25	75	78.75	5	140	2000	0.25	1	56	3000	SMB
1SMB5947B	947B	77.9	82	86.1	4.6	160	2500	0.25	1	62.2	3000	SMB
1SMB5948B	948B	86.45	91	95.55	4.1	200	3000	0.25	1	69.2	3000	SMB
1SMB5949B	949B	95	100	105	3.7	250	3100	0.25	1	76	3000	SMB
1SMB5950B	950B	104.5	110	115.5	3.4	300	4000	0.25	1	83.6	3000	SMB
1SMB5951B	951B	114	120	126	3.1	380	4500	0.25	1	91.2	3000	SMB
1SMB5952B	952B	123.5	130	136.5	2.9	450	5000	0.25	1	98.8	3000	SMB
1SMB5953B	953B	142.5	150	157.5	2.5	600	6000	0.25	1	114	3000	SMB
1SMB5954B	954B	152	160	168	2.3	700	6500	0.25	1	121.6	3000	SMB
1SMB5955B	955B	171	180	189	2.1	900	7000	0.25	1	136.8	3000	SMB
1SMB5956B	956B	190	200	210	1.9	1200	8000	0.25	1	152	3000	SMB
SMBJ5338B					240	1.5	400	1.0	1.0	1.0	5000	SMB
SMBJ5339B					220	1.0	400	1.0	1.0	2.0	5000	SMB
SMBJ5340B					200	1.0	300	1.0	1.0	3.0	5000	SMB
SMBJ5341B					200	1.0	200	1.0	1.0	3.0	5000	SMB
SMBJ5342B					175	1.0	200	1.0	10	5.2	5000	SMB
SMBJ5343B					175	1.5	200	1.0	10	5.7	5000	SMB
SMBJ5344B					150	1.5	200	1.0	10	6.2	5000	SMB
SMBJ5345B					150	2.0	200	1.0	10	6.6	5000	SMB
SMBJ5346B					150	2.0	150	1.0	7.5	6.9	5000	SMB
SMBJ5347B					125	2.0	125	1.0	5.0	7.6	5000	SMB
SMBJ5348B					125	2.5	125	1.0	5.0	8.4	5000	SMB
SMBJ5349B					100	2.5	125	1.0	2.0	9.1	5000	SMB
SMBJ5350B					100	2.5	100	1.0	1.0	9.9	5000	SMB
SMBJ5351B					100	2.5	75	1.0	1.0	10.6	5000	SMB
SMBJ5352B					75	2.5	75	1.0	1.0	11.5	5000	SMB
SMBJ5353B					75	2.5	75	1.0	1.0	12.2	5000	SMB
SMBJ5354B					70	2.5	75	1.0	0.5	12.9	5000	SMB
SMBJ5355B					65	2.5	75	1.0	0.5	13.7	5000	SMB
SMBJ5356B					65	3.0	75	1.0	0.5	14.4	5000	SMB
SMBJ5357B					65	3.0	75	1.0	0.5	15.2	5000	SMB
SMBJ5358B					50	3.5	75	1.0	0.5	16.7	5000	SMB
SMBJ5359B					50	3.5	100	1.0	0.5	18.2	5000	SMB
SMBJ5360B					50	4.0	110	1.0	0.5	19.0	5000	SMB
SMBJ5361B					50	5.0	120	1.0	0.5	20.6	5000	SMB
SMBJ5362B					50	6.0	130	1.0	0.5	21.2	5000	SMB

Hot Products
Products Applications
Factory Profile
Warehouse
Certifications
FAQ 1. What main products does we sell?
We sells full range of diodes and bridge rectifiers. Our advantages are most complete line of low voltage drop schottky diode, TVS, ESD, Mosfet, big Bridges, Transistor.
2.How long is a quote valid for?
All prices quoted are valid for 30 days from the date of quotation.
3.What is payment terms?
We prefer pay in advance via TT,western union and Paypal(for small amount only).
4. How long is the production lead time?
* Most items we have stock of complete items;
* Most items we have stock of chips, lead time 2~3 weeks;
* Partial items have not stock of chips, lead time 4~5 weeks.
* once order confirmed, we can check the exact lead time then
5. What is the freight charge when we buy diodes from JUXING?
As freight will varies according to the size and weight of the parts, different location of customers, we will quote ex-work, freight to collect and paid by customer courier account of DHL,UPS, FEDEX. Or we will check the shipping cost and add it to the total amount customer should pay.
6. May I have some samples for testing?
We offer free samples for our customers and they only need to pay the freight for samples.
7. How to assure worldwide customers receive components in good quality and condition?
1st, with advanced manufacturing technology ensure product reliability;
2nd Strict quality control system, ISO registered;
3rd, We will provide data sheet for all components, and we prefer customer trial test our parts, volumn orders to be placed after trial test pass;
4th, Factory would check product 100% before delivery, and international safety packaging will be applied to ensure parts arrive at customer in good condition.

---

>> NIBOSI 2021 New Men Watch Top Luxury Brand Men Sport Military Watch Quartz Wristwatches Waterproof Chronograph Relogio Masculino
>> Wholesale High-Quality Aluminium Banquet Chairs for Hotel Restaurant Party Event
>> Opfd-1450 Factory Direct High Efficiency and Energy Saving Embossing Tissue Folding Machine
>> Table tennis table household foldable movable up and down adjustment indoor standard game dedicated with wheels
>> Hot Sell Good Quality Chrome Weather Strips for Premio 2008
>> Deco Crystal Luxury Wall Clock Modern home decor
>> Metal Processing Machine Vmc 855 1160 Fanuc Controller 5 Axis Vertical Machining Center
>> For Subaru Forester 2018-2021 Mud Splash Guard Pads Fender Mudguards Car Accessories
>> Manufacturer 25g 30g Custom Mini Hotel Soap for Luxury Hotel Disposable Soap
>> Taijia tuf-2000b RS485 Stationary Clamp on ultrasonic flow meter Fixed ultrasonic flowmeter with TM-1 sensor For Sale
>> Professional Desktop Eswt High Intensity Shockwave Therapy Machine for ED Rehabilitation
>> Brand New High Quality Yoga Outfit Yoga Set with Jacket XXL Plus Size Gym Sportswear Women Active Sports Fitness Yoga Wear
>> Trampoine and Enclosure Tubes with Glass Fiber for Fun
>> Best Quality 18000 Btu Inverter Split Type Invertor Air Conditioner
>> Qt4-25 Fully Automatic Hydraulic Concrete Block Machine Factory Price
>> Anti cat scratch Stainless Steel Wire Mesh Window Screening
>> Potato Exporter From China Original Shandong China Good Good Price New Arrival
>> Sephcare food color yellow E102 tartrazine
>> 3 Roller Iron Plate Bend Rolling Machine Sheet Metal Plate Bending Machine
>> ABB | PFSA140 3BSE006503R1 MODULE PLC DCS In Stock
