Industrial X-ray Inspection Machine 4080 for Foods Product Inspection

Product Description

X-ray, X ray, X ray metal detector, X ray scanner, X ray detector, X ray inspection machine,X-detection machine, metal detectors, metal detection machine

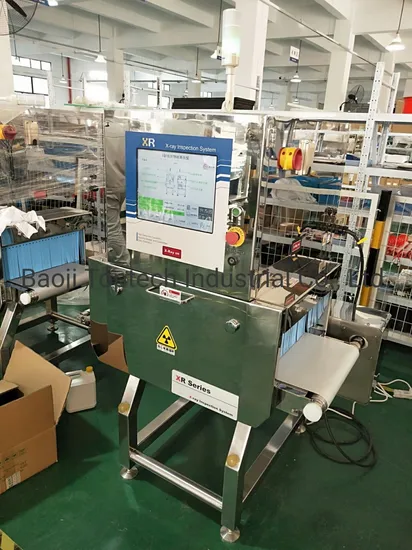

TXR X-ray Inspection System
The Independent -Developed and High Performance X-ray Inspection System
Superior Performance
1. The equipment deliver effective product quality inspection for food, pharmaceutical, chemical and other industries, in addition to detecting contaminants such as metal, glass, bone, shell, hard rubber, hard plastic, it also inspects for products defects such as cracks, bubble, content defects etc. To achieve the complete finished product detection.
2. Excellent automatic detection capability, the accuracy of the metal contaminants such as the SUS ball can reach 0.5 mm.
3. It can be used to detect the contaminants in the metal packaging products and it will not be affected by temperature and humidity changes, to achieve the minimum error rate of the rejecting.
Security Design
Professional security design to achieve the innocuous high-accuracy inspection
1. X-ray Light
2. Lead-free protective curtain, which can be contacted with food directly
3. The monitoring of door's opening and closing
4. Emergency Stop Button
Security Guarantee
(1) Safety interlock stops X-ray output when the tunnel's integrity is compromised, such as a portion of operator's body is inserted
(2) X-ray emissions are under 1micro-sievert per hour to ensure the safety
Easy Operation
1. Simple and convenient touch-screen control to achieve efficient operations
2. Perfect data management system to achieve the easy saving of the product and image record.

Model	XR-4080/XR-6080
X-ray tube voltage	MAX. 80kV, 100W
Belt Width	400
Conveyor Speed	10~60m/s
Screen	Full-color TFT 15" Touch Screen
O/S	Window XP Professional
Connectivity	LAN port, USB port
Product Management	Complete product log
Parameter Adjustment	Auto learning/Manual learning
Image Management	Auto image save/print/analyse
Power Supply	220V, AC
Body Material	SUS304
Purification	Easy to wash
Cooling method	Compulsory air cooling/Air conditioned cooling
Operation temperature	0-35& deg; C (none conditioning)
Operation humidity	30-85%
X-ray emissions	& lt; 1micro-sievert per hour
X-ray protection	Lead/Lead-free protective curtain
