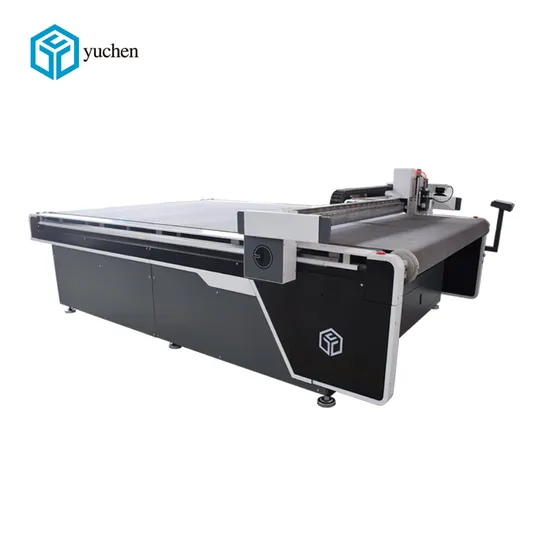

Yuchen CNC Equipment Advertising Cutting Machine for PVC Board Cutter

US$13,000.00-20,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
YC-1630A
Condition
New
Control
Automatic
Application
Kt Board,PVC,Foam,etc
Power Source
Electric
Layout
Horizontal
Maxi Cutting Speed
1200mm/S
Translational Velocity
1500mm/S
Transmission Interface
Ethernet
Motor
Servo Motor
Fixed Mode
Vacuum Absorb
Transport Package
Wooden Case
Specification
2200*3300mm
Trademark
Yuchen
Origin
China
Production Capacity
50 Set Per Month

Product Description

Yuchen CNC Equipment Advertising Cutting Machine for PVC board Cutter
Model: YC-1630A Machine size can be customized
Brand: Yuchen
Applicable cutting materials:KT board, Corrugated cardboard, EPE, PVC, acrylic, thick foam, etc
Application: widely used in advertising industry.
Functions: cutting(oscillating cutting tool),
Optional cutting tool: the cutting tool is optional according to customer's requirements, such as oscillating cutting tool, kiss cut, creasing tool, milling, precise vision-aided position.
Features: Oscillating knife cutting, fast speed, high efficiency; saving material and labor, more convenient and easier to operate for user.
Parameter:
Model YC-1625A YC-1630A YC-1830A
Working area 2500×1600mm 3000×1600mm 3000×1800mm
Operation properties Online / offline operation; continuous cutting with high efficiency, 7*24 with zero downtime
Safety device Infrared induction is used, sensitive response, safe and reliable
Maxi cutting speed 1200mm/s
Translational velocity 1500mm/s
Applicable materials KT board, Corrugated cardboard, EPE, PVC, acrylic, thick foam, etc
Multifunctional head oscillating cutting tool, kiss cut, creasing tool, milling, precise vision-aided position
Cutting thickness 0.1-10.0mm(subject to the material cutting)
Cutting tolerance ±0.1mm
Transmission interface Network transmission
Transmission system Motor:Panasonic
Linear rail:SMTYCC
Fixed mode Vacuum absorb
Supply voltage AC 220V 380V±10%,50HZ
Rated power 11KW
