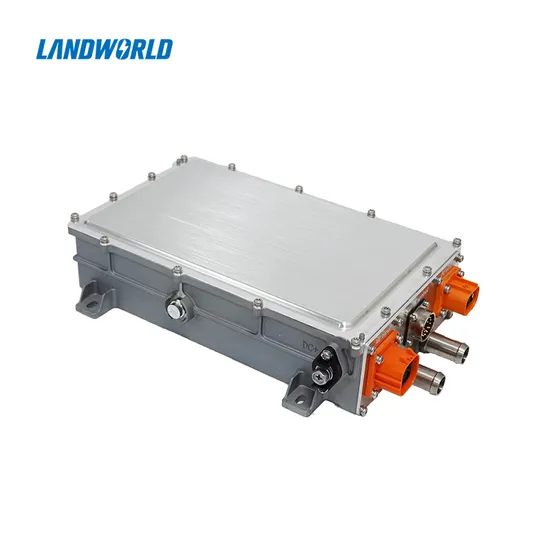

Landworld Power Supply Bidirectional 6.6kw Obc+2kw Dcdc Liquid Cooled

Product Description

Product Features: Body Size: 326x211x83mm Weight:≤9KG Cooling method:Liquid cooled, flow rate≥8L/min IP rating:IP67 Support on-line upgrading and fault diagnosis Compatible with single and three phase charging station Full digital software design, Redundant protection function design
Main Technical Parameters

Items	Technical Specification	Remarks
OBC Electrical Features
Nominal output power	6.6KW
Input Voltage	85-265VAC
Input current	32A Max
Power factor	≥0.99(220Vac @ full load)
Output voltage range	250-450VDC	Can be adjusted according to battery voltage
Max output current	20A
Efficiency	≥94%	Typical efficiency
Voltage accuracy	±1%
Current accuracy	±1%
DC/DC Electrical Features
Input voltage	250-450VDC
Output current	<16A @240Vdc full load
Efficiency	≥94%
Output voltage	9-16V
Nominal voltage	14V
Nominal output current	145A
Nominal power	2KW

---
