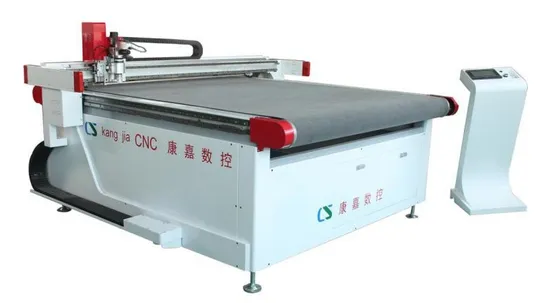

Automatic cnc oscillating knife asbestos gasket cutting machine manufacturer high precision
| Model | KJZD-1625 (automatic feeding) |
| Operating Characteristic | Computer operation is carried out simultaneously with the cutting machine, quickly complete the data transmission, and can be used continuously. |
| Machine overall size | 3260mm * 2125mm *1315mm |
| Working area | 2500 * 1600mm |
| Cutting speed | max. 140m/min (per material) |
| Cutting thickness | 0.1-50mm |
| Cutting accuracy | ±0.1mm |
| Cutting material | Flexible materials, such as leather, coiled mat, sponge, foot mat, cardboard, sofa, cloth, PE board etc. |
| Multifunctional head for different cutter | Half knife, full knife, punching roller, V-cutter, milling knife, pneumatic knife, electric knife, Circular knife (round knife / rotary knife); pin |
| Material fixed type | Vacuum absorption |
| Location mode | Infrared laser lamp |
| Drive motor | Delta, Panasonic, YASKAWA, Fuji can be selected. |
| Power of suction fan | 7.5kw |
| Working voltage | 220V/380V/±10% 50hz/60hz |
| Safety device | Mechanical anti-collision device /infrared radiation device /emergency stop device |
| Transmission interface | Internet transmission |
| Driving method | gear rack |
| Control system | LED touch screen |
| Guide rail | Brand: Yintai |
| Frame structure | Body welding |
| Suction case | Aluminum case |
| Compatible software | Kangjia intelligent software |
Certification | CE/SGS; ISO9001/ISO14001/ISO18001 |
3-20 days after confirming order,detail delivery date should be decided according to
production season and order quantity.
