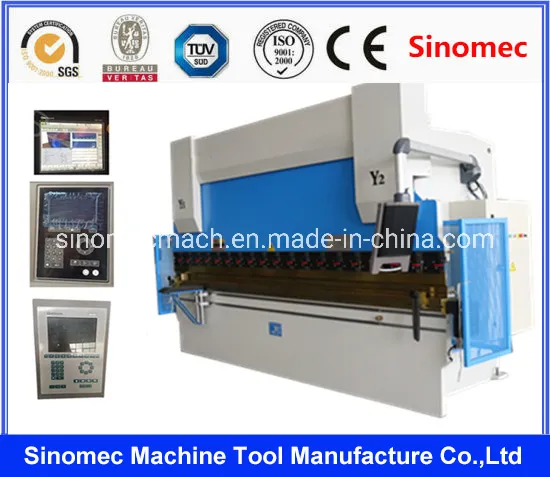

CNC Press Brake / Press Brake Machine / Hydraulic Press Brake We67K-160t/3200

Product Description

Features of CNC Synchronic Press Brake:
1. The electric and hydraulic servo system can control the synchronization of two cylinders. Combined with optical curtain of international standard, the fully closed loop control is formed with high synchronization control accuracy, and high bending and repetitive positioning accuracy.
2. The CNC cylinder deflection auto compensation system helps to prevent the deformed sliding block from affecting the work piece quality and ensure its good linearity and bending angle. The compensation is adjusted automatically by the CNC system, both convenient and accurate.
3. The full functional back gauge system can be extended up to six axes. The work piece can be bent at whatever angled. After welding, the body is machined with the fixture installed only one time. It is processed by CNC pentahedron machining center, ensuring high rigidity and processing accuracy.
4. The hydraulic system adopts the integrated one, which helps to reduce piping connection, eliminate oil leakage, improve the work stability, and beautify the machine appearance. The inner engaged gear pump manufactured by a famous German company is used to reduce the system noise and extend the service life.
5. The die sections have different lengths, which can be combined with a certain width to meet the processing requirements of special work pieces.
6. The upper die hydraulic automatic fastener or quick fastener and plug-in lower die can be equipped based on the customer requirement to reduce work load and improve productivity.
7. The CNC systems are top brand Holland Delem DA52S,DA58T and DA66T. It also features the most advanced electronic board, intelligent modular structure, built-in PLC function, automatic programming and bending simulation, all around shock inspection, remote diagnosis, high resolution color TFT display and Chinese menu.
Main Import of Deployment List----WE67K Series
1). Control System: Netherland DELEM, Swiss CYBELEC or Italy ESA.
2). Hydraulic System: Germany HOERBIGER or Rexroth
3). Servo motor and drive: Japanese YASKAWA
4). Raster Ruler: Germany HEIDENHAIN
5). Ball Bearing Lead Screw: Taiwan HIWIN
6). Straight-line Guide: Taiwan HIWIN
7). Seal Ring: FLETZ, Japanese NOK or VALQUA

Technical Parameters
Model	40T/2500	50T/2500	63T/2500	80T/2500	80T/3200	80T/4000	100T/3200	100T/4000	125T/3200	125T/4000
Bending Force (KN)	400	500	630	800	800	800	1000	1000	1250	1250
Bending Length (mm)	2500	2500	2500	2500	3200	4000	3200	4000	3200	4000
Vertical Distance (mm)	1900	1900	1900	1900	2700	3500	2700	3500	2700	3500
Throat Depth (mm)	300	300	350	350	350	350	400	400	400	400
Stroke (mm)	150	150	170	170	170	170	200	200	200	200
Worktable Height (mm)	800	800	800	800	800	800	800	800	800	800
Worktable Width (mm)	320	350	380	380	380	380	420	420	420	420
Quick down speed (mm/s)	120	120	120	120	120	120	120	120	120	120
Return Speed (mm/s)	100	100	100	110	110	110	100	100	100	100
Working speed (mm/s)	10	10	10	10	10	10	10	10	10	10
Back gauge stroke (mm)	500	500	500	500	500	500	500	500	500	500
Back gauge speed (mm/s)	200	200	200	200	200	200	200	200	200	200
Main power (Kw)	5.5	5.5	5.5	7.5	7.5	7.5	7.5	7.5	11	11
No. of Axis (4+1)	Y1, Y2, X, R, Hydraulic crowning table
Weight(Approx.) (Tons)	3.5	4.5	5.8	7	7.8	8.5	8.5	9.5	9	9.8
Model	160T/3200	160T/4000	160T/6000	200T/3200	200T/4000	300T/3200	300T/4000	400T/4000	400T/6000	500T/6000
Bending Force (KN)	1600	1600	1600	2000	2000	3000	3000	4000	4000	5000
Bending Length (mm)	3200	4000	6000	3200	4000	3200	4000	4000	6000	6000
Vertical Distance (mm)	2700	3500	4900	2700	3500	2700	3500	3500	4900	4900
Throat Depth (mm)	400	400	400	400	400	400	400	400	400	500
Stroke (mm)	200	200	200	200	200	200	200	200	200	320
Worktable Height (mm)	800	800	800	800	800	800	800	800	800	800
Worktable Width (mm)	80	80	80	100	100	100	100	110	110	300
Quick down speed (mm/s)	120	120	120	120	120	120	120	110	110	85
Return Speed (mm/s)	100	100	100	100	100	110	110	80	80	75
Working speed (mm/s)	10	10	10	10	10	10	10	10	10	8
Back gauge stroke (mm)	500	500	500	500	500	500	500	500	500	500
Back gauge speed (mm/s)	200	200	200	200	200	200	200	200	200	200
Main power (Kw)	11	11	15	15	15	18.5	18.5	22.5	30	37
No. of Axis (4+1)	Y1, Y2, X, R, Hydraulic crowning table
Weight(Approx.) (Tons)	11	12	19.5	14.2	15.5	16.8	18	31	35	53

---
