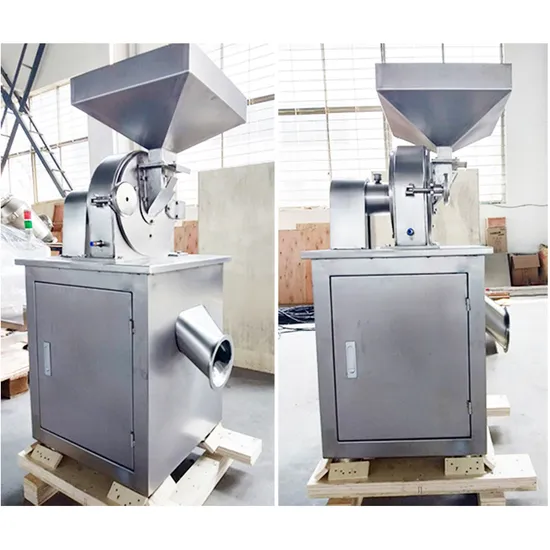

Sf Series Universal Crusher Pulverizer Machinery

Product Description

Sf Series Universal Crusher

Model	SF20	SF30	SF40	SF50
Capacity (kg/h)	60-150	100-300	160-800	400-1200
Spindle speed (r/min)	4500	3800	3400	2800
Feeding size (mm)	6	10	12	15
Crushing Fineness (mesh)	60-120	60-120	60-120	60-120
Power of motor (kw )	4	5.5	11	15
Overall size (mm)	550*600*1250	600*700*1450	800*900*1500	1000*900*1680
Weight (kg)	186	300	510	650

Applications:
The SF-30 Automatic Medical Pharmaceutical Food Pulverizer Crushing Pulverizing Machine is widely used for pharmaceutical industry, chemical industry foodstuff industry, grain industry and so on.
Working Principle:
The machine uses the relative motion between movable and fixed fluted discs, the raw materials to be crushed undertakes the comprehensive actions such as impacted by teeth, friction, impacted between raw materials are crushed. Its features are simple and solid in structure, stable in operation, high crushed efficiency.
The crushed raw material can be discharged through the grinding chamber. Moreover, different size of raw material to be crushed can be got through exchanging screen with different mesh.

---
