Ceramic Laboratory Horizontal Bead Mill for Inkjet Ink

Product Description

DEGOLD bead mills and sand mills are suitable for continuous wet grinding of solids in liquid materials to reduce particle size. We produce following five series.

"Series ZM" horizontal bead mills:	grinding discs type bead mills
"Series ZM-X" horizontal bead mills:
"Series ZM-E" horizontal bead mills:
"Series ZM-K" horizontal bead mills:	pin type bead mills
"Series ZM-T" horizontal bead mills:	turbo type bead mills

Principle of Operation: The rotary grinding shaft drives all grinding mediums inside the grinding chamber. The grinding mediums passes the powers to the materials to reduce the particle size. Gap separator inside the horizontal bead mills separates the products and the grinding mediums. They are suitable for different viscosities formulations. Different materials inside the horizontal bead mills can be choosen, such as SS304, hard alloy, mold steel, polyurethane, tungsten carbide, ceramic etc.
Applications:

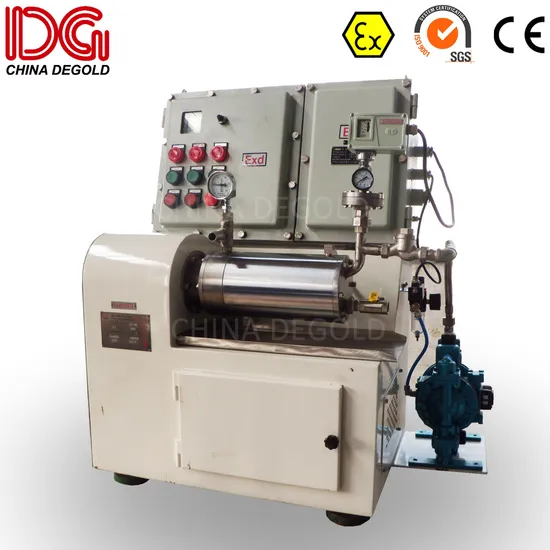

Lab horizontal bead mill- Model (ZM1.4 Series) Introduction: ZM1.4 Series lab horizontal bead mills are the wet grinding discs type bead mills for R&D and samples production. The grinding chamber volume is 1.4L. Specification: 1) Mechanical seal, dynamic gap separator. 2) Small sizes grinding mediums can be used to make sure the precise lab analyze data. 3) It's easy to disassemble the grinding chamber for cleaning and formulations changes. 4) Continuous grinding, espcially suitable for various small batches/samples production. 5) AC drive controlling. Option: 1) Different materials for inner grinding chamber and grinding discs selection includes the zirconia. 2) Different transfer pumps selection. 3) Ex proof or Non Ex proof selection for solvent based formulations and water based formulations.

	ZM1.4DB5511-X
Effective cylinder volume (liters)	1.4
Main motor power (kW)	2.2
Grinding shaft rotary speed (r/min)	0~2800
Adjustable range of mateirals flow(L/min)	0~1
Max. cooling water consumption (t/hr)	0.5
Pump pressure	0.7Mpa
Compressed air consumption (m 3 /min)	0.2
Dimension (L×W×H) mm	650×570×885
Net weight (kg)	500
