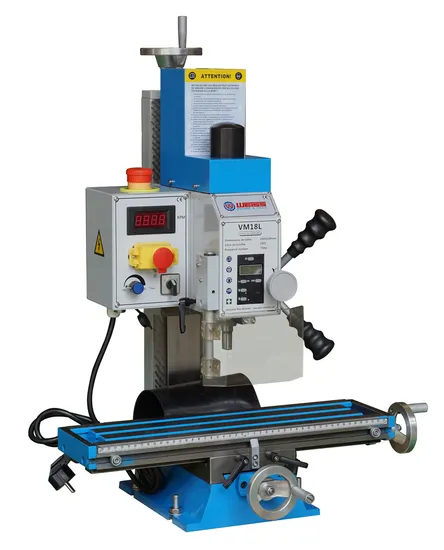

Weiss Vm18L High Quality Variable Speed Milling Machine with Brushless Motor

Product Description

Recommended Products

VM25L VM32L VM32B

1. Big powerful 1 HP (750W) Brushless DC Variable Speed Motor
2. Single speed tooth belt driving system with 100-2250 RPM speed, provides easy and reliable operation, super silence runnning
3. Super-rigid precision-ground dovetail headstock column and table ways, precision handwheel control for X, Y, and Z-axis
4. All leadscrews are true inch pitch screws, larger dials with 0.609mm graduate for easier reading
5. True color LCD screen 3-Axis DRO system with magnetic scale
Want TOP quality? Come to WEISS, you can get the excellent value!

SPECIFICATIONS		Standard Accessories	Optional Accessories
WEISS MODEL	VM18L
Item No.	10203180	Drill chuck 3-16/ B16	Tapping Function
Max. drilling capacity	18mm	Drawbar	Keyless Drill Chuck 3-16mm
Max. end milling capacity	16mm	Arbor MT2/B16-M10	ER 25 Collet Chucks MT2(8pcs)
Max. face milling capacity	50mm	Digital Depth Ruler	Vice BMS80
Table size	500x140mm	Spindle Cover with Micro Switch	HSS 19 pcs Drill sets
Table travel (X,Y)	220X160mm	Toolbox and tools	End Mill Sets 7pcs 4-16mm
T-slot	3x10mm		3-Axis DRO(Magnetic Scales)
Spindle taper	MT2		58pcs clamping kits M10
Spindle stroke	50mm		Oil Tray
Step of spindle speeds	Variable		Stand
Range of spindle speeds	100-2250rpm		Luxury Stand
Spindle incline angle	±90°
Distance from spindle to column	175mm
Distance from spindle nose to table	275mm
Motor	750W
Packing size	500x540x840mm
Net weight	60KG

Details Spindle
VM18L Variable speed enables to operate easily

Spindle is supported by high precision taper roller bearing

Spindle RPM can be monitored on the digital readout
Spindle movement can be monitored on depth ruler in both inch or metric way

Brushless Motor
· VM18L has 1HP POWERFUL brushless motor with silent running. Compare to old DC motor with brush, no need to change the carbon brush any more.
· High quality electronics used throughout machine for long term reliability
High efficiency, low maintenance, low energy consumption, quiet while running. The life is 6 times as long as normal ones.

VM18L precision manual fine down feed can be adjusted with the min. feed rate up to 0.609mm;
A clear chip guard with switch-off function on the spindle keeps debris from flying at the operator.
Single speed belt drive system provides more quiet and easy operation
avoid any failure prone plastic gears and the hassle of changing them when stripped (on old version mill)
GATES Tooth belt provide strong and precision transmission
Tapered gibs with double locks Dovetail:adjustable taper inserts Can be tiltled 90 degress
Factory and Delivery
Exhibition
FAQ
1. What is your Warranty? 1 year, including accessories. We always offerprofessional technical support and good after sale service.
2. Can we pay by L/C or others?
Yes ,you can make the payment by T/T, Paypal etc. 3. What is your payment terms?
30% down-payment after contract ,and 70% payment before shipment, Meanwhite it can be discussed according to your situation. 4. What is your lead time?
It depends on different machines with different configurations. Please contact us to confirm it is in stock or not. 5. Do you have CE certificate?
Yes, we have CE certification, machine quality is guaranteed.
6. Can we purchase the accessories only?
Yes, we sell accessories of our machines as well.

---
