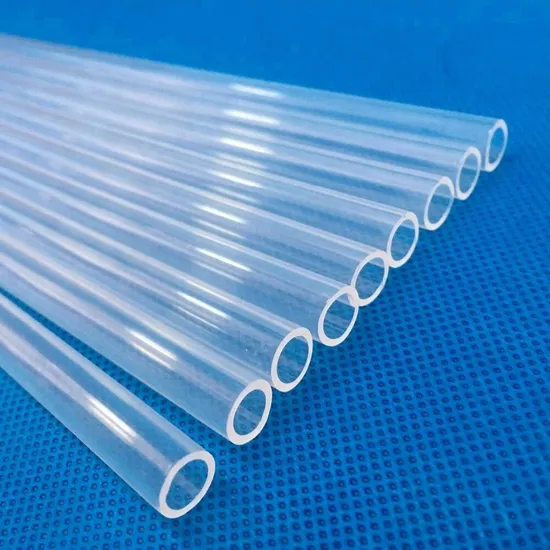

Neoflon PFA Tube with Material Ap230 for Fluids and Insultation

Product Description

Product Description
Neoflon PFA Tube with Material Ap230 for Fluids and Insultation
specification
PFA properties are similar to FEP in terms of its mechanical properties. These two are both superior To PTFE with regards to their flexibility, making them useful for tubing applications. Perhaps the most impressive feature of PFA material is its Electrical properties, as it features the dielectric constant of PTFE, and an almost identical dissipation factor, But a dielectric strength that is around four times higher.
1. Good folding and cracking resistance
2. High mechanical strength, 1.6 times of PTFE or more
3. Outstanding high/low temperature resistance
4. Chemical stability, electrical insulation
5. Self-lubrication, non-sticky
6. Good UV stability
7. Flame retardant, Abrasion resistant
8. FDA compliant grades available
Application
PFA is widely used in chemical anit-corrosion,mechanical seal, semiconductor, electrical insulation, pump&valve fluid, aviation and other relevant industries.
Products available:

PFA Moulded Tube (mm)
OD	LENGTH	NOTE
Φ30-Φ400	<=200	Special sizes can be customized
PFA Extruded Tube (mm)
OD*ID	KG/M	OD*ID	KG/M
2.0*1.0	0.005	10.0*7.0	0.088
3.0*1.0	0.014	11.0*9.0	0.069
3.0*2.0	0.009	12.0*10.0	0.076
3.5*2.5	0.01	13.0*10.0	0.12
4.0*3.0	0.012	14.0*12.0	0.09
4.0*2.0	0.021	16.0*14.0	0.104
4.5*3.5	0.014	17.0*15.0	0.111
5.0*3.0	0.028	18.0*16.0	0.118
5.0*4.0	0.016	19.0*17.0	0.125
6.0*4.0	0.035	20.0*16.0	0.25
8.0*5.0	0.068	21.0*19.0	0.139
8.0*6.0	0.049	22.0*20.0	0.146
8.0*7.0	0.026	24.0*20.0	0.305
9.0*6.0	0.078	26.0*23.0	0.255
9.0*7.0	0.056	.....
10.0*8.0	0.062	90.0*84	1.805
