US$0.25
5,000-9,999 Meters
US$0.22
10,000-49,999 Meters
Basic Info.
Sheath Material
Crosslinking
Material Shape
Round Wire
Wire Core Material
Tinned Wire
Certification
ISO, CE, IEC/En
Products Name
Solar Cable
Conductor
Tinned Copper Wire
Thermal Endurance Properties
25years
Standard
2 Pfg 1169/08.2007
Size
2.5mm2 4.0mm2 6.0mm2 10mm2
Sheathed Color
Black and Red
Transport Package
Soft Packing
Specification
2.5mm2 4.0mm2 6.0mm2 10mm2 16mm2
Origin
Hebei Province, China
Production Capacity
1000km/Week
Packaging & Delivery
Package Size
20.00cm * 20.00cm * 20.00cm
Package Gross Weight
5.000kg
Product Description

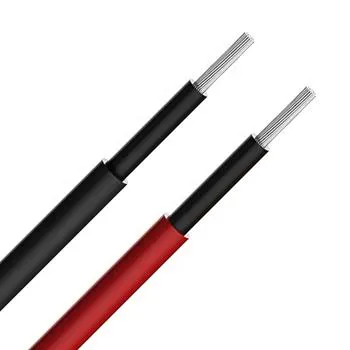

En 50618 and IEC 62930 standard PV DC Solar Copper or Aluminium PVC Power Cable 1 Application
TUV Approved Heat Resistant XLPE Insulated PV Cable for Solar Energy is used in a fixed installation, internal connection of solar panels. This product has excellent UV-resistant performance and is TUV approved.
2 Product Description (TUV and UL certificate)
1 .Standard: 2 PFG 1169 08.2007 and UL 4703
2 . Conductor Material: Stranded tinned copper
3. Insulation Material: XLPE
4. Sheath Material:XLPE
5. standard: TUV 2Pfg 1169 08.07
6. Rated voltage: AC Uo/U0.6~1.0KV, DC1.8KV
8.Ambient temperature: -40~+90C
9. The expected period of use: 25years
10. Flame rated IEC60332-1-2
3 Characteristic of solar cable:
1. Double insulation, electron beam cross-linked
2. Excellent resistance to UV, water, ozone, fluids, salt, general Weathering
3. Excellent resistance to abrasion
4. Halogen-free, flame retardant, low toxicity
5. Excellent flexibility and stripping performance
6. High current carrying capacity
7. TUV and UL approved
4 Datasheet of Solar cable:
| Sectional area (mm2) | 0.5 | 0.75 | 1 | 1.5 | 2.5 | 4 | 6 | 10 | 16 |
| Copper (Ω/km) | 36 | 24.5 | 18.1 | 12.1 | 7.41 | 4.61 | 3.08 | 1.83 | 1.15 |
| Tinned copper (Ω/km) | 36.7 | 24.8 | 18.2 | 12.2 | 7.56 | 4.7 | 3.11 | 1.84 | 1.16 |
| Sectional area (mm2) | 25 | 35 | 50 | 70 | 95 | 120 | 150 | 185 | 240 |
| Copper (Ω/km) | 0.727 | 0.524 | 0.387 | 0.268 | 0.193 | 0.153 | 0.124 | 0.0991 | 0.0754 |
| Tinned copper (Ω/km) | 0.734 | 0.529 | 0.391 | 0.27 | 0.195 | 0.154 | 0.126 | 0.1 | 0.0762 |
5 Packing of sloar cable:
>>
