Large Corn Harvester Machine Grain Harvester Hydraulic Drive Agricultural Machinery Large Combine Harvester with Cheap Price

Product Description

Product Description

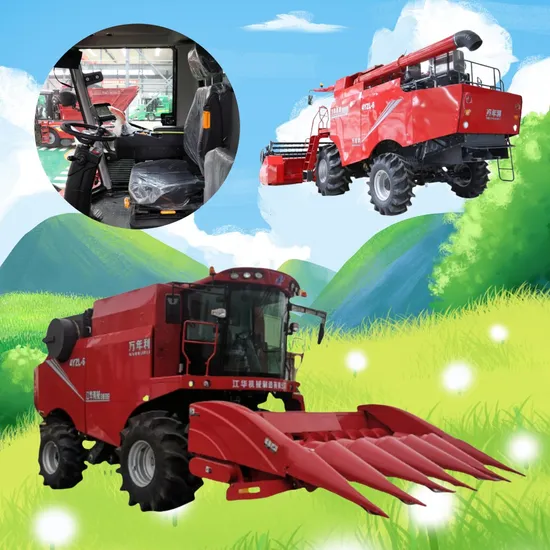

2024 Popular corn combine harvester 6 Rows corn cob picker machine
Jianghua 4YZL-6 Multifunction Cereal combine harvester is a machine that used to harvest grain crops, such as Corn, wheat, barley, and soybean. The combine harvester combines three separate operations: reaping, threshing, and Seperating.The reaping component of the combine harvester is responsible for harvesting the crops and separating the grain from the straw. The threshing component then removes the grain from the straw, while the seperating component removes any remaining chaff or debris from the grain.
Overall, the multifunction combine harvester reduced the amount of manual labor required to harvest crops and improving overall efficiency and productivity.

* Self-propelled machine, hydraulic steeples speed adjustment.
* Threshing type: Longitudinal axial flow
* Optimized bridge, Strong gearbox, Name brand engine, hydraulic control lifting, high reliable.
* Compact structure, advantages of agility, lower loss and impurities.
* HST transmission, Walking drive ability is stronger
* Increasing grain tank with Hydraulic discharge auger convenient to unloading

Product feature
Product Parameter

Product specification of combine harvester
Item description			unit	4YZL-6(Corn)	4LZ-13(wheat,soybean,sorghum)	Remark
Model			/	4YZL-6	4LZ-13
Structure type			/	Wheeled.Directly thresh.returning straw to the fields	Wheeled self-propelled full feed
Weight			kg	10450(line spacing 650) /10350(line spacing 600) /10250(line spacing 550)	12500
Dimension(L×W×H)			mm	10200×4165×3750(line spacing650) 10200×3880×3750(line spacing 600) 10200×3615×3750(line spacing 550)	9450×5800×3850
Gearbox			/	Mechanical gearbox+hydrostatic stepless transmission
Hourly productivity			hm2/h	0.6~1.5	0.6~1.5
Engine Part	Model No.		/	Yuchai YCA07P260-T400	Yuchai YCA07P260-T400 or Yuchai YC6J220-T300
	structure type		/	6-cylinder,Vertical, in-line, supercharged, intercooled, high pressure common rail	6-cylinder,Vertical, in-line, supercharged, intercooled, high pressure common rail
	rated power		KW	191	191/162
	rated speed		R/min	2200	2200
	Generator		V	24V alternator	24V alternator
	Fuel Consumption		kg/hm2	≤35	≤35
	Fuel Capacity		L	300	300
Walking Part	Drive mode	Front	/	Mechanical + hydraulic	Mechanical + hydraulic
		Rear	/	mechanical	mechanical
	Drive type		/	Four wheel drive	Four wheel drive
	Working Speed		km/h	1.5~6.0	1.5~6.0
	Work gear		/		3
	Min.ground clearance		mm	360	360
	Axle base		mm	3290	3290
	Guide wheel base		mm	2600	2600
	Drive wheel base		mm	2600	2600
	Guide wheel tire specifications		/	19.5L-24	19.5L-24
	Driving wheel tire specifications		/	28L-26	28L-26
Header	Cutting table auger type		/	/	Spiral gear type
	Cutter form		/	/	International standard type II
	Reel type		/	/	Eccentric spring gear type
	Dia.of reel		mm	/	Φ1130
	No.of reel slat		pcs	/	6
	Feeding rate		kg/s	/	13
	working width		mm	3980(line spacing 650) /3685(line spacing 600) /3435(line spacing 550)	5400
	Type of picking mechanism		/	Picking plate	/
	Cutting table type		/	horizontal type	/
	Number of picker rolls/plates		pcs	12	/
	Number of working lines (channels)		pcs	6	/
	line spacing		mm	650/600/550	/
Threshing & cleaning &Grain-unload	Threshing Rotor	Type	/	longitudianl axial flow	longitudianl axial flow
		QTY	/	1	1
		Size (outside diameter*length)	mm	610*3050	610*3050
	fan	qty	pcs	1	1
		type	/	Tubular	Tubular
		Diameter	mm	φ293	φ293
	cleaning	Concave screen type	/	Type of grid	Type of grid
		Cleaning screen type	/	Fish scale sieve type	Fish scale sieve type
	Grain-unload	Method of discharging grain	/	Mechanical automatic unloading of grain	Mechanical automatic unloading of grain
Cabin	Cabin with A/C,with display equiped with 3-ways video to watch the rear tires and rear of machine and grain tank,and with suspension seat,auxiliary seat and hydrostatic clutch.		/	Luxury sealed cab	Luxury sealed cab
			/	air conditioner	air conditioner
			/	RVC and Multimedia display	RVC and Multimedia display
			/	Seat with armrest and alternate seat	Seat with armrest and alternate seat

Company Profile
Exhibition Packaging & Shipping
We provide professional packaging and transportation to ensure your goods arrive safely at destination.
Shipping by truck, Container, roll on/roll off ship and bulk ship.
Choosing the right shipping method for you at Jianghua Machinery Manufacture.


After sales service1, Training how to install the machine, training how to use the machine, free technical support for lifetime.2, Provide English user manual and English catalogue materials.3, Big order, Module replacement even product design.
Why to choose us
1, We have the most extensive international service experience;2, We understand the targeted modifications for your farmland;3, We provide customers with lifetime technical support (Be professional);4, Our products have the strongest quality and competitiveness.5, If you are afraid that the price is too high, you can ask if there is a discount, there may be surprises.
