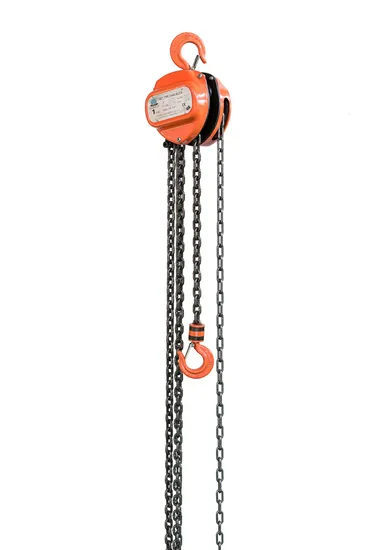

HS-C Type 1 Ton 2.5 Meter Hand Manual Chain Hoist with CE and GS Certification

US$30.00-40.00 100 set (MOQ)

Basic Info.

Model NO.
HS-C
Application
Double Beam Crane, Gantry Crane, Bridge Crane, Tower Crane, Single Grinder Crane, Lifting Platform, Small Crane, Lifting
Type
Chain Hoist
Sling Type
Chain
Lift Speed
<2m/min
Maximum Lifting Height
3m
Chain Falls
1
Certification
CE, ISO9001:2000, GS
Condition
New
Color
Orange
Model
HS-C1
Capacity(T)
1
Standard Lift(M)
2.5
Running Test Load(T)
1.5
The Min. Distance Between Two Hook(mm)
306
Load Chain Columns
1
Diameter(mm)
6
Packing Size(Cm)
30*24*18
Net Weight(Kg)
10
Gross Weight(Kg)
13
Transport Package
Wooden Case or Carton
Specification
CE&GS by TUV
Trademark
SHUANG GE
Origin
China
HS Code
8425190000
Production Capacity
350, 000 Set Per Year

Product Description


HSC
Compact, light yet durable.
High efficiency and small pulling effort at full load.
Reliable, safe in operaion and low maintenance.
Double pawls supporting fall-safe brake mechanism.
Model HS-C0.5 HS-C1 HS-C1.5 HS-C2 HS-C3 HS-C5 HS-C10
Capacity tons 0.5 1 1.5 2 3 5 10
Standard lift m 2.5 2.5 2.5 2.5 3 3 3
Running Test Load Kn 0.75 1.5 2.25 3 4.5 6.25 12.5
Effort required to lift rated load N 221 304 343 314 343 383 392
Strands of load chain 1 1 1 2 2 2 4
Load chain diameter mm 6 6 8 6 8 10 10
Dimensions(mm) A 125 147 183 147 183 215 360
B 111 126 141 126 141 163 163
C 24 28 34 34 38 48 64
D 134 154 192 154 192 224 224
Min.Diatance between both hooks mm 255 306 368 444 486 616 700
Net weight kg 8 10 16 14 24 36 68
Gross weight kg 10 13 20 17 28 45 83
Package size(L*W*H) cm3 28×21×17 30×24×18 38×33×20 33×28×19 38×33×20 45×39×24 55×51×29
Extra weight per meter of extra lift kg 1.7 1.7 2.3 2.5 3.7 5.3 9.7
