Product Description
Product Description

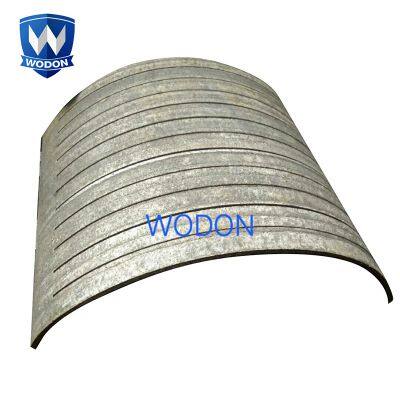

cold rolled wear liner
Wodon super wear resistant steel plate with chromium carbide overlay
Our company R&D producted bimetallic wear plate have four different types.
1. generally wear plate with Open arc welding: base plate + chromium carbide abrasion resistant welding layer with good abrasion resistance, Hardness HRC 55-63 (HV 600-780) and chemical compostion C: 2.5-5.0% Cr: 20-30 %
2. super wear plate with Submerged arc welding: base plate + high chromium carbide abrasion resistant welding layer with super good abrasion resistance, Hardness HRC 58-65 (HV 600-780) and chemical compostion C: 3.0-5.5 % Cr: 25-40 %
3. wear plate with Impact resistance: base plate + chromium matrix with other metallelementes resistant welding layer with good impact resistance and super good abrasion resistance
4. wear plate with Heat resistance: base plate + chromium matrix with other metallelementes resistant welding layer with good heat resistance (up to 900 °C) and super good abrasion
Product Specifications and Customization
Wodon Bimetallic Wear Plate with Abrasion, Impact, and Heat Resistance
Category
| Details
|
Product Name
| Wodon Manufactured Bimetallic Wear Plate with Abrasion, Impact, and Heat Resistance
|
Material
| Q235/Q345 Steel + Chromium Carbide Overlay Alloy
|
Certificate
| ISO 9001:2008
|
Chemical Composition
| C: 3.0% to 5.0%, Cr: 25% to 40%
|
Microstructure
| Chromium carbide hard particles volume fraction > 50%
|
Maximum Hardness
| Chromium carbide hardness: HV 1800
|
Key Features
Feature
| Details
|
Wear Resistance
| 30 times higher than low carbon steel, 12 times higher than heat-treated steel
|
Impact Resistance
| Can withstand medium impact
|
Temperature Resistance
| Up to 600°C, customizable up to 900°C
|
Flatness Tolerance
| ± 3 mm/m
|
Thickness Tolerance
| Uniform overlay thickness with a tolerance of 0 to 0.5 mm
|
Surface Treatment
| Hardfacing, cladding, open arc welding, submerged arc welding
|
Standard Sizes
Welding Type
| Dimensions
|
Open Arc Welding
| 1400 x 3400 mm (customizable)
|
Submerged Arc Welding
| 1400 x 3000 mm, 1400 x 3500 mm, 2100 x 3500 mm (custom sizes available)
|
Main Thicknesses (mm)
Thickness Combination
| Available Sizes
|
3 on 3, 4 on 4, 5 on 5
| ✓
|
4 on 6, 5 on 6, 6 on 6, 8 on 6
| ✓
|
4 on 8, 5 on 8, 6 on 8, 7 on 8, 8 on 8
| ✓
|
4 on 10, 5 on 10, 6 on 10, 7 on 10, 8 on 10, 9 on 10, 10 on 10, 20 on 10
| ✓
|
4 on 12, 5 on 12, 6 on 12, 7 on 12, 8 on 12, 10 on 12, 11 on 12, 12 on 12
| ✓
|
6 on 14, 8 on 14, 10 on 14
| ✓
|
6 on 16, 8 on 16, 10 on 16
| ✓
|
6 on 18, 8 on 18, 10 on 18
| ✓
|
5 on 20, 6 on 20, 8 on 20, 10 on 20, 20 on 20, 10 on 30, 10 on 40
| ✓
|
Customized Sizes
| ✓
|
Applications
· Industries: Mining, construction, cement, steel, power industries
· Applications: Hoppers, chutes, crushers, mills, and other high-wear, high-impact environments
Customization Services
• Size Customization: We can customize non-standard wear-resistant steel plates based on customer drawings and size requirements to meet the needs of special equipment and conditions.
• Thickness Customization: Customizable combinations of base plate and wear-resistant layers in various thicknesses to suit different wear levels and load-bearing requirements.
• Processing Customization: We provide cutting, bending, stamping, welding, and other processing services to create finished parts according to customer design requirements, saving processing time and costs.
Quality Assurance and Testing
Quality Control Team
• Professional Team: Our expert team consists of professionals with bachelor's degrees in materials science, led by a master's degree holder in materials science. They strictly follow company policies to regularly inspect raw materials, production processes, and finished products.
• Advanced Equipment: Equipped with advanced laboratory equipment, including Rockwell hardness testers, portable spectrometers, portable hardness testers, portable ultrasonic thickness gauges, wear testers, metallographic analysis equipment, etc., to ensure the chemical composition, hardness, thickness, and wear performance meet high standards.
Testing Items
• Chemical Composition Testing: We use portable spectrometers to quickly and accurately detect the chemical composition of materials to ensure compliance with specified carbon and chromium contents.
• Hardness Testing: We test the product hardness using Rockwell hardness testers and portable hardness testers to ensure surface hardness and wear layer hardness meet the required ranges.
• Thickness Testing: We use portable ultrasonic thickness gauges to measure the product thickness, ensuring size accuracy and uniformity.
• Wear Performance Testing: We use wear testers to simulate actual working conditions and assess the wear performance, ensuring the product has excellent wear resistance during use.
• Metallographic Analysis: We analyze the metallurgical structure using metallographic analysis equipment to check the volume fraction and distribution of chromium carbide, ensuring optimized material structure and stable performance.
Logistics and After-Sales Service
Packaging and Transportation
• Packaging: We use steel pallets, non-fumigated pallets, plastic films, and other packaging methods, with customized packaging solutions available to ensure safe and intact transport.
• Transportation: Products are usually transported in 20-foot or 40-foot containers, with delivery times typically ranging from 7 to 15 days depending on order quantity.
After-Sales Service
• Professional Support: Our after-sales service team has extensive experience in hard-facing products and their applications, and can quickly respond to customer inquiries and issues, typically resolving them within 12 hours of notification.
• Equipment Operation Support: The team is also skilled in operating hard-facing equipment and can assist customers in resolving equipment-related issues, ensuring smooth equipment operation and correct product use.
Frequently Asked Questions
Q: Are you a trading company or a manufacturer?
A: We are a manufacturer with 3 factories, an internal sales department, and a specialized inspection and technical department, allowing us to independently produce and offer high-quality products and services.
Q: What is your delivery time?
A: If the product is in stock, delivery time is 5-10 days; if out of stock, delivery time is 15-20 days, depending on the order quantity.
Q: Do you provide samples? Are they free or chargeable?
A: Yes, we provide free samples to allow customers to better understand the product's performance and quality.
Q: What are your payment terms?
A: Payment terms are 30% prepayment, with the balance paid after the bill of lading copy is issued. We offer flexible payment options including FOB, CIF, CFR, etc.
Contact Us
If you have any questions or need more information about Wodon Super Wear-Resistant Steel Plates, please feel free to contact us. We are dedicated to serving you.
Company Profile
Jiangsu Wodon Wear Resistant New Material Co., Ltd.
Jiangsu Wodon Wear Resistant New Material Co., Ltd. (China Wodon) is a manufacturing factory specializing in the development and production of wear resistant materials. We are headquartered in Jiangsu. There are over 500 staff, including 60 experienced R&D engineers. Our main products include: chromium carbide overlay (CCO) wear plates, flux cored hardfacing welding wires, etc. With independent intellectual property rights and a number of patents, it has a strong R&D and debugging team, which can provide customers with a streamlined service.Since its inception, with the huge investment and independent technology research and innovation, Wodon has been taking the lead in providing premium quality CCO wear plates, hardfacing welding wires as well as excellent repairing technique, all of which win trust and acceptance from our clients worldwide. Meanwhile, the company also employs many experts and professors in the wear resistant industry as the company's technical consultant to ensure strong technical strength and production capacity, we are dedicated to providing quality and cost-effective wear solutions that completely fulfill the requirements of clients.
