Basic Info.
Model NO.
4G80 4G100 4G120
Application
Rice, Corn, Wheat, Soybean, Alfalfa
Portable Harvester Type
Walking Tractor Reaper
Application Field
Agriculture, Garden
Engine
Diesel or Gasoline
Implements
Rotary Tiller,Harvester ,Mower, etc
Transport Package
Wooden Box
Specification
103*90*55CM
Production Capacity
600PCS/Day
Product Description
Product Description

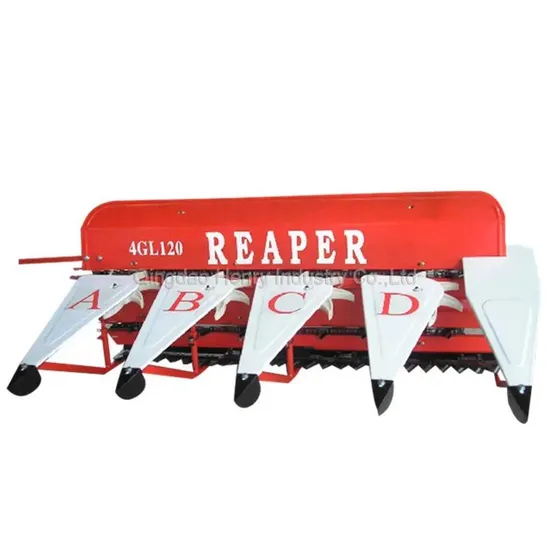

Agricultural Machine Rice and Wheat Alfalfa Reaper
Cheap Agriculture 4G120A Wheel Mini Rice Wheat Cutter1, use: harvesting rice, wheat, sesame, soybean, forage and other individual plant is widely used in the plains, hills, slopes, narrow field intercropping and other plots;
2, features: small, hand-held, self-propelled;
3, Function: harvesting lateral rows placement;
4, the advantages: small size, light weight, low fuel consumption and flexible maneuverability, easy operation and effort, and low cut stubble;
5, matching power: 20-40hp tractor.
Parameter of rice wheat cutter
Model | 4G120A |
Cutting Width(mm) | 1200 |
Placing Type | Sidewise&Banded Placed |
Productivity(m2/hour) | 2000-3000 |
Matched Power(Kw) | 3.64(4.5hp)/6.6(9hp) diesel engine/ gasoline engine |
Overall Dimension:L*W*H(m) | 1.47*1.07*0.65 |
N.W/G.W (KG) | 220/260 |
odel
| 4GL80
| 4GL100
| 4GL120
| 4GL150
| 4GL180
|
Cutting Width(mm)
| 800
| 1000
| 1200
| 1500
| 1800
|
Mini Cutting Height(mm)
| ≥30
| ≥30
| ≥50
| ≥30-50
| ≥50
|
Placing Type
| Sidewise & Banded Placed
| Sidewise & Banded Placed
| Sidewise & Banded Placed
| Sidewise & Banded Placed
| Sidewise & Banded Placed
|
Productivity
| 1300-2000
| 1600-2300
| 2000-3000
| 2300-3000
| 3000-3600
|
Matched Power
| Matched with Mini Tiller
| Matched with 12-18HP Self Propelled Tractor
| Matched with 12-18HP Self Propelled Tractor
| Matched with 12-22HP
| matched with four wheel tractor
|
Net Weight(kg)
| 60
| 70
| 90
| 110
| 170
|
Gross Weight(kg)
| 90
| 100
| 120
| 140
| 220
|
Packing Size(L*W*H)
| 1.10*0.75*0.65
| 1.25*0.75*0.65
| 1.45*0.75*0.65
| 1.8*0.75*0.65
| 2.1*0.65*0.7
|
Qingdao Henry Industry Co.,Ltd.,
Our company is located in the west coast of beautiful port city - Qingdao, where there are elegant scenery and limitless business chances. It is close to the sea port, and airport,train station, enjoying very convenient transportation. We are one of the leading manufacturer in Shandong china for agricultural machineries and industry protect products. its total
assets of RMB 1 billion , employee over 1500. Including agricultural machinery ,rubber products, gloves. The farm machinery main
including : Single cylinder diesel engines, two wheel tractors ,mini tillers(diesel engine and gasoline engine), four wheel
tractors ,trailers ,rice planters and harvester machinery, and kinds of farm Accessories and so on.
WELCOME TO VIST US AT ANY TIME !
>>
