US$2,800.00-6,800.00
|
1 Piece
(MOQ)
|
Basic Info.
Usage
Special Excavator, Marine Excavator, Mining Excavator, GM Excavator, Household Excavator
Transmission
Hydraulic Transmission
Drive Type
Internal Combustion Drive
Bucket Capacity
0.1~0.5m³
Certification
CE, ISO9001: 2000, SGS BV TUV
Volume of Fuel Tank
5.5 L
Max.Digging Height
2490mm
Max.Dumping Height
1745mm
Max.Digging Radius
2940mm
Max.Vertical Digging Depth
1655mm
Bucket Excavating Force
6.5 Kn
Excavator Height
Without Canopy 2030mm
Overall Dimension ( Lxwxh)
Without Canopy 2870*930*2030mm
Services
OEM and ODM Provide
Transport Package
Fob CIF
Specification
2500*720*1350mm
Production Capacity
500sets/Month
Packaging & Delivery
Package Size
500.00cm * 500.00cm * 500.00cm
Package Gross Weight
1000.000kg

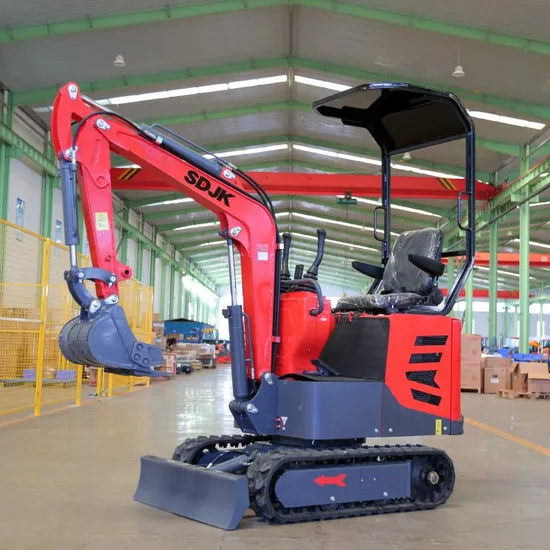

Product Description
Factory Direct Sales to Ensure Quality And Price 365 Days Warranty Srevice
Total length (during transportation) | A | 2870mm |
Overall width (transportation/operation) | B | 930mm |
Total height (with/without canopy) | C | 2285(2030)mm |
Dozer blade width | D | 937mm |
Dozer blade height | | 210mm |
Track center distance | E | 746mm |
Standard track shoe width | | 180mm |
Platform ground clearance | | 405mm |
Standard bucket width (with/without side teeth) | | 380/330mm |
Track length | | 1200mm |
Maximum digging height | F | 2490mm |
Maximum unloading height | G | 1745mm |
Maximum digging depth | H | 1725mm |
Maximum vertical boom digging depth | I | 1655mm |
Maximum digging distance | J | 3030mm |
Minimum turning radius of front end | K | 1490mm |
Maximum digging distance | L | 2940mm |
Maximum bulldozing height | M | 170mm |
Deepest bulldozing height | N | 240mm |
Speed | | Hydraulic fluid capacity | |
Maximum travel speed | 1.2km/h | Work pressure | 16MPa |
Swing speed | 9rpm | Hydraulic oil tank capacity | 18L |
Maximum climbing ability | 30° | Engine oil capacity | 1.65L |
Maximum digging force | 6.5 | Fuel tank capacity | 5.5L |
Company Profile
Founded in 2004, Shandong JK Machinery Co., Ltd is a manufacturer and trader, specialized in the research and development, sales and service of crawler excavators and wheel excavators, wheel loaders, backhoe loaders and skid steer loaders, road rollers, and other construction machines like pile drivers and drilling rigs, bulldozers and motor graders. We are located in Jining city, which is a well-known traditional and prosperous machinery industry base in North China. Committed to providing quality products and services, JK employs 40 experienced technical and management personnel. Over the past few years of production and management and exploration, JK set up its own quality management system and service system. We make all of our products comply with international quality standards and are greatly appreciated in a variety of different markets throughout the world. Selling well in 300 cities and 30 provinces around China, our products are also exported to more than 20 countries and regions all over the world. And we will keep working hard and increase investment to improve our quality and service for many years in the future. We also welcome OEM and ODM orders. Whether selecting a current product from our catalog or seeking engineering assistance for your application, you can talk to our customer service center about your sourcing requirements. We sincerely welcome clients and friends to visit us and join us.
Certificate
Our Service
Rich experience professional sales team.
OEM service available.
Process visualization.
365 days warranty srevice.
24/7 one-on-one professional after-sales guide online
FAQ 1.Are you original manufacturer?
Yes,we sdjk are a manufacturer in construction machinery in China and we have the whole series products you need
2.What kind terms of payment can be accepted?
T/T, L/C at sight, Trade Assurance on etc.
3.Which incoterms terms can we work?
Normally we work on FOB,CFR,CIF,FCA,CIP,CPT
4.What about the delivery time?
7days after receving the deposit
5.What about the warranty time?
12 months after shipment, engine is 6 months
6.What about the minimum order quantity?
The MOQ is 1 set
7.Could you stick customers brand on the products?
>>
