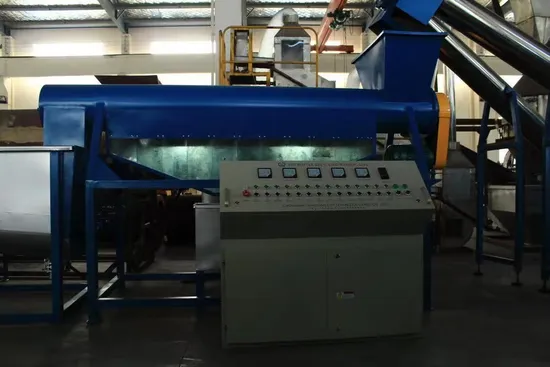

Pet/PE/PP/PVC Bottle Recycling Machine (crushing/washing/drying)

Product Description

Waste Bottle Recycling Machine
We can manufacturing the production line according to the customer requirement and final flakes quality requirements;
This production line is high automatic operating and save labor cost and low after maintenance. Our machinery is widely used in domestic and abroad in many countries;
Features of Waste Bottle Recycling Machine:
1. We have the Bale opening and feeding system which and equally feeding the material save labor(choice);
2. You can use the manually sorting system to selecting out different color bottles and non-PET material;
3- Metal detector is optional for you which used to take out any kind of metal from the PET bottles;
4- Specially designed PET bottle Crusher Machine can easily get high output and with water doing wet griding can extension the blades use life, reduce the dust generation;
5- High speed Dewatering machine and the drying system can guarantee the final PET flakes moisture <1%.
6- The Fin dust separator machine will remove the final labels from the flakes to guarantee the PVC content..
Raw Material of Waste Pet Bottle Recycling Machine
Bottles
Capacity Model of Waste Pet Bottle Recycling Machine
300kg/h ,500kg/hr, 1000kg/hr, 1500kg/hr, 2000kg/hr, 3000kg/hr

Machine List Components of Waste Pet Bottle Recycling Machine:
Label Remover machine(choice)---Sorting system(choice)---PET Crusher machine---Flakes Floating washing tank---Hot Washing system,---Frication washing system---dewatering machinery and fin dust label separator machine---hot air drying system and the Packing system

Machine Features: (Waste Pet Bottle Recycling Machine)
· Plastic Bottle Recycling Machine
Function description: ( Waste Pet Bottle Recycling Machine )
· Plastic Bottle Recycling Machine
Quality Control: (Waste Pet Bottle Recycling Machine)
· Maunfactory have technical, engineer team design the sample machinery before enter into market
· Production QC team ensure the machine manufacturing quality
· We will running every machine after finished before shipment
· Optional choose by client running the machinery by material
Service System: ( Waste Pet Bottle Recycling Machine)
· Pre-sale: we given client the details technician offer, sign the sales contract etc.
· In-sales: we supply the details layout, installation instruction, technician support for the clients;
· After sales: we arrange engineer to install the machinery and training the workers for client;
· We have 24hours team to solve the after sales problem;
· We have free spare parts with the machine;
PE,PP bottles crushing and washing line (Capacity: 200-2000kg/hr):
No.
Equipment Name
Total Power
Quantity
Comments
1
Belt Conveyor
1.1-2.2kw
1-2 set
2
Wet Crusher
30-132kw
1-2 set
3
Screw Feeder
2.2-4kw
1 set
According to particular condition
4
Screw Feeder
1.5-4kw
1 set
5
Friction Washer
15-55.75kw
1-2 set
6
Film Washing Tank
3-8.1kw
1 set
7
Screw Feeder
1.5-4kw
1 set
8
Horizontal Dewatering Machine
22-56kw
1-2 set
9
Drying System
33-51kw
1 set
10
Storager Silo
0.5-2CBM
1 set
11
Control System
1,UL or CE electric parts
2,Using Omron temperature controller, Siemens contactor
1 set
Milk bottles washing line:
Milk bottles are basically different in different countries some having printed labels which will require label remover, blowers to wash, separate and dry the materials to reach optimum conditions.
We can designed washing lines to suit different needs. Capacity range is 200kg/h-2000kg/h.
200-2000kg/h Milk bottles washing line:
No.
Equipment Name
Total Power
Quantity
Comments
1
Cutting compaction machine
1.1-2.2kw
1 set
2
Crusher
30-90kw
1 set
3
Screw feeder
1.5-4kw
1 set
4
Friction washing machine
15-55.75kw
1 set
5
Film washing tank
5-8.1kw
1 set
6
Film washing tank
3-5.9kw
1 set
7
Screw feeder
1.5-4kw
1 set
8
Horizontal Dewatering Machine
15-55.75kw
1-2 set
9
Drying System
33-51kw
1 set
10
Storage Silo
0.5-2m3
1 set
12
Control System
1,UL or CE electric parts
2,Using Omron temperature controller, Siemens contactor
1 set
500-2000kg/h PET BOTTLES washing line Configuration:
No.
Equipment Name
Total Power
Quantity
Comments
1
Bale opener
15-18.7kw
1 set
2
Belt Conveyor
1.1-3kw
1 set
3
Roller screening machine
4-7.5kw
1 set
4
Belt Conveyor
1.1-3kw
1 set
5
Label remover machine
20.5-29.5kw
1 set
6
Belt Conveyor
1.1-3kw
1 set
7
Belt conveyor for sorting
2.2-5.5kw
1 set
8
Belt conveyor
1.1-3kw
1-2 set
9
Crusher
30-160kw
1-2 set
10
Screw feeder
2.2-4kw
1 set
To see whether the actual
11
Screw feeder
2.2-5.5kw
1 set
12
Washing tank
12.3-14.5kw
1 set
13
Screw feeder
2.2-5.5kw
1 set
14
Steam Washer
7.5-26.8kw
1 set
15
Screw feeder
2.2-5.5kw
1 set
16
Friction washing machine
22.75-90.5kw
1-2 set
17
Washing tank
12.3-14.5kw
1 set
18
Screw feeder
2.2-5.5kw
1 set
19
Horizontal Dewatering Machine
22.75-90.5kw
2 set
20
Cyclone separator
0.5-1
1 set
To see whether the actual
21
Drying system
40-70kw
1 set
22
Label separator machine
3.7-5.5kw
1 set
23
Air transportation system
5.5-15kw
1 set
24
Storage silo
1-2m3
1 set
25
Control System
1,UL or CE Electric parts
2,Using Omron temperature controller, Siemens contactor
1 set

---
