US$5,000.00-15,500.00
|
1 Piece
(MOQ)
|
Basic Info.
Model NO.
3HE-MF200W 300W 400W 500W 600W
Power Density
Deep Fusion Welding
Laser Classification
YAG Laser
Type

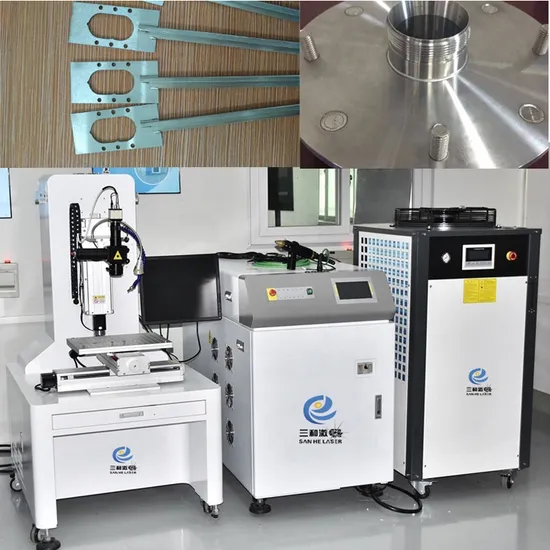

Automatic Laser Welding Machine
Machine Model
3he-Mf200W/300W/400W/500W/600W
Host System Dimension
1500*700*1000mm
Machine Power Consumeption
10kw-12kw
Electrical Reuqirement
380V+(-)10%/50Hz/60A
Aiming and Positioning
CCD and Red Right
Colling Method
Water Cooling
Adjustable Facula Size
0.2-3mm
Origin
Dongguan Guangdong
Production Capacity
200set/Month
Product Description
Technical parameters
Machine model | 3HE-MF200W | 3HE-MF400W | 3HE-600W |
Max. laser power | 200W | 400W | 600W |
Max. Pulse energy | 90J | 90J | 110J |
Laser wavelength | 1064nm |
Wave pattern | double pulse |
Welding depth | 0.1-1.5mm | 0.1-3mm |
Pulse width | 0.2-20ms |
Continuous laser welding frequency | 100Hz |
Adjustable beam range | 0.2-3mm |
Fiber length | 3m / 5m / 10m / 20m |
Machine power | ≤6KW | ≤12KW | ≤18KW |
Electricity demand | AC220V 10% / 50Hz 30A | AC220V 10% / 50Hz 40A | AC220V 10% / 50Hz 60A |
Product Application :
This kind of machine is widely used in communications devices , IT ,medical , electronics , batteries tab-lead , fiber-optic coupling
devices , CRT electronic gun , metal parts , cell phone vibrating motors , clocks precision parts , automotive sheet steel optical
communications industry copper parts , aluminum parts etc precision welding .
Product Features :
1.Welding beam energy distribution , have the best spot for welding needs .
2.Applicable to all kinds of complex welding , welding of various devices , and 1.5mm sheet welds .
3.United Kingdom imports ceramic condenser cavity , corrosion-resistant , high temperature , long life .
4.Hand-held machine is more convenient , the limit of space and work piece is small ,welding flexibility and
convenience ,up to 3 m optical fiber , can be equipped with 5 m fiber optic . The whole machine adopts double fiber ,
soft optical path is good ,the activity is strong .
5.Optional CCD camera surveillance system , allowing easy observation and precise positioning .
6.Customizable automation tools , can meet mass production of products .
7.With real-time energy-feedback ,output energy is more accurate and more stable .(optional)
Laser welding machine video link:
Laser welding round tube | https://sanhe-laser.en.made-in-china.com |
Laser welding square tube | https://sanhe-laser.en.made-in-china.com |
Laser welding "U"tube | https://sanhe-laser.en.made-in-china.com |
Robot laser welding/6-DOF space mainpulator | https://sanhe-laser.en.made-in-china.com |
Sensor seal laser welding | https://youtu.be/na5oRKT7hJQ |
We aim high for the satisfication of the clients,
Contract us
