Bimetallic Extruder Screw Barrel with Tungsten Carbide 29

US$1,550.00 1 Set (MOQ)

Basic Info.

Model NO.
ALVEN24112129
Standard
DIN, ASTM, GOST, GB, JIS, ANSI, BS
Technics
Casting
Feature
Recycle
Material
Alloy Steel
Material More
38 Crmoala(JIS Sacm645); 42 Crmo(AISI 4140) Cr12mo
Nitrided Hardness
Hv900°~1000°
Hardness After Hardening and Tempering
Hb260 °
Nitrided Depth
0.5~0.7mm
Nitrided Brittleness
Above 2 Stage
Surface Roughness
Ra0.4
Screw Straightness
0.015mm
Hardess of Surface Chromium-Plating Afte
Hv≥950hv
Chromium Plating Depth
0.05~0.10mm
Alloy Depth
0.8~3.0mm
Alloy Hardness
HRC56°~65°
Alloy(Bimetallic)
Iron,Nickel,Tungsten,Molybdenum
Types of Screw Barrel
Gradual Type,Mutant Type,Wave Type,Barrier Type,Do
Transport Package
Wooden Boxes
Trademark
ALVEN MACHINERY
Origin
Zhoushan of Zhejiang in China
HS Code
8477900000
Production Capacity
100sets/Month

Product Description

Product Description
Technical Parameters:
Diameter: Ø15-Ø300
L/D ratio:15-55
Or other according to requirement, we are rich experience in producing and designing!
Product Plastic extruder screws barrels
Material 38 CrMoAlA(JIS SACM645); 42 CrMo(AISI 4140)
Cr12MoV(JIS SKD-11);4Cr5MoSiV1(JIS SKD-61)
Nitrided Hardness HV900°~1000°
Hardness after hardening and tempering HB260 °
Nitrided Depth 0.5~0.7mm
Nitrided Brittleness above 2 stage
Surface Roughness Ra0.4
Screw straightness 0.015mm
Hardess of surface chromium-plating after Nitriding HV≥950HV
Chromium plating Depth 0.05~0.10mm
Alloy Depth 0.8~3.0mm
Alloy hardness HRC56°~65°
Alloy(bimetallic) iron,nickel,tungsten,molybdenum
Types of screw barrel Gradual type,mutant type,wave type,barrier type,double screen type,shunt type,separation type,exhaust type,pin type,mixed type,double-head type,three-head type,multi head type etc.


Scope of application
WPC sheet,pallets,pinch,pipe,profiles,soft pvc,pvc foam sheet,film,tape,recycled,tape tube,water pipe,drainage pipe,etc.
For good plasticizing effect,we have different designs of screw and barrel for extruder or injection to meet customer's demand.Our factory manufactures with high-quality material, applying the method of hardening and tempering and nitriding, thus it enjoys the characteristics of long working life, wear resistance, and anti corrosion. Besides, the technique of hard alloy spraying or chrome plating can be used on the working surface of screw, which will make it have better using effectiveness.

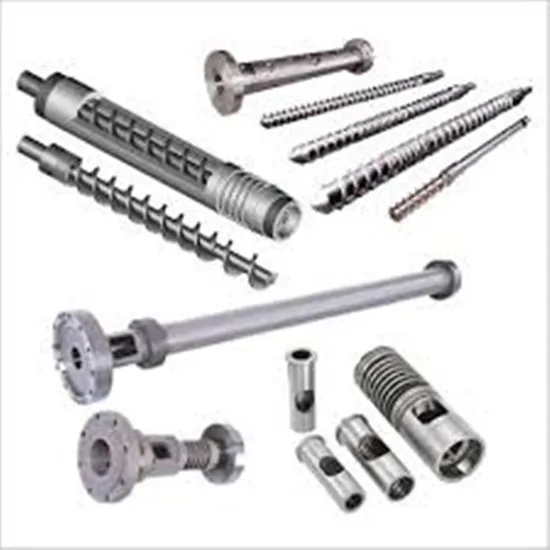

Detailed Photos
OUR EXHIBITION
FAQ
Our advantages:
1. Screw and barrel for various models
2. Professional engineers design for you
3. Over 20-year exprience in this line
4. Insist on developing screw and barrel for more injection and extruder machine models
5. Main market: Southeast Asia,Eastern Europe, South America,Africa
