US$1,000.00-1,250.00
|
1 20GP
(MOQ)
|
Basic Info.
Certification
CCC, EEC, CE
Engine Size
125cc/150cc/250cc
Braking Mode
Front and Rear Disc Brakes
Cooling Method
Air Cooling
Transport Package
SKD/CKD
Specification
2010*780*1080
Production Capacity
70000 Pieces/Year
Product Description
1.Specification
DIMENSION | CHASSIS |
L*W*H (mm): | 2010*780*1080 | Front brake: | disc brake |
Wheelbase (mm):
| 1300 | Rear brake: | disc brake |
Seat to Ground Height (mm):
| 820 | Front tire: | 110/70-17 |
MIN Ground Clearance (mm):
| 180 | Rear tire: | 140/70-17 |
Dry weight (kgs): | 120 | | |
Fuel capacity (L): | 14 | | |
|
ENGINE 150cc | ENGINE 200cc | ENGINE 250cc |
Type: | Single cylinder, four stroke, air-cool | Type: | air-cool,single cylinder,four stroke | Type: | air-cool,single cylinder,four stroke |
Displacement: | 150CC | Displacement: | 200CC | Displacement: | 250 |
Max speed (km/h): | 100 km/h | Max speed (km/h): | 110 km/h | Max speed (km/h): | 125 |
Bore x Stroke(mm): | 57.3 x 57.8 | Bore x Stroke(mm): | 62 * 57.8 | Bore x Stroke(mm): | 65.5 x 59 |
Max power (kw/rpm):
| 8.5/8000 | Max power (kw/rpm):
| 9.6/7500 | Max power (kw/rpm):
| 12.5/7500 |
Max torque (N.m/rpm):
| 11.5/6500 | Max torque (N.m/rpm):
| 13.6/5500 | Max torque (N.m/rpm):
| 16.5/6500 |
Start System | Electric / Kick | Start System | Electric / Kick | Start System | Electric |
Transmission: | 5 GEARS | Transmission: | 5 GEARS | Transmission: | 6 |
Compression ratio: | 9.2:1 | Compression ratio: | 9.0:1 | Ignition mode: | CDI |
2.Description

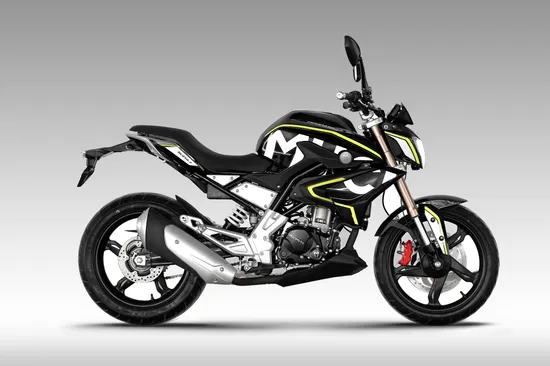

★ High Performance Street Motorcycle.
★ With Front & Rear Disc Brake System.
★ With Special New Design, Inverted abdorber.
3.Prodution workshop & Warehouse
4.FAQ
★.Q: What's the delivery time?
A: It usually takes about 30-35 days to finish an order after receiving the deposit. But the exact delivery time might be different for different orders or at different time.
★.Q: Can I mix different models in one container?
A: Yes, Different models can be mixed in one 40HQ, but no more than 2 different models for 1x 40 HQ.
★.Q: Do you have the products in stock?
A: No. All motorcycles will be produced according to your order including samples.
★.Q: Can I use my own design for the models?
A: Sure. We can make motorcycles with your brand, design and colors.
★.Q: Where is your factory?
A: Our factory is loacted in Foshan, Guangdong. The port of loading can be SHENZHEN / GUANGZHOU port.
Please feel free to contact us if you want to know more!
>>
