Basic Info.
Connectivity
Bluetooth, Ethernet, HDMI, USB 3.0, Wi-Fi
Graphics Card
Intel UHD Graphics
Keyboard Type
Backlit Keyboard
Operating System
Windows 10 Home
Storage
2*M.2 2280 SSD Slot+1*SATA3.0 Slot
Graphics Card Chipset
Integrated Card
USB Port
3*USB 3.0 Port, 4*USB 2.0 Port, 1*Type-C Port
Weight
Net 0.6kg; Gross 1.4 Kg
Memory Types
2*DDR4 So-DIMM 260 Pin
Transport Package
Normal Express Box
Specification
PC size 192*130*50mm Package size 308*206*75mm
Production Capacity
10000 Units/1 Month
Packaging & Delivery
Package Size
30.80cm * 20.60cm * 7.50cm
Package Gross Weight
1.400kg
Product Description

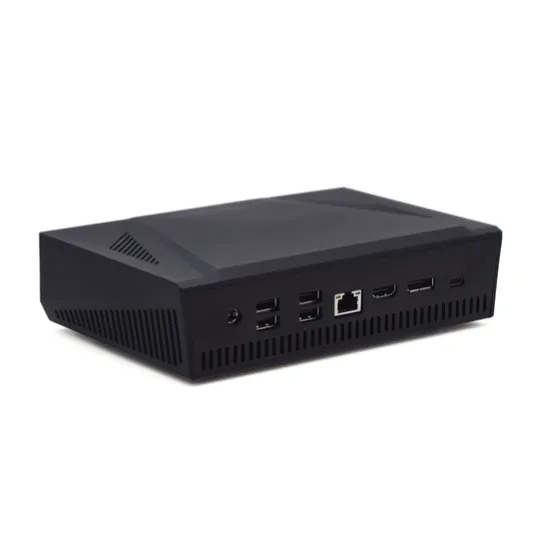

VR Details Images HYSTOU M1 Mini Gaming PC Intel Core i9-9880H MAX 64GB Windows 11 Why choose HYSTOU Mini PC Gaming? ★ CPU: Intel Core i9- 9880H
★ Lan Port: 1*RJ45 Lan intel Ethernet Controller I225-V (2.5G)
★ Storage: 2*M.2 2280 M KEY PCIE3.0 Max 64GB
★ Silent Cooling Design: Efficient Heat Dissipation
★ System: Support Windows 10/11, Linux
★ Processor Base Frequency: 3.30 GHz
★ Max Turbo Frequency: 4.60 GHz
★ Video:Triple Display with 4K
★ Memory:Dual DDR4 Max 64GB
★ WIFI: Inside WIFI 5
★ Bluetooth: BT 4.2 Multiple Connections & Interfaces The Mini PC Gaming features Gigabit Ethernet LAN (RJ-45 port, supporting Gigabit file transfer speeds), WiFi 6 and Bluetooth 5.2, ensuring high-speed wireless connectivity that puts you ahead. It significantly expands the computer's functionality and enhances its performance. Additionally, it comes with 3*USB3.0 port, 4*USB 2.0 port, HDMI port, DP port, Type-C port, and DC Jack. Powerful Processor The Mini gaming PC is powered by a Intel Core I9 processor with 8 cores and 16 threads, boasting a base frequency of 3.30GHz that can turbo boost up to an impressive 4.60GHz with 16MB of Smart Cache, ensuring exceptional responsiveness and superior performance. Powerful Memory & Larger Storage The Mini desktop PC is equipped with DDR4 Dual Channels, featuring 2*SODIMM slots, each of which can be upgraded to a maximum of 32GB. DDR4 not only offers a 28% improvement in transmission frequency but also ensures swift operation with no lag or interruptions. Additionally, it offers 1*SATA and PCIe 3.0*4 slot (M.2 2280, NVME) that can be expanded to 1TB. Say goodbye to storage concerns, as you can seamlessly run software, enjoy and store extensive movies and photos without any hassle. Triple Dispaly 8K UHD The Mini gaming PC supports DP 8K @ 30Hz (7680x4320), HDMI 4K @ 30Hz (4096X2304), and Type-C 4K @ 30Hz (4096X2304) displays. Its 8K high-definition streaming capability delivers a breathtaking movie-watching experience. With the ability to connect up to triple screens, it enhances office productivity, enabling seamless multitasking and smooth operation of various software. This makes it perfect for tasks like C4D 3D rendering, stock trading, 8K video playback, and gaming all at the same time. Fan Cooling Design The Powerful Mini PC M1 R9-5900H is equipped with a good cooling system and a low-noise fan, which is widely opened with ventilation and smart fans, and directly rotates the heat from the system when needed. To make and cool performance. Product Usage Product Description
Processor
|
CPU
| Intel® Core™ i9-9880H Processor (16M Cache, 8 Cores 16 Threads, Base Frequency 2.30 GHz Turbo Frequency 4.80 GHz) Intel® Core™ i5-10200H Processor (8M Cache, 4 Cores 8 Threads, Base Frequency 2.40 GHz Turbo Frequency 4.10 GHz) Intel® Core™ i7-10870H Processor (16M Cache, 8 Cores 16 Threads, Base Frequency 2.20 GHz Turbo Frequency 5.00 GHz)
|
TDP
| 45W
|
CPU Lithography
| 14 nm
|
Memory Specifications
|
Max Memory Size
| 64GB
|
Memory Types
| 2*DDR4 SO-DIMM 260 pin
|
Memory Speed
| 2666 MHz (9th CPU), 2933 MHz (10th CPU),3200MHz (11th CPU)
|
Memory Channels
| Dual Channels
|
ECC Memory
| Don't support
|
Storage Specification
|
m.2 SSD
| 2*M.2 2280 M KEY PCIE3.0
|
SATA
| 1*SATA3.0 SIot for 2.5 inch HDD/SSD
|
mSATA
| NO mSATA slot
|
Graphics
|
Processor Graphics
| Intel UHD Graphics 630, Intel UHD Graphics for 10th CPU
|
HDMI
| 1*HDMI 4096*2304@30Hz(4K)
|
DP
| 1*DP 4096*2304@60Hz(4K)
|
Type-C
| 1*Type-C 4096*2304@60Hz(4K)
|
Power Specification
|
Adapter Output
| DC 19V/6.32A
|
Adapter Input
| AC 100-240V, 50/60HZ
|
Consumption
| 85W
|
Auto Power On
| Support Auto Power On Function
|
In & Out interfaces
|
USB Port
| 3*USB 3.0 port,4*USB 2.0 port,1*Type-C USB port
|
Audio
| 2*3.5mm MIC in & SPK out
|
Video
| HDMI 4096*2304@30Hz + DP 4096*2304@60Hz +Type-C 4096*2304@60Hz 3 Display Output
|
Audio Cards
| USB Audio Device
|
M.2
| 1*M.2 E KEY 2230
|
TF
| 1*TF card slot
|
Lan Port
| 1* RJ45 Lan intel Ethernet Controller I219-V (1G)
|
Wi-Fi
| Inside Wifi & Bluetooth Combo
|
Others
|
System
| Support Windows 10/11, Linux
|
BIOS
| Support TPM 2.0,Wake On LAN,PXE,Connect the power to automatically start
|
Work Environment
| -10ºC--50ºC(14F~122F) , 30%--90% Humidity
|
Case Material
| ABS + Aluminum Alloy
|
Dimension
| PC size 192*130*50mm Package size 308*206*75mm
|
Weight
| Net 0.6kg; Gross 1.4 kg
|
Company Introduction About us Hystou Technology Co Limited is a reliable manufacturer and exporter of fanless Mini PC, industrial PC, all in one PC and industrial panel PC. Our products are exported to the EU, America, Asia, etc., and have enjoyed a great reputation in the whole world market. In order to supply quality products and excellent services, our company has got approvable reports and certificates of CE, FCC, RoHS, SGS, ISO9001 and so on. Our goal is "Innovation First, Quality First, Customer First, Service First". FAQ
>>
