Micro Data Center Multi-Device Electrical Power Supply Low Voltage

US$2,000.00-3,000.00 2 Pieces (MOQ)

Basic Info.

Model NO.
Centralized Model
Protection
Overvoltage
Application
Data Center
Classification
Lighting/Power
Standby Time
Standard Machine
Standby UPS
Sine Wave Output UPS
Output Capacity
Large Type
Equipment Mode
Centralized Model
Brand
Invinstar
Color
Black
Model No.
I-Pd
Voltage
110V~380V
Transport Package
Carton Box or Wooden Pallets
Specification
600W*1200D*2000H
Trademark
Getwell or customized
Origin
Guangzhou, China
HS Code
850440200
Production Capacity
2000 Per Month

Product Description

Product Description Low Voltage Electrical Panel Board Power Distribution for data center
High availability 1.Novel and elegant appearance
2.The rack color and style can be customized according to the use environment
3.Support single-sided single main road, single-sided double main road and double-sided double main road layout
4.Flexible incoming and outgoing modes
5.The setting of maintenance surface is flexible and convenient for inspection and maintenance. Fully enclosed structure and modular design 1.Each functional module is isolated from each other to prevent the operator from directly contacting the bus and prevent foreign matters from contacting the electrical device
2.Protection : IP40
3.All systems comply with the existing national and international standards and specifications, and the components of the products have passed strict quality certification High integration and performance 1. Advanced DSP full digital control makes the protection system control faster, more accurate and more stable, and comprehensively improves the reliability.
2.The anti-interference ability is enhanced to avoid the inherent hardware parameter drift and other defects of the analog controller and ensure the product consistency.
3.High integration and simplified circuit.
4.Good performance and highly integrated products ensure more stable and safe operation of the equipment. Comprehensive power quality monitoring It can monitor complete power quality parameter information and provide key data
1.Main circuit measurement parameters include but are not limited to three phase voltage, current, frequency, active power, reactive power, power factor, active electric energy, reactive electric energy, zero ground voltage, neutral line current, total harmonic content (THD), 2nd-63rd harmonic, current voltage unbalance, current K factor (KF), voltage crest factor (CF), telephone waveform factor (thff), peak voltage, voltage and current sequence, ambient temperature and humidity.
2.Branch measurement parameters include but are not limited to voltage, current, frequency, active power, reactive power, power factor, active electric energy, reactive electric energy, 2-31 harmonics Intelligent management 1.Effective analysis of all power parameters
2.Equipment level energy efficiency management
3.Touch screen visualization
4.Effective management and risk early warning of key data of each loop
5.Provide standardized interfaces to easily connect with third-party systems

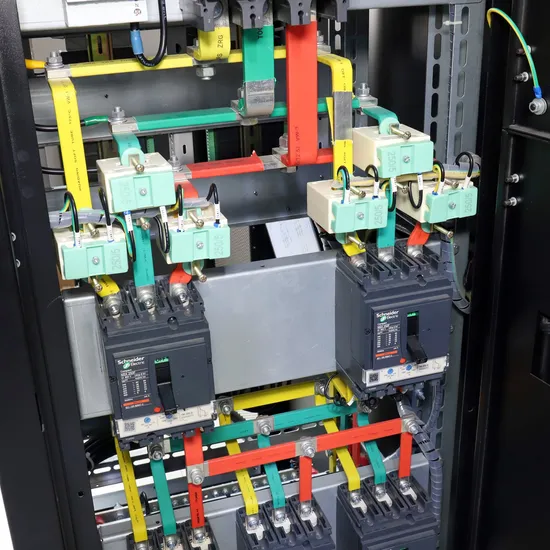

6.Provide a variety of alarm modes for fault early warning It is necessary to support the access to the energy management platform to form energy consumption classification, sub item and sub regional statistical analysis for the energy consumption and operation information of the data center, so as to realize the visualization of energy management, find out the blind spots of energy consumption, tap the energy-saving potential, and help customers optimize the use of energy. Detailed Photos
Product Parameters
Name Quantity ( PCS )
Input Voltage 220/380v
Frequency 50/60Hz±10%2
Output Voltage 220V(1Ph+N+PE);380V(3Ph+N+PE)4
Capacity 10~630A
Distribution Architecture Support single bus, double bus and multi bus systems Branch air switch supports fixed switch, hot plug air switch or hot plug adjustable phase air switch
System Function three phase voltage, current, frequency, active power, reactive power, power factor, active electric energy, reactive electric energy, zero ground voltage, neutral line current, total harmonic content (THD), 2nd-63rd harmonic, current voltage unbalance, current K factor (KF), voltage crest factor (CF), telephone waveform factor (thff), peak voltage, voltage and current sequence, ambient temperature and humidity
voltage, current, frequency, active power, reactive power, power factor, active electric energy, reactive electric energy, 2-31 harmonics
Accuracy Incoming line: voltage / current level 0.2, active power / electric energy level 0.5s, reactive power / electric energy level 1
Outgoing line: voltage / current level 0.5, active power / active electric energy / reactive power / reactive electric energy level 1
SPD Standard C-level surge protection: 20KA, 40KA
Display Standard 7-inch touch screen, optional 10 inch or above
Communication interface One way RS485 Modbus-RTU
One way RJ45 10/100m, TCP/IP Modbus Protocol (optional)
Dimension 600/800(W)*1000/1100/1200(D)*2000/2200(H)mm

Packaging & Shipping
Company Profile
Established in 2008, Guangzhou Getwell Electronics Co., Ltd has been delivering high quality, innovative products and technologies to the IT industry for over 15 years. We focus on data center infrastructure design, construction, manufacturing, operation and maintenance. From 2008 we started to research and develop Micro Modular data center product and build own factory. Getwell pays great attention to R&D and its engineer teams include industrial designer, structure engineers, software engineers, power distribution engineers and HAVC engineers.
Getwell is aimed at continuous improvement product, quality and enlargement of functionality of the products. We keep moving forward learning the world experience in the IT field and needs of our customers, trying to improve and bring our solutions to the level of world IT leaders and even surpassing in some areas. We associates with modern, innovative, convenient, sturdy, secured and high quality product. We follow the tendency of "new generation" of mounting constructions: manufacturing of designs; stable performance and high loading capacity of the structure; low cost on storage and transport thanks to the compact packing and assembling construction. Aim on giving our customers confidence that solutions Getwell guarantees.
FACTORY TOUR
FAQ 1. Why choose us?
a. we are 15 years factory in producing data center infrastructure products.
b. we have 10+ people in quality management.
c. we have 20+ Process and R&D technicians.
d. we have 10000+ suquare meter factory area.

2. It takes how many days for products preparation?
Usually 25-30 days.

3. What's the trading term for selecting?
FOB, EXW, CIF, CFR, DDP, DDU.

4. I want to buy but I don't have any experience about international trading, what can I do?
Contact the sales for delivery door to door.

5. Which certification we have got?
For manufacturer: ISO 9001: 2008, OHSAS 18001, ISO 14001:2004
For products: CE, ROHS,CQC,etc.
