US$32,000.00-60,000.00
|
1 Piece
(MOQ)
|
Basic Info.
Type
Stone Polishing Machine
Application
Ceramics, Jadestone, Cement Brick, Concrete Curb, Granite, Marble
Type for Grinding Machine
Disc Grinding Machine
Grinding Machine Type
Vibration Polishing Machine
Grinding Method
Wet Grind
Certification
CCC, ISO, CE
Useful Working Width
300-1250mm
Useful Working Thickness
10-60mm
Number of Grinding Head(Potional)
16
Power of Polishing Head
7.5kw
Transport Package
Film Packaging
Production Capacity
50pieces/Month
Packaging & Delivery
Package Size
800.00cm * 230.00cm * 230.00cm
Package Gross Weight
15000.000kg
Product Description
Product Description

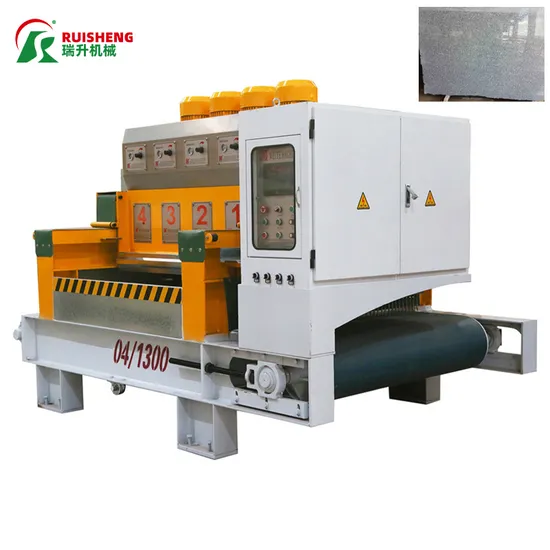

Stone Polish Machine is a versatile and efficient tool for polishing and grinding stone surfaces. With 8 buffing heads, this machine ensures a high-quality finish on granite and marble surfaces. It is perfect for use in various industries that require precision polishing, such as construction, architecture, and interior design. The machine is easy to operate and provides consistent results, making it a valuable asset for any business looking to enhance the appearance of stone surfaces. Invest in this reliable and durable stone polishing machine to achieve professional results every time.
Automatic Marble Polishing Machine is equipped with The automatic flap frame, automatic slab device, blow dry device, and transition frame all come standard on this incredible piece of machinery. But that's not all -- it also boasts a state-of-the-art PLC control system and an LCD touch screen terminal for man-machine interface to set parameters.
/Product name | Unit | RSMJ-16C | RSMJ-20C | RSMJ-25C |
/ Useful working width | mm | 300-1200 | 300-1200 | 300-1200 |
/Usetul working thickness | mm | 10-60 | 10-60 | 10-60 |
/Belt advanced speed | 3 | 0.8-2.5 | 0.8-2.5 | 0.8-2.5 |
()/Number of grinding head(optional) | pcs | 16 | 20 | 25 |
/Power of polishing head | Kw | 7.5 | 7.5 | 7.5 |
/Gross power | Kw | 125 | 155 | 201.75 |
Water consumption | m³/h | 15 | 18 | 27 |
(××)/Overall dimensions(LxWxH) | m | 7.8X2.3X2.5 | 9.2X2.3X2.5 | 12.8X2.3X2.5 |
Advantage
1.Using PLC electrical system and LCD screen menu offer intelligent control.
2.Easy to operate.the working pressure,the beam travel speed and the belt moving speed can be adjusted according to different stone slab and the finishing glossy.
3.it is popular for 4/8/10/12 heads, 16 heads and 20 heads. also 8 heads, 10 heards and 24 heads are available for iqnuiry. slab width : 1050/1300mm or 1600mm or 2200mm avaiable :marble polishing , granite polishing etc
4.Processing width and working pressure of grinding heads can be adjusted.
5.Granite Buffing Machine has featuring various adjustable components for optimal performance. The machine includes a plate conveyor belt and a grinding plate traverse beam, both of which can be adjusted with a frequency converter.
6.Equipped with grinding head automatic avoidance and plate memory function.
7.Electronic sensor at the entrance to scan the shape of the slab, ensuring automatic adjustment of the spindle beam travel to the width of the slabs and the automatic vertical travel of the heads
Packaging & Shipping
After the package is qualified and complete, we will use the international standard export and the customer's requirements to ensure the transport of the products.
One set in a 40' container fixed by steel ropes, anti-collision suitable for long distance transportation.
After Sales Service
1.20+ years' experience in developing and manufacturing granite block cutting machine.
2.Technicians available for serving customers worldwide, including pre-sale serve and after-sale serve, such as Planning consulting, equipment installation, technical training, machine maintenance, spare parts supply..
3.Custom Machinery available, from design to finished product.
