Tongjia Plastic 15L 20L Laundry Detergent Barrel Jerry Can Blow Molding Machine

Product Description

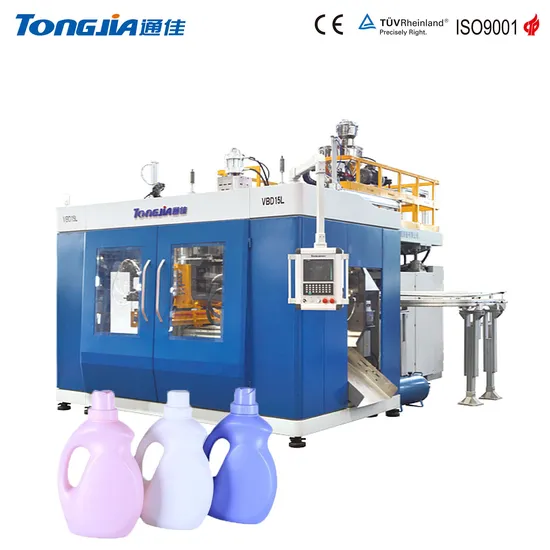

Tongjia VBD15L 30L Plastic Double Station Bottle Buckets Blow Molding Machine
Product Description

Tongjia TJ-VBD series double-station hollow blow molding machine is mainly composed of safety door,frame, plasticization system, die head lifting device, mold moving and mold opening and closing mechanism,hydraulic system, water cooling system, die head, air blowing Device, tube blank cutting device, pneumatic system, automatic lubrication device, bottle clamping and discharging device, electric control system, etc.
The equipment can be equipped with transparent line single die head, transparent line double die head, transparent line double single die head, double double die head, multilayer single die head, multi-layer multi die head, etc. according to customer product requirements.
This series of blow molding machines are mainly used to produce PE, PP, and other types of thermoplastic hollow containers, such as: milk bottles, oil cans, detergent bottles, laundry detergent barrels, wine cans, vinegar cans, etc. The products produced by this series of equipment have uniform wall thickness, good quality and high production efficiency. They are ideal equipment for a variety of industrial and civil packaging industries.
Product Parameters

Configuration
Clamping system	Double stations translation + High-precision linear guideway + Double linear guide ways
Extrusion system	Hardened face gear reducer + Imported frequency inverter
Die system	Special steel center-feeding die
Hydraulic system	All imported hydraulic valve, seal parts + Electro-hydraulic proportional control
Control system	Imported PLC + Europe imported complete machine control system (GEFRAN from Italy)

Parameters
Specifications	Units	TJ-VBD7L	TJ-VBD15LA	TJ-VBD15L	TJ-VBD20L	TJ-VBD30L
Material		PE PP.PVC.PA …	PE PP.PVC.PA …	PE PP.PVC.PA …	PE PP.PVC.PA …	PE PP.PVC.PA …
Max.product capacity	L	7	12	15	20	30
Die quantity	Set	1.2.3.4.6...	1.2.3.4.6...	1.2.3.4.6...	1.2.3.4.6...	1.2.3.4.6...
Machine dimension	M	4.9×3.5×2.9	4.9×3.4×3.4	6.2×4.9×3.8	6.4×4.2×4.1	8.2×5.9×4.5
Machine weight	Ton	9	15	16	20	26
Die-head
Max.diameter of die	mm	200	200	200	260	260
Center distance of double die	mm	200	200	240	280	320
Center distance of three die heads	mm	120	140	160	180	200
Center distance of four die heads	mm	80	100	120	140	160
Die head heating zone quantity	zone	3	3	3	3	3
Clamping Unit
Clamping force	KN	130	180	230	280	350
Distance between platens	mm	230-620	320-680	350-800	380-820	420-920
Sliding distance	mm	560/640	700	700	750	750
Platen size(W×H)	mm	450×400	480×500	550×550	420-920	680×680
Extruder unit
Screw diameter	mm	75	90	90	100	100
Screw L/D ratio	L/D	25	25	25	25	30
HDPE Plasticizing capacity	Kg/h	100	180	180	220	300
Screw heating zone quantity	zone	3	5	5	5	5
Screw heating power	KW	13.5	20	20	23	28
Extruder driving power	KW	30	45	45	55	90
Power
Installed capacity power	KW	55	95	95	115	163
Hydraulic drive power	KW	11	30	30	37	45
Cooling water consumption	m3/h	4	5	6	10	12
Cooling water pressure	Mpa	0.3-0.6	0.3-0.6	0.3-0.6	0.3-0.6	0.3-0.6
Air pressure	Mpa	0.8	0.8	0.8	0.8	0.8
Air consumption	m3/min	0.6	0.8	1	1.2	1.4

Product Application
About us
Series of automatic blow molding machine include: extrusion blow molding machine,plastic bottling blow molding machine,daily chemical packaging blow molder, lubricant oil blow molding machinery, pharmaceutical / medicine bottle blow moulding machine, food packaging bottle blow molding equipment, pesticide bottle blow molder machine, plastic stacking barrel blow molding machine, large hollow blow molding equipment and special-shaped hollow molding machine etc.
Shandong Tongjia Machinery Co., LTD,located in High-New Technology Industry Development Zone of Jining City, Shandong Province. We are a science, industry and trade integration modern large enterprise group, one of the largest professional manufacturer of plastic machinery in China, Vice President of China Plastics Machinery Industry Association, Vice President of China plastics Processing Industry Association, the National Key High-Tech Enterprises and Chinese Patent Star Enterprise.
With the mind of "Trust comes from quality" , Tongjia group with strong comprehensive strength, exquisite technology, perfect after-sale service system, as always, is willing to make progress together with customers from domestic and overseas to create new glories.
After Sales Service
1. 12 Hours----We will give you reply within 12 hours.
2. Pre-sale service----We provide your professional service in fluent English.
3. Delivery----1~3 months.
4. Free Design----Professional engineers, free designs.
5. Certificates----The third-party verification service provider.
6. After sales service----OEM service provide; Design service provide; Buyer label provided.
Packaging & Shipping
Standard export packaging: 1. Apply anti-rust oil to the equipment easy rusty part and carry out anti-rust treatment.
2. The whole machine was wrapped with stretch film for protection, and the equipment control cabinetand other components are protected against shock with packaging materials like XPS foam board and EPE foam sheet.
3. Reinforce easy-move part of the equipment.
4. Put desiccant before packaging to avoid rusting equipment during sea transportation.
5. Use New Zealand imported bluish pine wood or American Douglas fir wood as the bottom support 12mm multi-layer plywood for side panels, all wood fumigated. We cooperated with experienced andprofessional exported wooden packaging manufacturing enterprises to make final package.
FAQ
Q1:What's your warranty policy?
A1:The Seller will guarantee the machine for 18 months since the date of shipment(that is leaving from Seller's
factory) or the seller will guarantee the machine for 12 months since the date of starting installation and adjustment,
whichever comes first.

Q2:What's your minimum order quantity?
A2:Min order quantity:1 set or by negotiate with each other.

Q3:What package do you use for the product?
A3: Be Coated with anti-corrosion oil, and covered with plastic film, then packed in wooden box.

Q4:Do you have technical instruction if I buy your product?
A4:Please read the user manual carefully for your reference, we have detail instruction on it. If your problems still
can not be solved, welcome to contact us for help.

Q5:What is your overseas service?
A5:We will provide high quality overseas service ,our technical staff will be able to provide you with technical support,
for you personally to overseas assembly and test equipment.

Q6:Will you conduct training for our staff here?
A6:Yes, we will provide technology support to factory technology, training for the relative person.

Q7:What are your terms of payment?
A7:We accept T/T, L/C, D/P,Western Union, Paypal, Money Gram.
Q8:I am very satisfied after I read your FAQ, how can I start to purchase my order?
A8:Please click the bottom of this page or contact our sales on Trade Mange online!
