Product Details
Product Description
Product Description

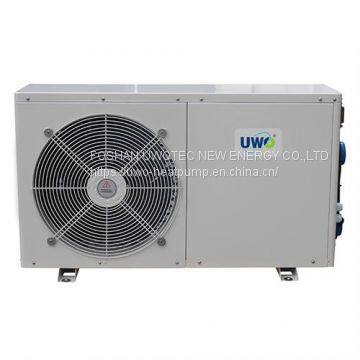

Conventional On/Off Swimming Pool Heat Pump:Galvanized Steel Cabinet
Heating&Cooling with reversible circle defrosting, CE standard.
With R32 or R410a refrigerant, top class rotary or scroll compressor, cooling &heating, reversible circle defrosting and practical design, providing an economical pool heating solution up to 28.5KW.
Specification:
Factory model No.
|
| UHP056CS32 | UHP072CS32 | UHP094CS32 | UHP120CS32 | UHP140CS32 | UHP160CS32
|
|
|
|
|
|
|
|
|
Heating capacity
| kW
| 5.56
| 7.24
| 9.43
| 11.7
| 13.6
| 15.8
|
Power consumption
| kW
| 1.09
| 1.45
| 1.89 | 2.30
| 2.72
| 3.22
|
C.O.P.
| W/W | 5.0
| 5.0 | 5.0 | 5.0 | 5.0
| 4.9 |
|
|
|
|
|
|
|
|
Heating capacity
| kW | 3.67
| 4.73
| 6.65
| 8.04
| 9.27
| 10.87 |
Power consumption
| kW
| 0.94
| 1.18 | 1.66
| 2.01
| 2.32
| 2.79 |
C.O.P.
| W/W
| 3.9 | 4.0 | 4.0 | 4.0 | 4.0 | 3.9 |
|
|
|
|
|
|
|
|
Compressor
|
| Rotary type | with R32 | refrigerant, | GMCC or | the similar | class brand |
| Voltage |
| 220-240V | 50Hz/1Ph |
|
|
|
|
| Rated current | A | 4.8
| 6.4
| 8.4
| 10.2
| 12.1
| 14.3
|
| Heat exchanger |
| Sprial | Titanium | Tube in | PVC Shell |
|
|
| Noise level(10m) | dB
| 42
| 42
| 43
| 43 | 43 | 43 |
| Net weight | kg | 38
| 46 | 52
| 65
| 79
| 88
|
| Gross weight | kg | 43
| 51
| 56
| 72
| 89
| 98
|
| Net dimension | mm | 1000*383*586 | 1000*383*586 | 1000*383*586 | 1049*445*715 | 1049*445*715 | 1049*445*715 |
| Packing dimension | mm | 1000*383*586
| 1000*383*586
| 1000*383*586
| 1145*487*852
| 1145*487*852
| 1145*487*852
|
>>
