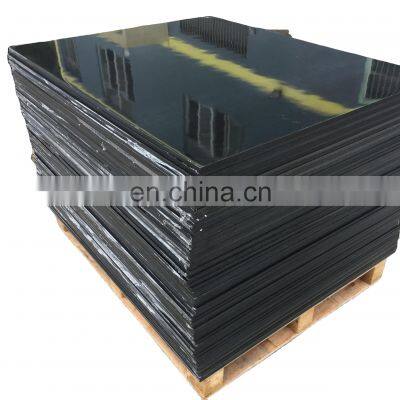

Grade A/Grade B 24inch x 48inch Phenolic Laminated Bakelite Board
Bakelite sheet is the combination of hard and high density material and impregnated paper using phenolic resin or fiber glass cloth and pressed under heat and pressure. This industrial laminate normally consists of fiber paper, cotton fabric, chemical fiber yarn and fiber glass, etc. When specific heat and pressure are applied to these layers, a chemical reaction combines the layers into a high-pressure thermosetting plastic.
Item
| Color
| Thickness (mm)
| Width x Length (mm)
|
Bakelite Sheet
| Orange, Red, Black
| 1- 100
| 1000*2000, 1220*2440, 1250*2090
|
For dimensions, we can cut it as your requirements.
|
|
|
|
Heat Resistance (continuous)
| 150 °C
|
|
|
Heat Resistance (short-term)
| 210 °C
|
|
|
Moisture Absorption
| <1.5%
|
|
|
Bonding Strength
| 3600 N
|
|
|
Coefficient of Linear Thear Thermal Expansion
| 10 K ^-1×10^-4
|
|
|
Inflammability (UL94)
| 94 HB
|
|
|
Vertical Electric Strength
| 12.1 KV/m
|
|
|
Vertical Bending Strength
| ≥120 Mpa
|
|
|
Vertical Compression Strength
| ≥250 Mpa
|
|
|
Insulation Resistance after Flooding
| 1.0*10^7 Ω
|
|
|
Paralleled Breakdown Voltage
| 10 KV
|
|
|
Izod Impact Strength
| 67 kj/m
|
|
|
Application
We can also provide CNC machining service as your requirement, such as engraving and cutting.
1. Parts for chemical equipment and general machinery.
2. Base plate, support and guard panel for electric generator.
3. Insulating parts for transformer, inverter, electric motor, distribution box, fixture board material, clamp plate for molds, high and low voltage wiring closet, as well as packaging machine.
4. Mechanical mold, fixture material for PCB (printed circuit board) and ICT (in-circuit test), as well as forming machine, drilling machine and base plate for grinding, etc.
Bakelite Fixture Sample
PCB Board Sample
Bakelite Engraving Art Sample
Packing & Delivery
Our Company
Shenzhen Xiongyihua Plastic Insulation Ltd.
Shenzhen Xiongyihua Plastic Insulation Limited was established in 2006 in Shenzhen, is a manufacturer and trader, specialized in the research, development, production and processing / machining of electronic insulating material sheet, such as bakelite sheet, 3025 phenolic cotton, 3021 phenolic paper, 3240 and FR4 epoxy glass cloth laminate sheet.
Production Line
Warehouse
Our Service
1. Reply your inquiry within 12 hrs.
2. Any professional questions would get a professional answer.
3. Dimensions customized is acceptable.
4. Free sample is available.
>>
