Advanced 6-Axis Metal Drilling and Milling Machine for Deep Hole Metal Molds

Product Description

Drilling stands as the cornerstone of machining operations, renowned for its extensive application across diverse fields. Traditional drilling equipment, like bench drills, milling machines, and radial drills, often confine laborers to repetitive tasks, hindering efficiency and quality. The CNC era heralded a transformation with the advent of CNC deep drilling machines. These advanced machines liberate operators' hands, shattering the depth drilling bottleneck. One-time drilling achieves quality comparable to standard drilling machines, enhancing functions such as drilling, enlarging, and expanding. Furthermore, CNC depth drills facilitate automatic chip removal, precise CNC positioning, and streamlined automated processing.

3 Axis CNC Deep Hole Drilling Machine	4 Axis Vertical CNC Deep Hole Drilling Machine	Multi-Spindle CNC Deep Hole Drilling Machine	6 Axis CNC Deep Hole Drilling Machine

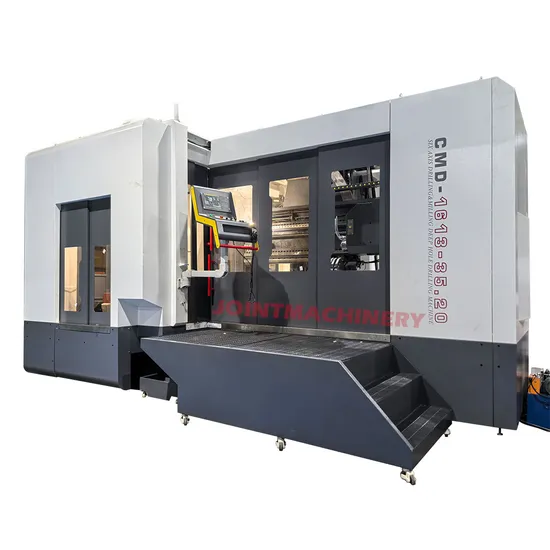

The CMD series six-axis drilling and milling composite machine tool embodies multifunctionality, excelling in both deep hole drilling and milling tasks. It features a rotating workbench and a versatile swinging A-axis, enabling precision machining of intricate parts with inclined and double-inclined holes or surfaces. This innovative tool is indispensable across various sectors.
Our machine finds extensive applications in industries such as automotive mold manufacturing, engine cylinder blocks, shipbuilding, aerospace, petroleum hydraulics, new energy power, nuclear power, and chemical engineering. It shines particularly in crafting components like inclined top rods on molds, double-inclined water paths in hot forming molds, hot runner plates, engine cylinder bodies, rolling rollers, rotary tables, and flywheels.
1.Complete control and servo systems by FANUC of Japan, ensuring unmatched precision and reliability.
2. Dual closed-loop design for A and B axes, precisely meeting complex composite angle requirements.
3. Enhanced with deep hole drilling and milling capabilities, alongside an optional single pipe drilling function.
4. Large A-axis swing angle offers an expansive processing range.
5. Fan-shaped disc hard rail design ensures the A-axis swings with unmatched stability and reliability.
6. Anti-deviation load rotating workbench enhances operational accuracy and performance.
7. Heavy-duty pre-pressed roller precision wire rail complemented by a large diameter grinding grade screw rod for precision.
8. Dual-cycle precision filtration system and high-pressure cooling chip removal system boost efficiency.
9. A sleek new fully enclosed cover combines aesthetic appeal with cutting-edge technology.
10. The optimized body design features robust rigidity, remarkable stability, and outstanding seismic resistance.
Advanced 6-Axis Metal Drilling and Milling Machine for Deep Hole Metal Molds

Model	Unit	CMD-1316-35.20
Machining Capacity
Drilling diameter of gun drill	mm	3-50
Drilling diameter of single pipe drill	mm	18-65/optional
Max drilling depth of gun drill (W)	mm	1300
Machining Stroke
Left and right of workbench (X)	mm	1600
Sliding table stroke (Y)	mm	1300
Column stroke (Z)	mm	800
Max drilling depth of gun drill (W)	mm	1300
Swing axis rotation angle (A)	°	Upward 20°, and down to 35°
CNC rotary workbench (B)	°	360
CNC Indexing Table
Max loading capacity	kg	8000
Size (L*W)	mm	1400*1200
Spindle
Spindle taper capacity		BT50
Max spindle speed	rpm/min	4500
Power
Spindle motor	kw	15/18.5
X-axis feed servo motor	N.m	36
Y-axis feed servo motor	N.m	36
Z-axis feed servo motor	N.m	36
W-axis feed servo motor	N.m	36
A-axis feed servo motor	N.m	36
B-axis feed servo motor	N.m	36
Total power	kw	55
Cooling System (Gun Drill)
Coolant pressure range	mpa	2-15
Coolant flow range	L/min	6-85
Size & Weight
Machine size (L*W*H)	mm	9350*5500*5600
Machine weight (About)	kg	25000
System
Control system		Standard:FANUC / Optional:SYNTEC
Milling Ability
Milling range	mm	1300+600

Shenzhen Joint Machinery Co., Ltd. stands as a distinguished manufacturer and exporter of state-of-the-art CNC lathe machines, CNC deep hole drilling machines, and Swiss-type automatic lathes, alongside milling and grinding machines. Our commitment to excellence is reflected in the high quality of our machines and our dedication to exceptional customer service worldwide. We rigorously control machine quality, ensuring they meet the pinnacle of industry standards. Our machines, integrating core technologies from Taiwan and Germany, along with cutting-edge production equipment and processes, deliver exceptional product quality and reliability. Renowned for their precision, stability, and dependability, our machines adeptly handle complex, demanding machining tasks. We proudly export to numerous countries, earning widespread acclaim and popularity among global customers. Our market reach spans Asia, Europe, South America, North America, and beyond, fostering long-term partnerships worldwide to drive significant business value together.

---
