China Aluminum Window Making Machine/Aluminum Profile End Milling Machine/New Aluminum Curtain Wall Tenon Milling Machine

Product Description

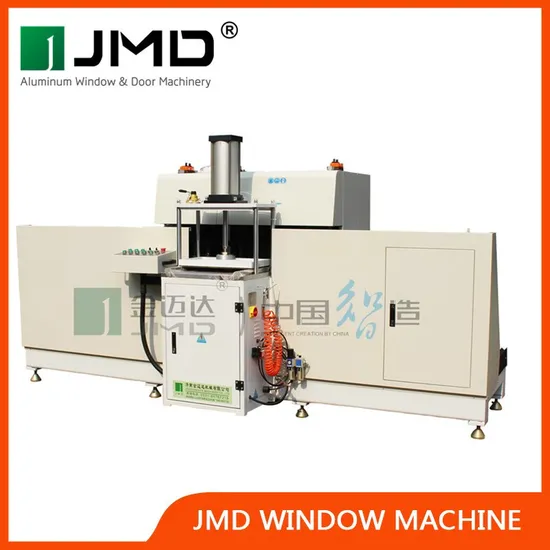

End Milling Machine(6-cutter) - Window Machine/Aluminum Milling Machine(LXSJ6A-250)
1.Aluminum machine -End Milling Machine Features
1. 6 independent cutters (1 vertically mounted & 5 horizontally mounted) driven by 6 motors, easy to adjust.
2. 2 of the horizontally mounted cutters can be adjusted within the range of 180°.
3. Fixed worktable and moveable cutters to ensure high processing precision.
4. Worktable width is 500mm, available to process several pieces of profiles per cycle, improving the output.
5. Guide rail: HIWIN; Cable & electric wires: Yichu; Pneumatic components: AirTAC.

2.Technical Parameters

Power supply	380V/3Phase/50Hz	Cutter quantity	6 pieces(5pcs of 250*6.5*32*40T & 1pc of 355*3.2*2.4*32*120P)
Total power	14.3kW	Cutter feeding stroke	1650mm
Input power	1.1kW	Cutter adjustment stroke	80mm(horizontal direction)/280mm(longitudinal direction)
Motor rotating speed	2800r/min	Overall dimension	3600x1600x1750mm
Air pressure	0.5~0.8Mpa	Weight	1500Kg

3.End Milling Machine/Door Machine Product details
4.Aluminum Machine Company profile
5.Our team
6.Delivery of Door Machine
7.Our clients
8. Associated Aluminum Milling Machine/Cutting Machine
9.Why US a. We have more than 20 years of production and manufacturing experience in doors and windows machiniery
b. Top 3 door and window machine manufacturers in China
c.230 staffs professional team
d. Export to more than 40 countries
e covering an area of 300 mu

f. 3000 sets production per year
g. Cutting center Leading brand in China
h.We accept certification BV/CAS/SGS/CE ,etc.
