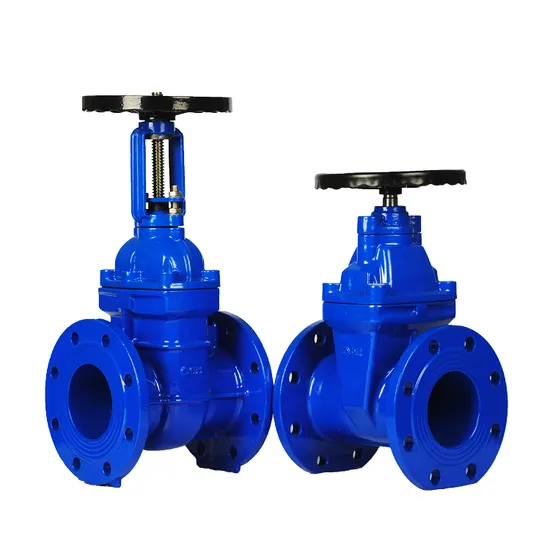

DIN 3352 F4 Water Treatment Ductile Iron Body Rising Stem Metal Seated Gate Valve

Product Description

DIN 3352 F4 Rising Stem Metal Seated Gate Valve
Inside and outside epoxy resin coating. Three "O" ring sealing. these all insure excellent corrosion protection and reliable sealing capability. per request, the gate valves can be actuated by operating lever, hand wheel electrical actuator and so on.
Flat bottom seat ring Integral with the body. inside and outside epoxy resin coating,wedge wholly bonded with rubber. Three "O" ring sealing. these al insure excellent corrosion protection and reliable sealing capability. per request, the gate valves can be actuated by operating lever, hand wheel electrical actuator and so on.
This structure is beneficial to stem lubrication, opening and closing can be observed.

Name	DIN 3352 F4 Rising Stem Metal Seated Gate Valve
Design	DIN3352
Face to face	DIN3202-F4
Flange drilling	DIN2531 / DIN2532 / DIN2533 / EN1092
Working temperature	0-100º C
Working pressure	PN10 / PN16

Main Parts and Material:

Item	Part Name	Material	Item	Part Name	Material
1	Body	GGG50	5	Bonnet	GGG50
2	Disc	GGG50 with brass or SS	6	Handwheel	GGG50
3	Stem Nut		7	Brass Nut	Brass
4	Stem	Stainless Steel/2Cr13

Main Dimensions: Unit: mm

DN	L	D
		PN10	PN16
40	140	150	150
50	150	165	165
65	170	185	185
80	180	200	200
100	190	220	220
125	200	250	250
150	210	285	285
200	230	340	340
250	250	400	400
300	270	455	455
350	290	505	520
400	310	565	580
450	330	615	640
500	350	670	715
600	390	780	840
700	430	895	910
800	470	1015	1025
900	510	1115	1125
1000	550	1230	1255
1200	630	1455	1485
1400	710	1675	1685
1600	790	1915	1930
1800	870	2115	2130
2000	950	2325	2345
For other sizes not mentioned above, please contact us. We have right to change the data without further notice.

Unique design:
Compact design:one-piece bonnet,non-rising stem.
"O" ring design for stem back sealing leads to maintenance free.
Excellent Corrosion Protection:
Inside epoxy resin coating or vitreous enamel(upon request).
outside epoxy resin coating.. Socket head cap bolts,sealed with glue on the top.
Reliable Health Nature:
Epoxy resin coating complies with the WARS certification
Wedge bonded with rubber for the health inspection.
Trims are made of stainless steel or bronze
Scope Of Application:
Potable water supply.industrial fields. Packing&Delivery
Packing: Usually packed by plywood crates or pallets. For correct Transporting operation, please also refer to: It is important to apply a few simple chocking and lashing rules to minimize the risks of incident during transport.
Vehicles must be suitable for the transport, loading and uploading of ductile iron pipes and fittings. Apply the following basic rules:
-Prevent any contact between the valve elements and metal surfaces (to avoid damaging the coatings). -Make sure the valves do not come into direct contact with the trailer floor (store the pipes horizontally by placing two parallel rows of good quality wooden planks fastened to the floor).
-Make sure that the valves can be loaded and unloaded in complete safety.
-Make sure that the load is secure during transport.
-Always use vehicles or trailers with sufficiently large stanchions fitted on each side of the floor to stabilize the load.
-Lash the load with textile straps and lever tensioners.
Quality Control
SYI Pipeline regards quality as an essential and integral part of our business success. Until now, we are ISO9001:2015 TUV, BSI Kitemarked, SGS, BV, FM certified, and UL, WRAS listed. We are the approved supplier to many worldwide known countries and authorities. Manufacturing "SYI" Brand products has evolved as a mark of quality! Company
SYI has continually invested in better technology and production facilities. More than 4,000 patterns are ready. We are capable to finish all the production processes from moulding, shot-blasting, machining, coating to packaging. We have over 100,000 m2 foundry land including: -10,000 m2 of the pattern, sand mixing, polishing, machining, hydraulic pressure, coating, packaging workshops; -4,000 m2 of three green sand moulding workshops and one resin sand moulding workshops; -3,000 m2 of automatic moulding machine line and epoxy coating line -professional laboratory -machining shop -and our own tooling shop Strict process and operating regulations together with perfect quality assurance system making every production step under control. All the products are subject to tests and inspections including composition analysis, metallographic examination, dimension & surface finish inspection, ring test, tensile test, hardness test, hydrostatic test, lining and coating test to be sure that the products meet the requirements of the standards. Since 2009, SYI Pipeline has developed from a pipes & fittings seller to a professional project solution provider, including the one stop service and solution from pipes, fittings, couplings & flanged adaptors, valves, fire hydrants, to water meters and accessories.
One-Stop Service 1. Sales Service
40 staff covering the pre-sales, on-sales, after-sales services.
80% have over 5 years working experiences.
100% of our sales can communicate in English fluently.
We promise to respond your questions within 24 hours.
2. Customer Service
For your every single PO, we have 1 Customer Service person to independently follow up.
Professional Logistic Department
Product Installation Instructions are available.
Government Audits
Exhibition

---
