Jaten Vertical Optical Profile Projector for Bolts Threads Measurements Jtdvb16

Product Description

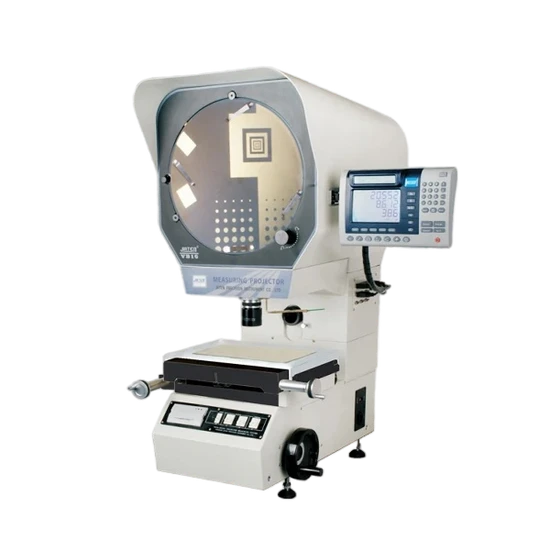

JATEN JTDVB16-2015 Vertical Optical Profile Projector for Bolts Threads Measurements

Product Description The JATEN VB16-2515 Vertical Optical Profile Projector is a precision measuring instrument designed for accurate 2D dimensional analysis of mechanical components. It provides a high-quality optical system with clear imaging and accurate magnification, making it an essential tool in industries requiring precise measurement and quality inspection.

Model		JTDVB16-2515
Workbench	Metal Stage Size	408*308mm
	Glass Stage Size	305*197mm
	X*Y*Z-axis Travel	250*150*100(focusing)
	Resolution	X,Y-axis: 0.0005mm
	Accuracy	≤3+L/200(um)
Screen	Diameter	Ø425mm,Effective Range ≥ Ø400(with "* " Reticle)
	Rotary Range	0~360° ; Resolution Rotary Indicator: 1' or 0.01°
Video Magnification		10X,20X,50X,100X
Power supply		AC110V/60Hz, AC220V/50Hz
Cooling		Forced cold air(three-axial flow fan)
Lighting		both 24V/150W Halogen lamps
Dimension(D×W×H)		868*556*1163mm
Net Weight		260 kg

Key Features

High-Quality Optical System: Provides clear imaging and accurate magnification for precise measurements.
Low Profile Measurement Error: ≤ 0.06% in transmission illumination.
Dual Measurement Modes: Can handle coordinate measurement and profile projection with minimal deviation.
Advanced Digital Readout (DP300): Supports English and Chinese, allowing seamless 2D measurement and data gathering of points, lines, circles, angles, and distances.
Flexible Output Options: Measurement data can be exported to a printer or computer for further analysis.
Interchangeable Measurement Units: Switch between mm and inches with ease.

Applications

The JATEN VB16 Vertical Optical Profile Projector is widely used for the inspection of surface contours and outlines of complex workpieces such as:
Mechanical Parts (length, angle, contour, and surface shape)
Cams & Screw Threads
Gears & Milling Cutters
Precision Engineering Components
Company Profile Founded in 2005, Dongguan Jaten Instrument Co., Ltd is a leading manufacturer specializing in precision measurement and automation solutions. Our core expertise lies in 2D dimensional testing through advanced vision measuring systems, ranging from manual to fully automated models, with optional probe and laser extensions for basic 3D dimensional measurements.

Our Products & Solutions
• Vision Measuring Machines - High-precision 2D measurement solutions for industrial applications.
• Measuring Projectors - Optical measurement tools ideal for precision inspection.
• Automation Solutions - Tailor-made automation systems to improve manufacturing efficiency.

Industries We Serve

Our equipment is widely used in mold manufacturing, injection molding, automotive parts, watch components, stamping parts, wire & cable industry, and educational & research institutions.

Our Commitment

At Jaten, we are dedicated to delivering high-quality, accurate, and reliable measurement solutions to meet the evolving needs of modern manufacturing. With a strong focus on technological innovation and customer satisfaction, we continue to expand our global presence, serving renowned clients like TCL, Lite-On, BYD, Foxconn Mexico.

---
