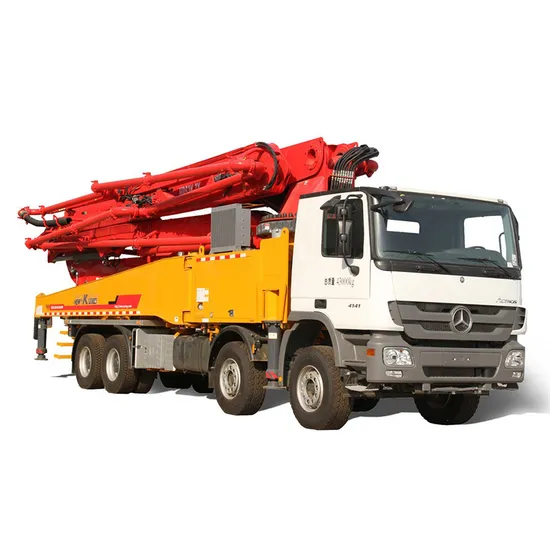

52m Hb52K China New Diesel Mini Small Truck Mounted Concrete Pump Truck for Sale

Product Description

52m HB52K China New Diesel Mini Small Truck Mounted Concrete Pump Truck for Sale
Feature
HB52K Truck-Mounted Concrete Boom Pumps
1. V7 series truck-mounted concrete pump is new generation equipment which is developed by SCHWING German technology.
2. It is highly reliable and durable with seven technical highlights. More advanced boom structure technology, More efficient rock valve pumping technology, Steadier stabilizer structure technology, Steadier reversing buffering technology, more reliable fully-hydraulic reversing technology, Ultra-low pressure loss hydraulic system technology, safer and smarter electrical control system. Parameters

Description	Unit			Parameter value
Outline dimension	mm			13120×2500×3990
Overall weight	kg			34000
Chassis	Model			ZZ5347V484MD1
	Max. speed	km/h		90
	Max. grade-ability	%		40
	Wheelbase	mm		4800+1400
	Tire			315/80R22.5
Engine	Model			MC11.40-40
	Max. power		kW	297
	Max. torque		N·m/(r/min)	1900/1000~1400
	Displacement		L	10.518
	Emission standard			Euro IV
Pumping system	Theoretical output		m3/h	170
	Concrete pumping pressure		MPa	8
	Theoretical pumping times		Time/min	23~26
	Delivery cylinder diameter ×stroke		mm	φ260×2000
	Max. diameter of pumping concrete		mm	≤40
	Filling height		mm	1580
	Concrete slump range		cm	8~23
Placing boom	Reach height		m	51.5
	Reach depth		m	36.1
	Slewingradius		m	46
	Slewing angle		°	±270
	Unfolding angle of the 1st section		°	90
	Unfolding angle of the 2nd section		°	180
	Unfolding angle of the 3rd section		°	180
	Unfolding angle of the 4th section		°	240
	Unfolding angle of the 5th section		°	210
	Unfolding angle of the 6th section		°	120
Stabilizer span	Longitudinal span of stabilizer		mm	9540
	Transverse span of front stabilizer		mm	9150
	Transverse span of rear stabilizer		mm	10060
Others	Lubrication method			Automatic lubrication
	Control method			Manual/remote control
	Volume of water box		L	1200
