China Supplier Two Stage Pusher Centrifuge, Salt Pusher Centrifuge

Product Description

Product Description

Introduction :HR (P) Type Two Stage Pusher Centrifuge is kind of two stage piston push and continuous operating filtration centrifuge , it can complete all the operation of feeding, separating ,drying and discharging at full speed .

It has the advantages of large production capacity, good solid phase dehydration, low energy consumption and light weight.
Application :
Widely used in chemical industry, chemical fertilizer, salt, alkali, pharmaceutical, food, light industry and other industries.
Typical application materials include: sodium chloride, potassium chloride, ammonium chloride, potassium sulfate, sodium sulfate, mirabilite, ammonium sulfate, potassium carbonate, sodium hydroxide, nitrocellulose, cellulose acetate, potassium dihydrogen phosphate, urotropine, and other sulfates, carbonates, nitrates, phosphates, etc.
Working Condition: Feeding solid content ≥ 30% , Solid particle : 0.02-5 mm

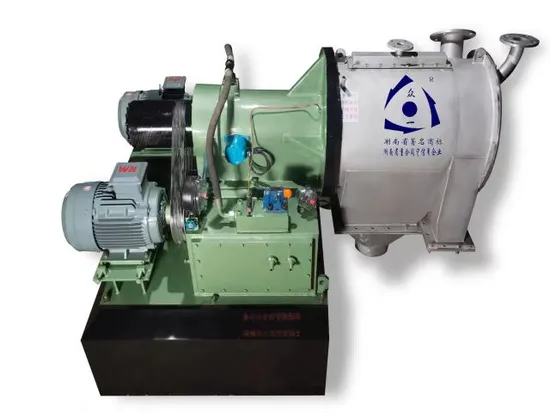

Detailed Photos
Product Parameters

Model		HR230-N (P23)	HR400-N (P40)	HR500-N (P50)	HR630-N (P60)	HR850-N (P85)	HRZ1000-N (P100)
Basket	Diameter (mm)	180/230	290/400	438/500	560/630	740/828	920/1000
	Filter length (mm)	120+120	180+180	180+180	240+240	300+300	310+350
	Max.Loading (kg)	10	25	40	80	160	300
	Speed (r/min)	1600-2600	1400-2500	1200-2000	1000-1800	800-1600	850-950
	G.force (Fr)	702/1014	440-1180	400-1120	350-1140	290-1150	405-505
	Pushing stroke mm	30	50	50	50	50	70
	Pushing frequency	0-90	3-80	4-80	40-108	30-108	30-80
Main motor(Kw)		3	7.5-15	30-55	45-75	55-90	90-110
Oil pump motor(Kw)		3	7.5	22	30	45	55
Feed capacity m3/h		1-5	1-9	1-20	14-40	12-65	15-75
Output capacity(T/h) (Best condition)		0.2-1.5 Salt	2-5 Ammonium sulphate	10-12 Salt	≥15 Salt	≥25 Salt	≥35 Sodium bicarbonate
Net weight(Kg)		800	1945	3590	3950	6000	11500
Dimension(mm)L×W×H		1650x1250x750	2460×1240×1610	3578×1480×1677	3190×1460×1280	3610×2160×1810	3990×2000×1940
