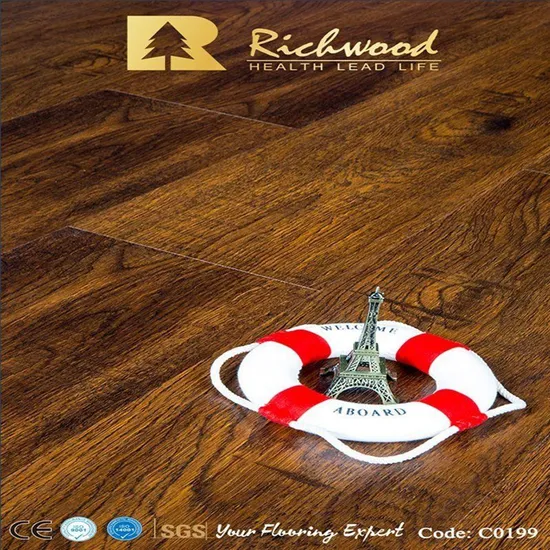

8.3mm E0 HDF AC4 Classic Hickory V-Grooved Engineered Wood Grain Laminate Flooring

Product Description

Product Overview
Since laminate flooring appeared in the last century, this classic collection is popularly accepted all over the world .The Classic Collection sets a warm and nature tone. Single strip, 2-strip and 3-strip designs give users a wide selection of wood types and tints.
Dimension

Length	2280mm	1218mm	Construction	High Density Fiberboard (HDF)
	810mm	606mm
Width	240mm	197mm	Variable Length	Yes
	165mm	145mm
	126mm	101mm
Thickness	7mm	8mm	Variable Width	Yes
	10mm	11mm
	12mm

More Details

Color Code	C0199		Surface Texture	Embossed,Crystal,Pearl,Realwood
Color/Finish Family	Yellowish Brown		Gloss Level	Medium-Gloss,Low-Gloss(Matte)
Shade	Dark		Edge Type	Square Edge, Micro Bevel
Species	Oak		AC Rating	AC3
				AC4
Style	Wood Look		Exclusive	No
Plank Vishal	1-Strip		Underpad Attached	Depend on buyers
Pattern Repeat Frequency	W: 240mm	every 5 planks	Standard	EN13329
	W: 196mm	every 6 planks
	W: 165mm	every 7 planks
	W: 145mm	every 8 planks		GB/T18102-2007
	W: 126mm	every 9 planks
	W: 101mm	every 11 planks

Installation

Indoor/ Outdoor	Indoor	Installation	Glueless, Click-lock system
Recommanded Usage	Residential	Subfloor Type	Plywood or Concrete
	Commercial
Installation Level	Above/On/Below	Installation Method	Float
Underlayment Required	Yes	For Use on Walls	Yes
Country of Origin	P.R.CHINA	Warranty	100% Quality Guarantee

Quality Guarantee
• ISO9001 Quality Control System
• Professional internal product and QC team
• Pre-inspection for all raw materials
• Mid-inspection during production from every process
• Final inspection by CIQ's laboratory or ourselves
• The customer's inspection is also acceptable.
• If claims happen, what we need are pictures of claimed products, order information. We will analyze the problem and work out a final solution with customers.

Technical Data for Richwood laminate flooring
Characteristics	Test Standard	Unit	Standard or Rating
HDF density	GB/T18102-2007	KG/M3	≥850
Class 23	EN13329		general residential use in living rooms and dining rooms
Class 31	EN13329		more varied locations, such as small offices and other light commercial location
Class 32	EN13329		higher traffic commercial areas such as boutiques, busier offices, and restaurant
Abrasion resistance	EN13329,Annex E	R	AC3≥2000
			AC4≥4000
Formaldehyde E1	EN717-1	MG/M3	0.124
Length Tolerance	EN13329, Annex A	MM	≤0.5
Width Tolerance		MM	≤0.2
Thickness Tolerance		MM	≤0.5
Squareness of the element		MM	≤0.2
Straightness of the surface layer		MM/M	≤0.3
Flatness of the element		%	f w, concave ≤ 0,15 % f l, concave ≤ 0,50 %
Openings between elements(mm)	EN13329, Annex B	MM	average ≤ 0.15
			max ≤ 0.20
Height difference between elements(mm)		MM	average ≤ 0.10
			max ≤ 0.15
Dimensional variations after changes in relative humidity	EN13329,Annex C	MM	≤0.9mm
Light fastness	EN ISO105-B02		Blue wool scale ≥6
	EN 20105-A02		Gery scale ≥4
Static indentation	EN433	MM	No visible change
Surface soundness	EN13329,Annex D	N/MM2	≥100
Impact Resistance	EN13329,Annex F	MM	IC2
Resistance to staining	EN438		5, No visible changes
Resistance to cigarette burns	EN438		4
Effect of a furniture leg	EN424		No visible changes
Effect of a castor chair	EN425		No visible changes
Thickness Swelling rate(%)	EN13329,Annex G	%	≤18
Slip resistance	EN14041		DS

Production Process
Equipment
1.Impregnated paper
2.Hot pressing
3.Cutting
4.Profiling
5.V bevel painting
6.Wax coating
7.Eva silence pad
8.Packing
Package
Advantage
Better Quality, Increasing you sales
Our factory is committed to give you the quality you deserve. Using ISO9001 standard& German Technology, we invested a lot in Research & Development. We have a fully equipped lab for quality testing.
• ISO9001 Quality Control System
• Professional internal product and QC team Pre-inspection for all raw materials Mid-inspection during production from every process Final inspection by CIQ's laboratory or ourselves The customer's inspection is also acceptable.
• Third Party Laboratory support: SGS,Intertek...
• Efficient Claim Settlement If claims happen, what we need are pictures of claimed products, order information. We will analyze the problem and work out a final solution with customers within 5working days.
Better Service, Saving your cost
• Order Weekly Update
• On-time delivery
• Free sample support
• Free new products samples into container
• Make professional & Special Samples, displays according to customer's requirement
• Develop products (design, size, surface and so on) based on customer's requirement
Better Team, Solving your worries
Positive attitude, professional knowledge, timely communication, responsible action. We are always here for you! • Professional Product Technology Team
• 10 Years Quality Control & Inspection Team
• On-time Communication within 24hours
• Always keep Promise
• Always ready to be your strong backing
Excellent "quality and service" perfectly solve worries for "worldwide customers";
Successful "cooperation and win-win" fully build a strong backing for "business partners"!
Richwood Laminate Flooring,Beyond Your Imagination!

---
